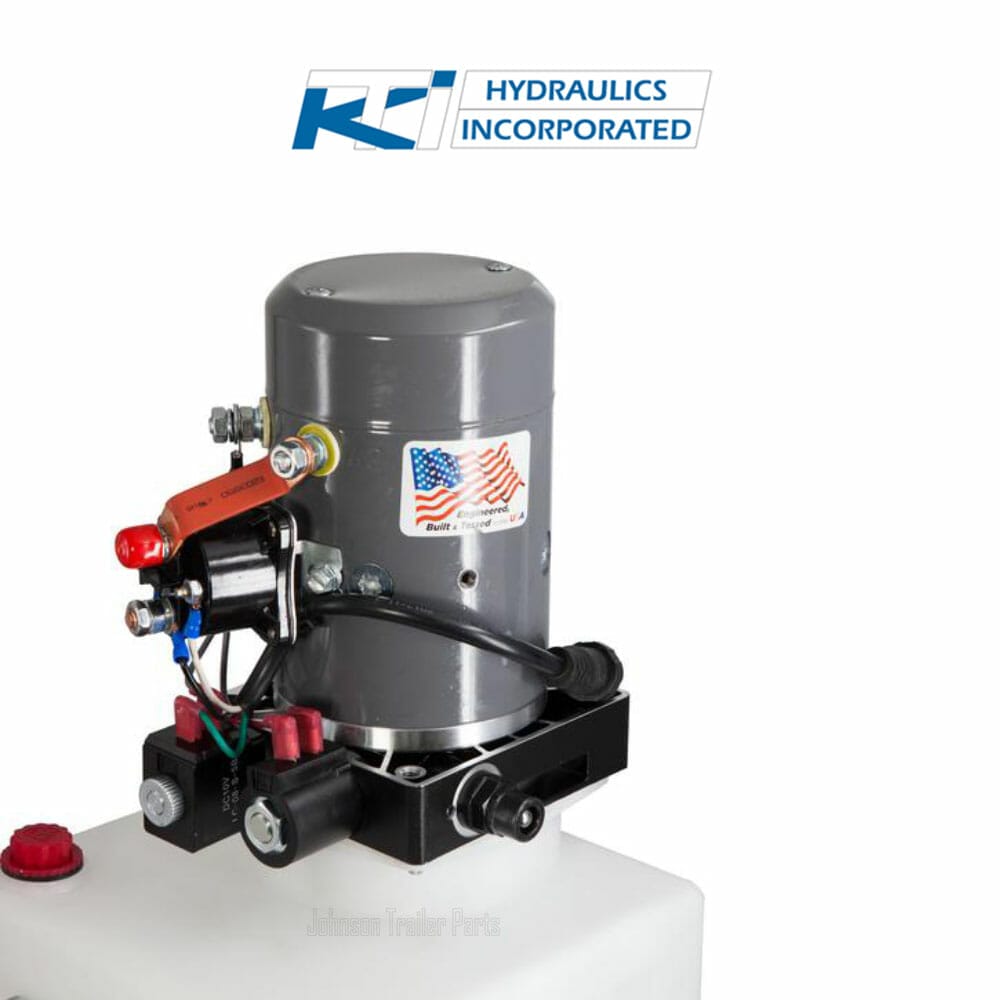

13 Quart 12V KTI Double Acting Hydraulic Pump

13 Quart 12V KTI Double Acting Hydraulic Pump

At Johnson Trailer Parts, we offer the 13 Quart 12V KTI Double Acting Hydraulic Pump as a dependable hydraulic power unit for dump trailers, hydraulic trailer jacks, tilt deck trailers, dump bodies, lift tables, and other 12V hydraulic applications. Built for power-up and power-down operation, this pump is designed for systems that require controlled hydraulic movement in both directions.

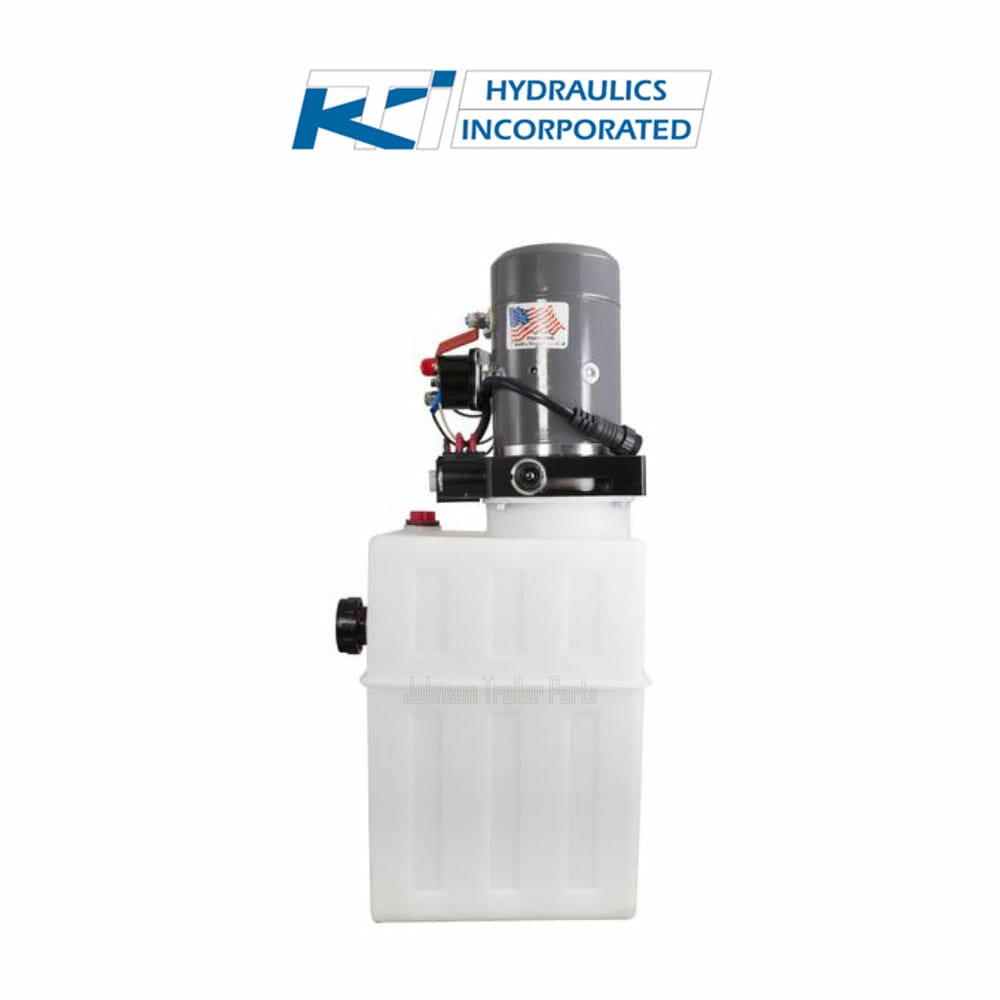

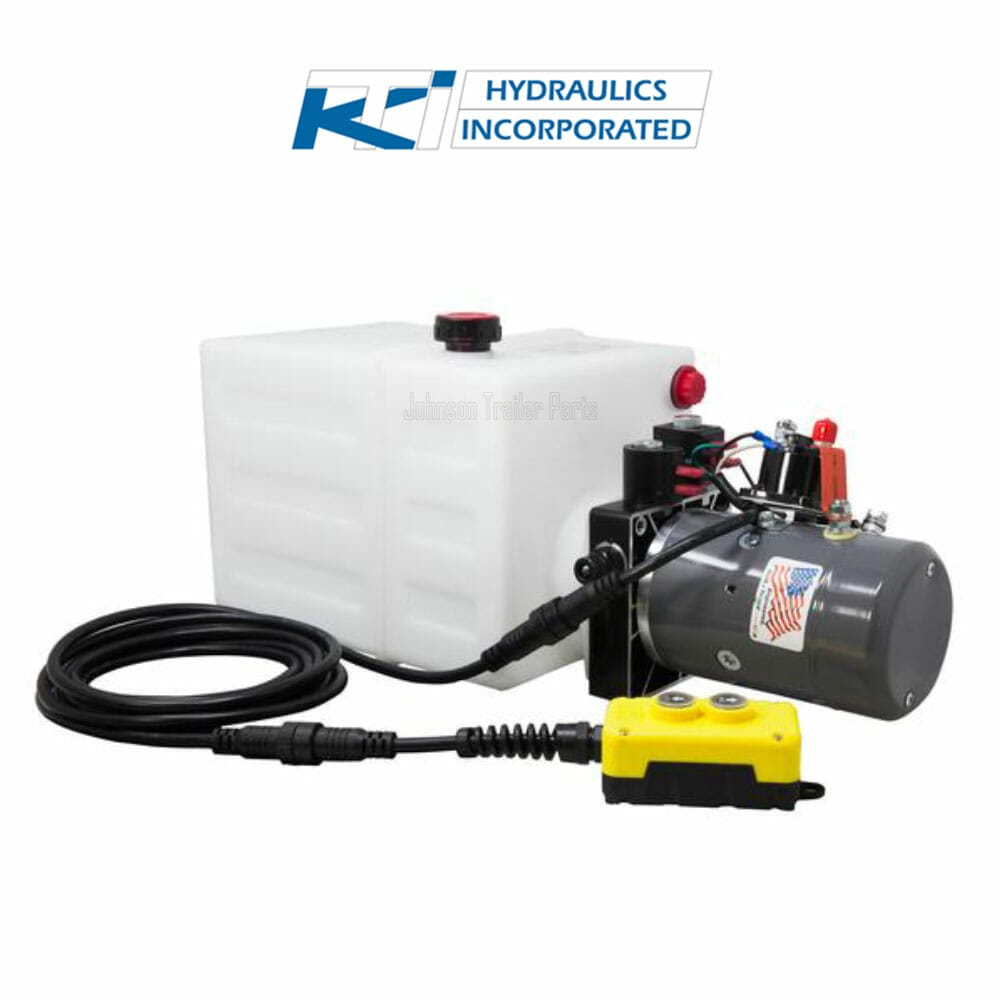

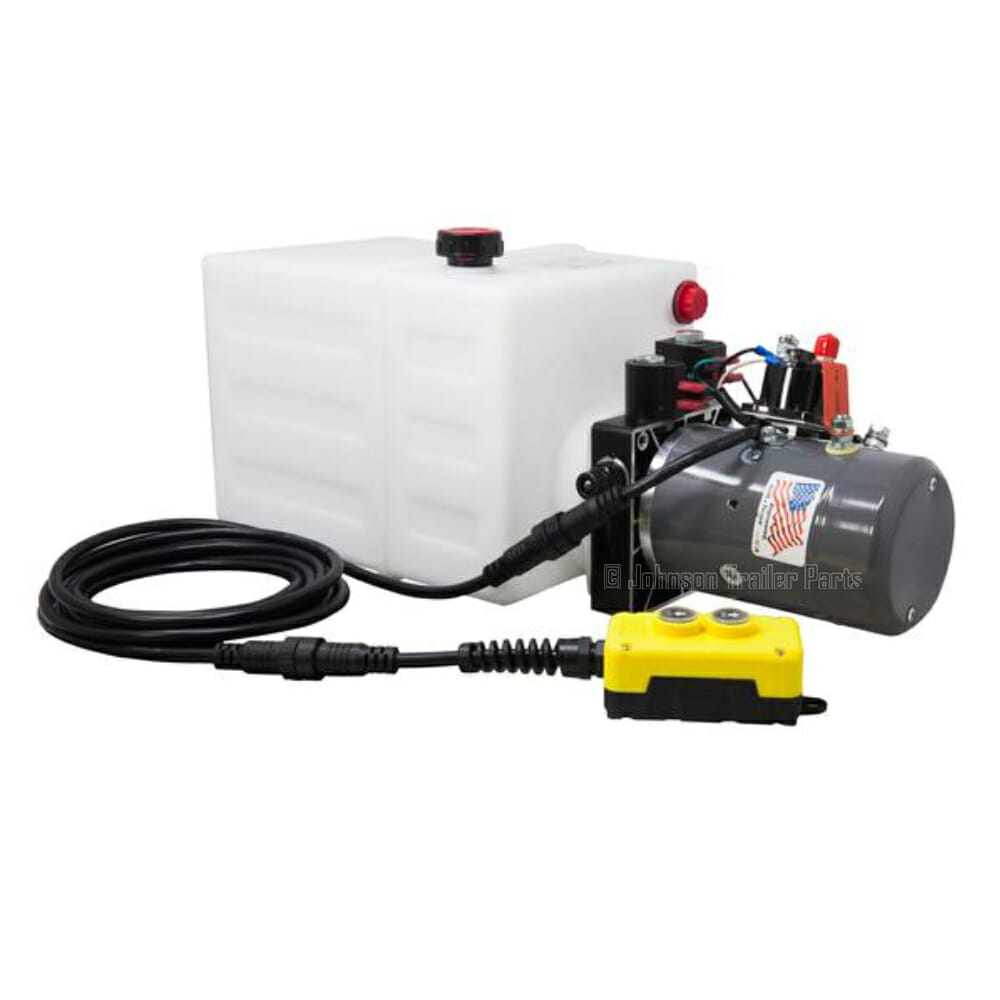

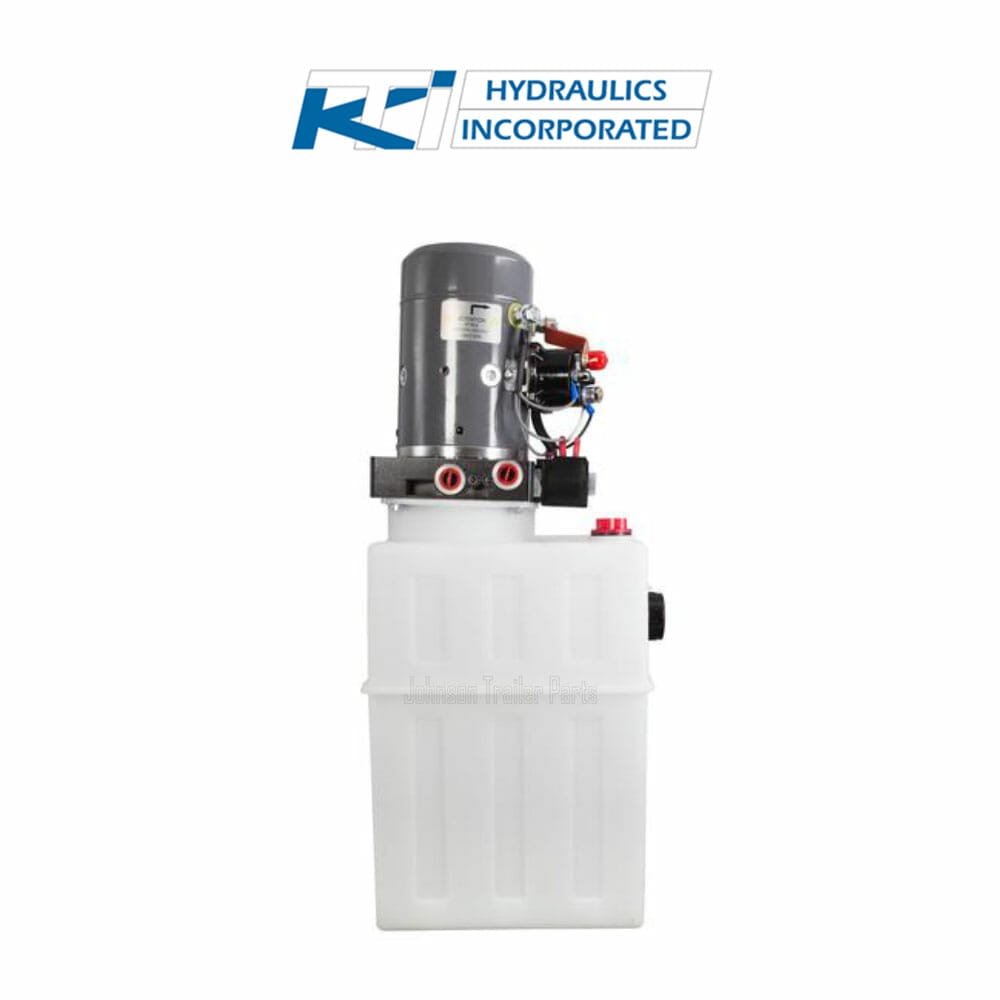

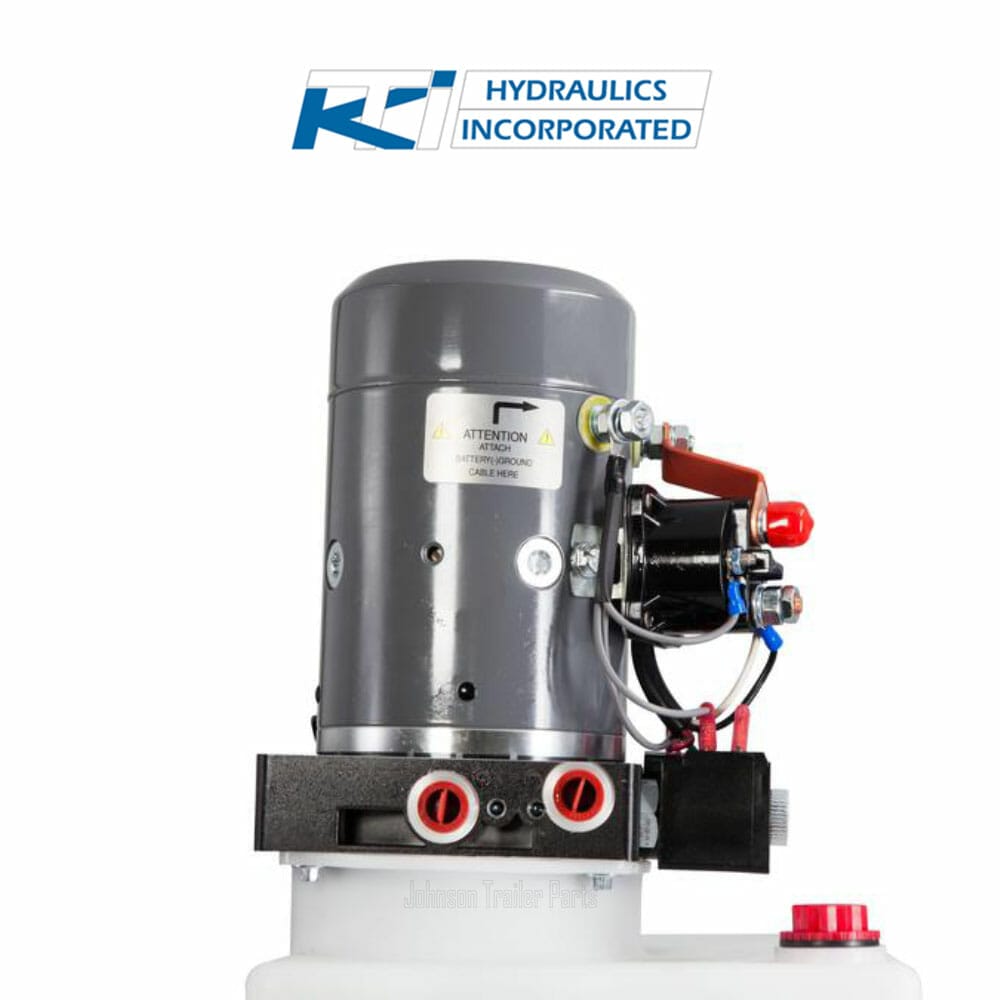

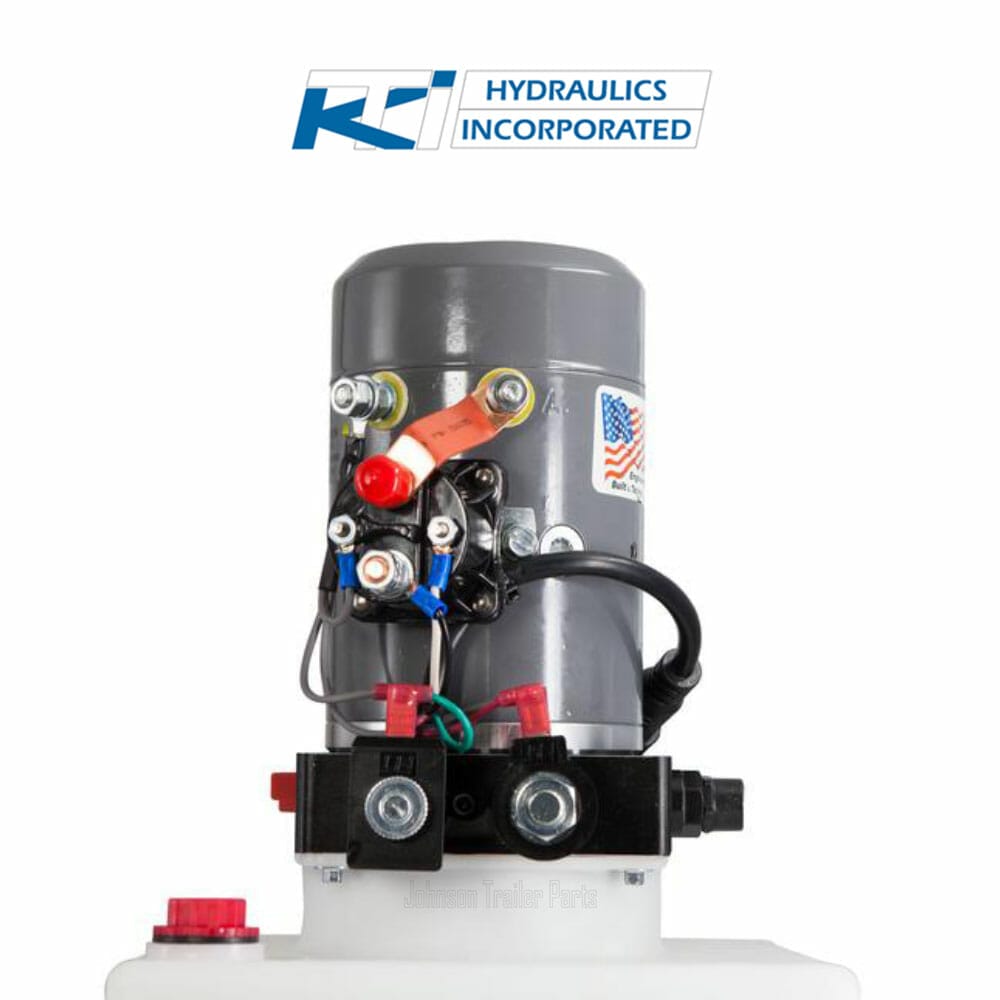

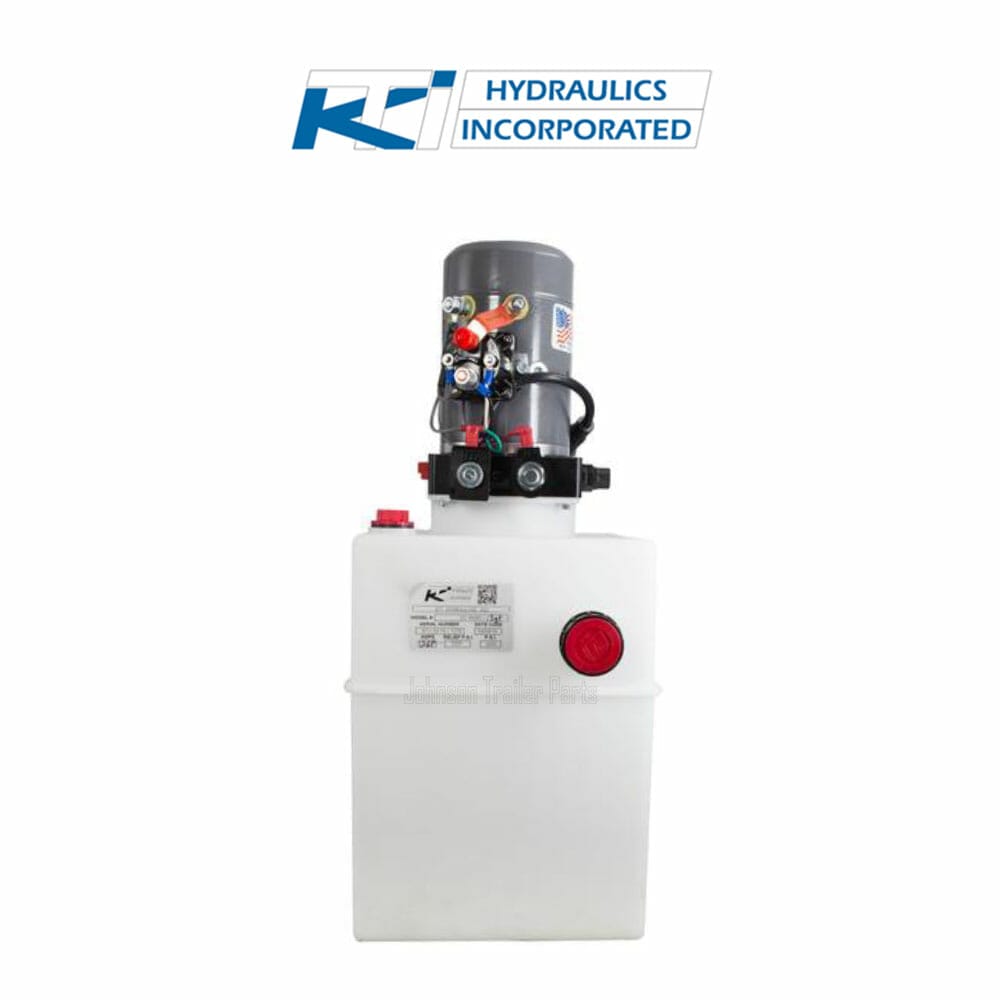

This 13 quart KTI hydraulic power unit includes a translucent reservoir for easy fluid level monitoring, a 12V DC electric motor, 2.0 GPM flow rate, SAE #6 ports, and a 15 ft handheld pendant with removable cord. The pump is engineered, assembled, and tested in the USA and backed by a 2-year manufacturer warranty.

What’s Included

• 13 quart 12V KTI double acting hydraulic pump
• 15 ft handheld remote pendant with removable cord
• Start solenoid
• 13 quart translucent hydraulic reservoir

Key Features

• Double Acting Operation: Designed for power-up and power-down hydraulic applications where controlled movement is needed in both directions.
• 13 Quart Translucent Reservoir: Provides large hydraulic fluid capacity while allowing easy fluid level monitoring during installation, service, and routine maintenance.
• 12V DC Hydraulic Power Unit: Built for dump trailers, hydraulic trailer jacks, tilt decks, dump bodies, lift tables, and other mobile hydraulic systems.
• 2.0 GPM Flow Rate: Provides dependable hydraulic flow for smooth lifting and lowering performance.
• High Pressure Output: Features a 3,200 PSI max relief setting on the A port and a 1,500 PSI max relief setting on the B port.
• SAE #6 Ports: Designed for common trailer hydraulic hose and fitting connections.
• Horizontal Mount Design: Built for common trailer and mobile hydraulic power unit installations.
• 15 ft Handheld Pendant: Includes a corded remote for convenient operation from a safe working distance.
• Built and Tested in the USA: KTI hydraulic power units are inspected and tested to meet strict performance standards.

Pump Specifications

• Reservoir Capacity: 13 quart translucent reservoir
• Motor: 12V DC electric motor
• Operation: Double acting — power-up / power-down
• Flow Rate: 2.0 GPM
• A Port Relief Setting: 3,200 PSI max
• B Port Relief Setting: 1,500 PSI max
• Ports: SAE #6
• Mounting Style: Horizontal mount
• Remote: Handheld pendant with 15 ft removable cord
• Includes: Start solenoid
• Warranty: 2-year manufacturer warranty

Common Applications

• Dump trailers and tipper trailers
• Hydraulic trailer jacks
• Tilt deck trailer kits
• Dump bodies
• Lift tables
• Hydraulic presses
• Scissor lifts
• Man lifts
• Leveling systems
• Other 12V double acting hydraulic systems

Why We Trust KTI Hydraulic Pumps

We trust KTI hydraulic pumps for dump trailer and mobile hydraulic applications because they are widely used by trailer builders, repair shops, contractors, and equipment owners across the United States. KTI hydraulic power units are known for dependable performance, low noise operation, and long service life in demanding trailer and hydraulic applications.

Each KTI hydraulic pump is fully inspected and tested to meet strict performance specifications, helping ensure reliable operation right out of the box.

Resources & Documentation

• ⇓ Download KTI Double Acting Pump Installation Manual
• ⇓ Download KTI Hydraulic Pump Bleed Cycle Guide
• ⇓ Download KTI Recommended Hydraulic Oils Guide
• ⇓ Download KTI DC Power Unit Troubleshooting Guide

KTI documentation is provided for customer reference. For additional manufacturer support documents and the latest KTI updates, visit the KTI Hydraulics Support Page.

Engineered, Assembled, and Tested in the USA

We recommend this 13 quart KTI double acting hydraulic pump for customers who need a dependable 12V hydraulic power unit with controlled power-up and power-down operation. The larger 13 quart reservoir makes it a practical option for trailer hydraulic systems and equipment setups that require additional hydraulic fluid capacity.
