Plastic 5 Lug Bolt Pattern Template

Plastic 5 Lug Bolt Pattern Template

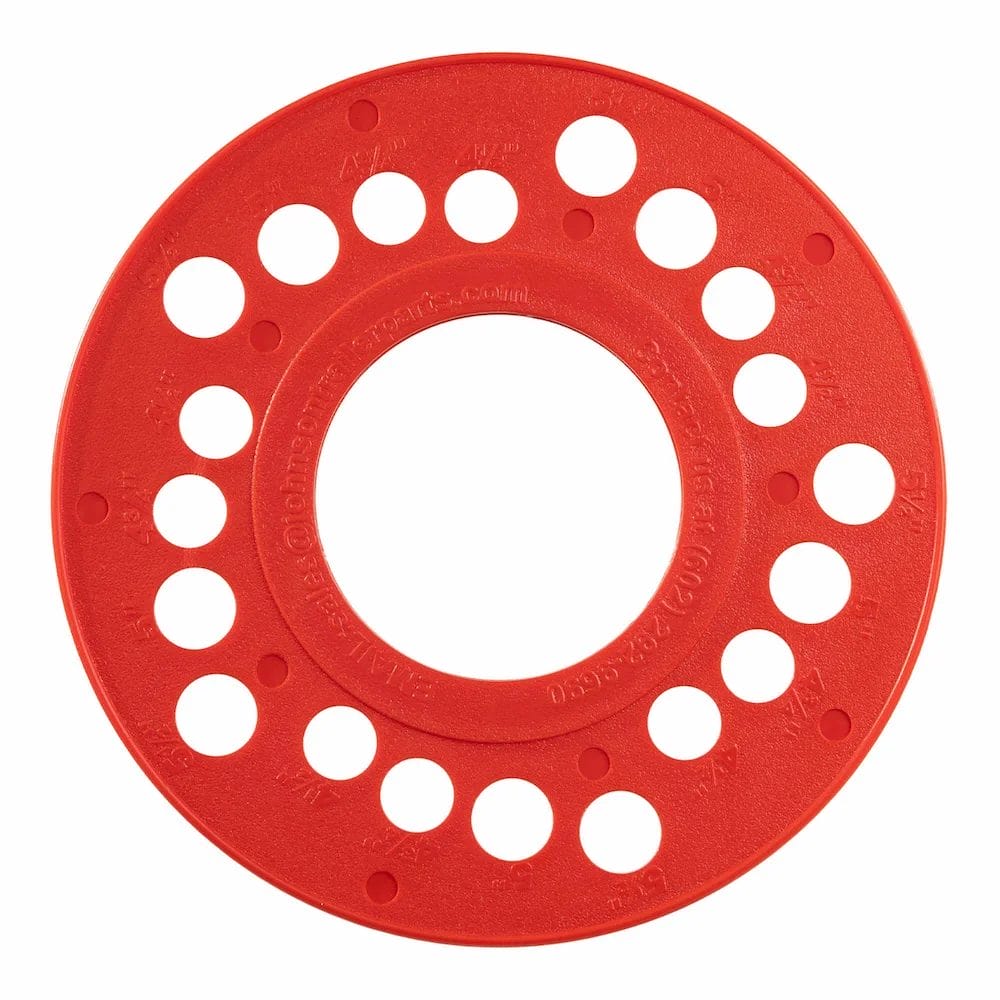

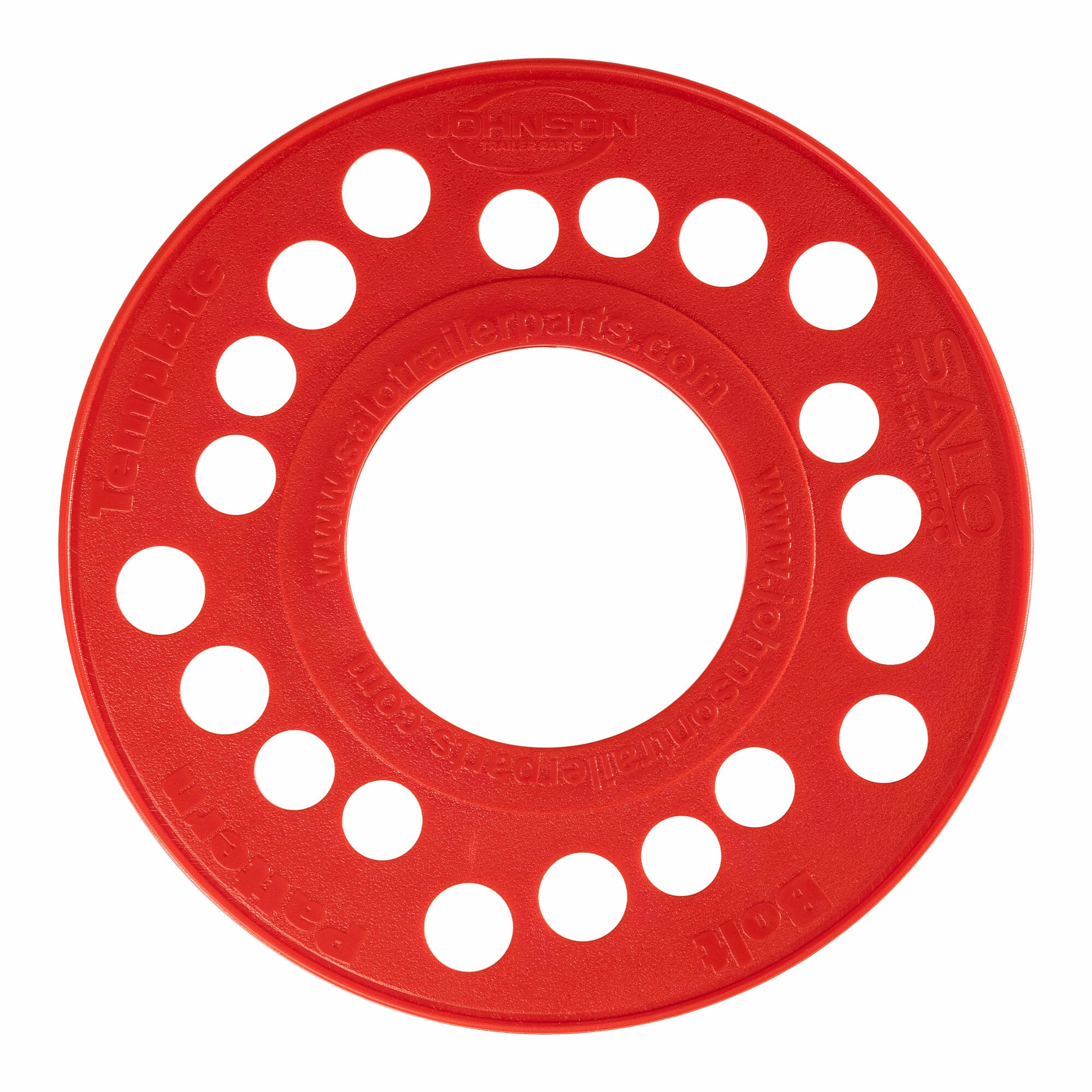

Quickly identify common 5 lug trailer wheel bolt patterns with this durable plastic bolt pattern template designed for trailer axle replacement, wheel fitment verification, and trailer repair applications.

This easy-to-use measuring tool helps identify popular 5 lug bolt patterns commonly found on utility trailers, cargo trailers, boat trailers, landscape trailers, and equipment trailers.

Whether you’re replacing a trailer axle, ordering new trailer wheels, verifying hub compatibility, or checking customer trailers in a shop environment, this template simplifies bolt pattern identification and helps reduce measuring errors.

The lightweight plastic construction is durable, reusable, and compact enough to keep in a toolbox, service truck, trailer shop, or parts counter area.

Free shipping in the lower 48 states.

---

Supported 5 Lug Bolt Patterns

• 5 on 4-1/2″
• 5 on 4-3/4″
• 5 on 5″
• 5 on 5-1/2″

This template supports several of the most common 5 lug wheel bolt patterns used on trailer wheels, hubs, brake drums, and light-duty automotive applications.

---

How It Works

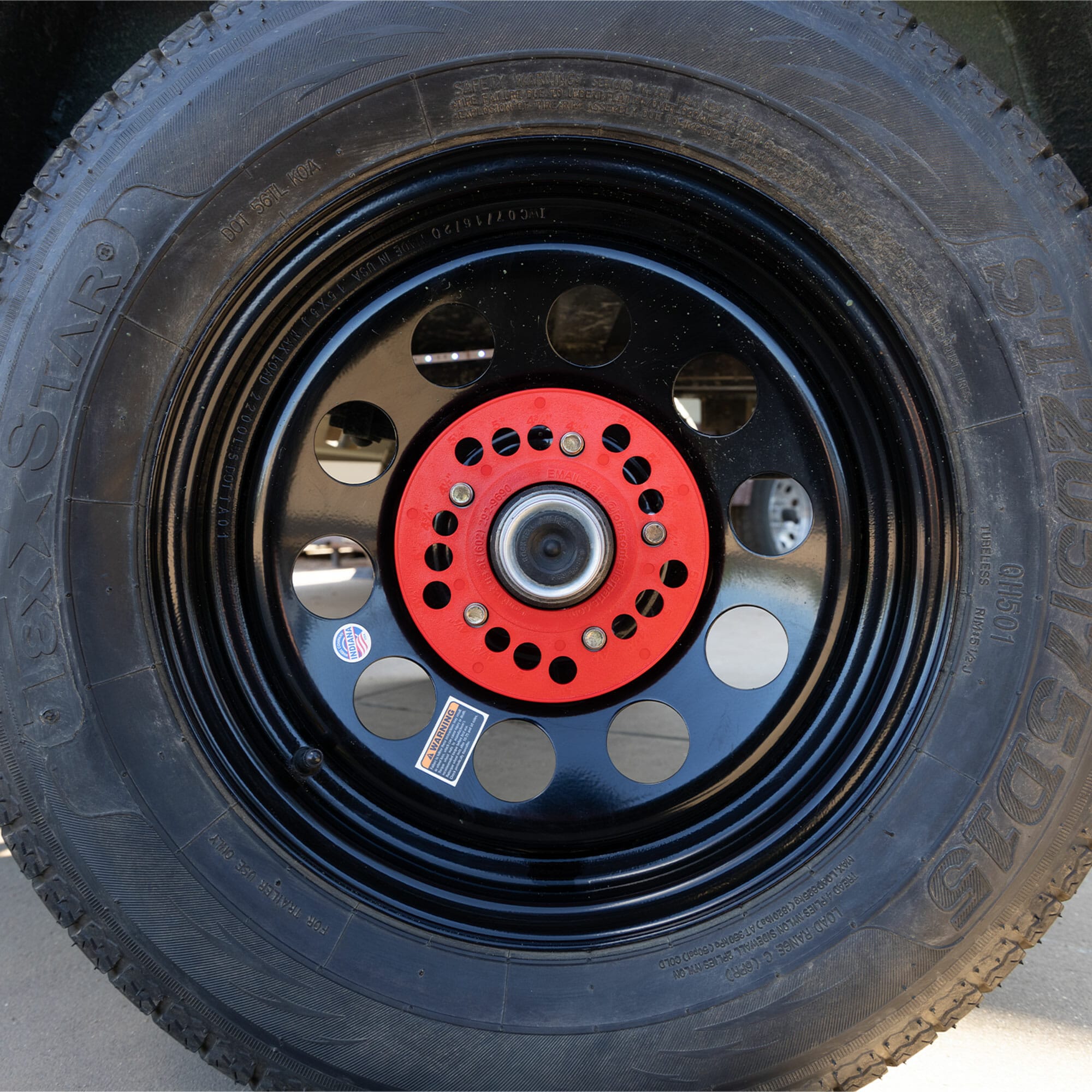

Simply align the template with the wheel studs or lug holes on your trailer wheel or hub to quickly determine the correct bolt pattern size.

This tool eliminates guesswork when ordering replacement trailer wheels, hubs, brake drums, idler hubs, or complete trailer axle kits.

---

Key Features

• Quick Bolt Pattern Identification: Helps identify common 5 lug trailer wheel bolt patterns accurately and efficiently.
• Durable Plastic Construction: Lightweight reusable design that is easy to carry and store.
• Easy to Use: Simply place the template over wheel studs or bolt holes for fast pattern verification.
• Helps Prevent Ordering Errors: Reduces the risk of purchasing incorrect trailer wheels or hubs.
• Great for Shops & DIY Use: Useful for trailer repair shops, axle installations, wheel replacements, and trailer maintenance.

---

Common Applications

• Trailer axle replacement
• Trailer wheel replacement
• Trailer hub identification
• Trailer brake drum replacement
• Utility trailer maintenance
• Cargo trailer repair
• Boat trailer wheel verification
• Trailer parts counter use

---

How to Measure a 5 Lug Trailer Wheel Bolt Pattern

Watch this quick video to learn how to properly identify common 5 lug trailer wheel bolt patterns for trailer wheels, hubs, brake drums, and axle replacements.

---

Questions?

Need help identifying your trailer wheel bolt pattern or selecting the correct trailer axle and wheel setup? Contact Johnson Trailer Parts for assistance.

Call (602) 292-9690,
email sales@johnsontrailerparts.com,
or contact us through our website.
