7′ x 14′ Dump Trailer Plans – 14,000 lb GVWR – DT714-14J


Build Your Own 7′ × 14′ Hydraulic Dump Trailer

The 7′ × 14′ Dump Trailer Plans include professionally engineered drawings, step-by-step instructions, material lists, engineering considerations, and multiple configuration options for building a heavy-duty tandem-axle hydraulic dump trailer with a maximum 14,000 lb Gross Vehicle Weight Rating (GVWR).

Designed around the Dexter PH520 Hydraulic Scissor Hoist, these plans include straight or drop axle options, double-eye or slipper leaf spring suspension, optional loading ramps, tie-down options, front rail configurations, hydraulic equipment storage, and other builder-friendly features.

Available as an instant PDF download or a printed paper copy. A matching DT714-14J Trailer Parts Kit is available separately.

Free shipping on printed plans within the lower 48 states.

Plan Model: DT714-14J

Price range: $45.00 through $49.99

Product Overview

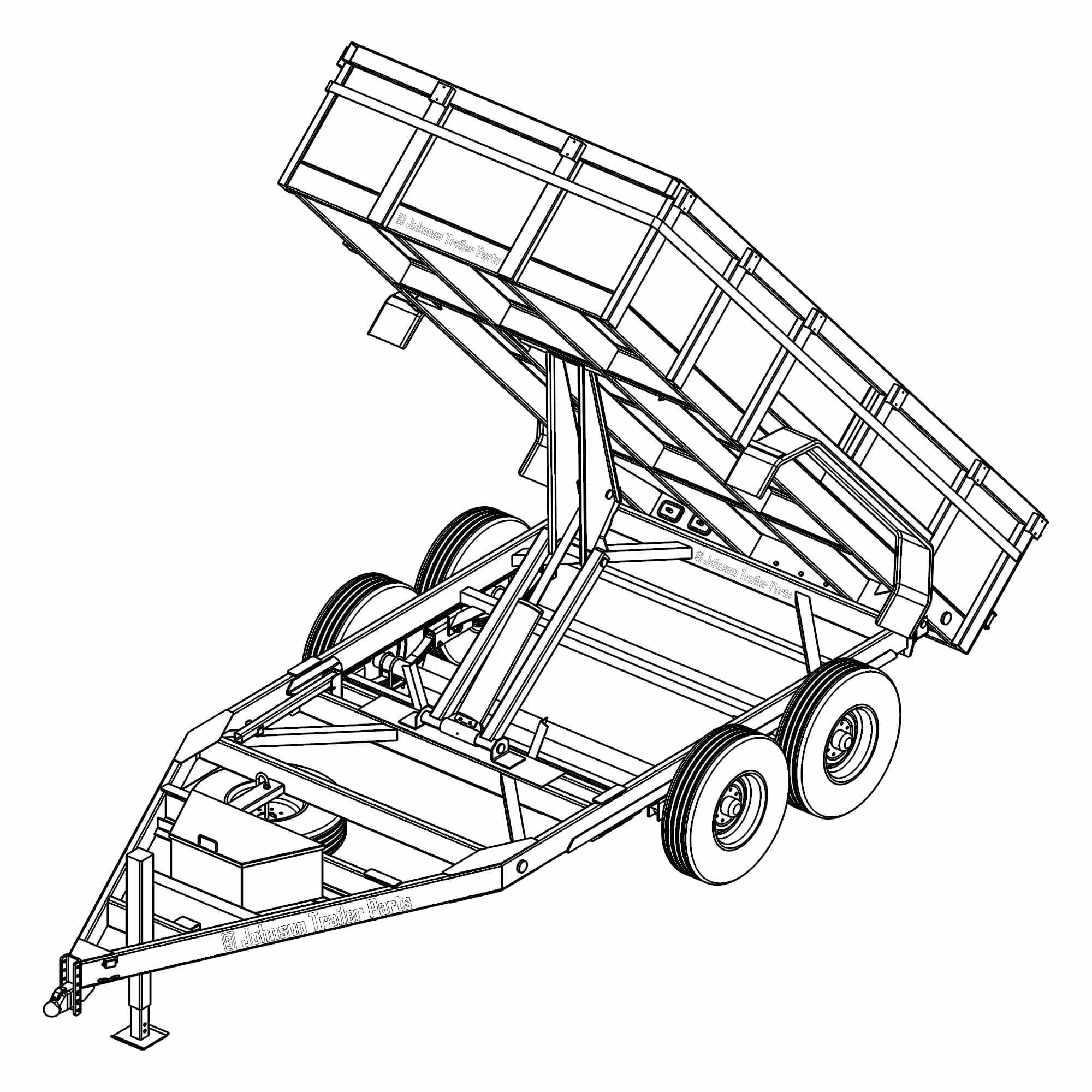

Build your own 7′ × 14′ hydraulic dump trailer with the professionally engineered DT714-14J Dump Trailer Plans. Designed for a maximum 14,000 lb Gross Vehicle Weight Rating (GVWR), this heavy-duty tandem-axle dump trailer delivers the strength, durability, and dumping performance needed for hauling equipment, gravel, dirt, demolition debris, landscaping materials, firewood, and other demanding loads.

The finished trailer features an approximate 86″ wide × 170″ long dump bed, an approximate overall width of 102″ at the fenders, and an approximate overall length of 20′ 2″. Builders can choose either straight or drop axles, along with double-eye or slipper leaf spring suspension, allowing the trailer to be configured for a variety of commercial, agricultural, and construction applications.

Engineered around the Dexter PH520 Hydraulic Scissor Hoist, the trailer provides smooth, dependable lifting performance with excellent leverage, stability, and reserve lifting capacity. The tandem-axle design offers increased payload capability while maintaining excellent towing characteristics for demanding jobsite use.


Complete Plan Package Includes

  • 47 pages of detailed engineering drawings
  • 22 pages of instructions, material lists, purchased components lists (BOM), engineering considerations, and illustrated building guidance
  • Complete Material Cut List
  • Purchased Components List (BOM)
  • Trailer Frame and Dump Bed Construction Details
  • Axle, Suspension, and Brake Installation Information
  • Dexter PH520 Hydraulic Scissor Hoist Mounting Details
  • Hydraulic Pump Box and Component Layout
  • Dump Bed Hinge and Structural Load Path Information
  • Optional Loading Ramp Design with Ramp Support and Storage Provisions
  • Illustrated Construction Techniques and Practical Building Guidance

Trailer components, steel, hydraulic equipment, running gear, wheels, tires, electrical components, and fabrication materials are NOT included with the plans. A matching DT714-14J Trailer Parts Kit is available separately.


Available Plan Formats

Instant PDF Download

Download your plans immediately after checkout and begin preparing your build right away. The downloadable ZIP file contains the complete engineering drawing package, instructions, material information, purchased components list, engineering considerations, and supporting documents.

Professionally Printed Paper Plans

Prefer working from paper in the shop? Choose our professionally printed plan package.

  • Engineering drawings printed on 11″ × 17″ sheets for improved readability
  • Instructions printed on standard 8.5″ × 11″ pages
  • Shipped flat — never rolled or folded
  • Free shipping within the lower 48 states

Important: Printed engineering drawings are provided for reference during construction and should never be scaled for dimensions. Always use the dimensions and measurements provided within the plans.


Heavy-Duty Hydraulic Dump Trailer Design

The DT714-14J is engineered for builders who need a commercial-grade hydraulic dump trailer capable of handling demanding work. Designed around a rugged tandem-axle chassis and the Dexter PH520 Hydraulic Scissor Hoist, this trailer combines exceptional structural strength, reliable lifting performance, and long-term durability for construction, landscaping, agriculture, equipment hauling, and heavy-duty property maintenance.

Unlike many dump trailers of similar size, these plans utilize the next-size-up hydraulic scissor hoist, providing improved lifting leverage, increased stability throughout the dumping cycle, and additional reserve lifting capacity when working with demanding loads. Extensive engineering and real-world testing have helped verify both the trailer’s structural integrity and hydraulic performance.

Proper fabrication, welding, material selection, hydraulic installation, component installation, and load placement remain essential to the safety, durability, and long-term performance of the completed trailer.


Customizable Trailer Options

  • Straight or Drop Axle Configuration
  • Double-Eye or Slipper Leaf Spring Suspension
  • Selectable Dump Bed Side Heights
  • Optional Loading Ramp Design
  • Ramp Support and Side Storage System
  • Tie-Down Anchor Options
  • Perimeter Tie-Down Rail
  • Short or Tall Front Rail Options
  • Hydraulic Tongue Jack Compatibility
  • Tow Vehicle Battery Charging or Solar Charging Options

Thinking about customizing these trailer plans? Read When Safe to Customize the Plans before making modifications to the original engineered design.


Matching Trailer Parts Kit

Complete your build with our matching DT714-14J 7′ × 14′ Dump Trailer Parts Kit. Designed specifically for these plans, the kit simplifies your build by grouping compatible major trailer and hydraulic components into one convenient package.

View the Matching DT714-14J Trailer Parts Kit


Professionally Engineered Plans

These trailer plans were professionally engineered by Synthesis Engineering Services. The engineering package evaluates the trailer frame, dump bed structure, hydraulic hoist mounting, suspension placement, tongue design, connection points, and load paths to provide a strong, durable, and reliable dump trailer design.

As with any trailer project, proper material selection, fabrication quality, welding, hydraulic installation, assembly, maintenance, loading practices, and compliance with applicable laws remain the responsibility of the builder.


Recommended Builder Experience

Advanced. This project is best suited for builders with welding and metal fabrication experience. Familiarity with trailer construction, suspension installation, hydraulic system installation, brake system installation, and 12-volt trailer wiring is recommended before beginning the project.


Understanding Trailer Weight, GVWR, and Payload

These plans are engineered for a maximum 14,000 lb Gross Vehicle Weight Rating (GVWR). GVWR represents the maximum allowable weight of the completed trailer and everything loaded on it, including cargo, tools, accessories, hydraulic equipment, and the trailer itself.

The completed trailer weight varies depending on the materials and options selected during construction. Estimated base trailer weight is approximately 4,900 lbs or more, resulting in an estimated payload of approximately 9,000 lbs. Optional equipment such as heavier steel, taller sides, loading ramps, hydraulic accessories, batteries, toolboxes, and other builder-selected components will affect the final trailer weight and available payload.

Available payload can be estimated using the following formula:

GVWR − Actual Completed Trailer Weight = Available Payload

For the most accurate payload calculation, weigh the completed trailer on a certified vehicle scale after construction. Always stay within the ratings of the completed trailer, axle, suspension, tires, wheels, coupler, hitch, hydraulic components, and all other installed equipment.


Frequently Asked Questions

What is included with these trailer plans?

The plans include professionally engineered drawings, step-by-step instructions, material cut lists, purchased components lists (BOM), engineering considerations, hydraulic hoist installation information, and illustrated construction guidance.

What hydraulic hoist are these plans designed for?

These plans are specifically engineered around the Dexter PH520 Hydraulic Scissor Hoist, providing outstanding lifting performance, improved leverage, and excellent long-term reliability for this trailer design.

Can I build the trailer with either straight or drop axles?

Yes. The plans include provisions for both straight and drop axle configurations, allowing you to choose the setup that best matches your desired ride height and intended application.

Can I customize these trailer plans?

Yes. Numerous engineered options are included within the plans, including suspension style, side height, loading ramps, tie-down locations, front rail options, and additional accessories. Any structural modifications beyond the engineered options should be carefully evaluated before construction.

Are these plans available as a PDF download or printed copy?

Yes. The plans are available as an instant PDF download or as professionally printed paper plans shipped flat within the lower 48 states.

What builder experience is recommended?

Advanced. Welding and fabrication experience is recommended, along with familiarity with trailer assembly, hydraulic systems, suspension installation, brake installation, and 12-volt trailer wiring.


See the DT714-14J Built from These Plans

Watch a completed 7′ × 14′ DT714-14J hydraulic dump trailer built from these professionally engineered plans. See the finished trailer, hydraulic scissor hoist operation, dumping performance, and overall design before starting your own build.


Why Choose Johnson Trailer Parts?

Johnson Trailer Parts has been helping customers build and maintain trailers since 2000. We provide professionally engineered trailer plans, matching trailer parts kits, trailer axles, suspension components, hydraulic systems, lighting, and thousands of trailer parts backed by knowledgeable customer support before and after the sale.

Whether you’re building your first dump trailer or adding another trailer to your fleet, we’re committed to providing quality products, dependable service, and the technical support you need to complete your project with confidence.


Questions?

Need help selecting the right trailer plans or matching trailer parts kit? Our team is happy to help.

Johnson Trailer Parts
Call or Text: (602) 292-9690
Email: sales@johnsontrailerparts.com

Plan Model DT714-14J
Trailer Type Tandem-Axle Hydraulic Dump Trailer
Nominal Dump Box Size 7′ Wide × 14′ Long
Actual Dump Box Dimensions Approximately 86″ Wide × 170″ Long
Gross Vehicle Weight Rating (GVWR) 14,000 lbs (Includes the Completed Trailer and Cargo)
Estimated Base Trailer Weight Approximately 4,900+ lbs, Depending on Materials and Selected Options
Estimated Payload Approximately 9,000 lbs, Depending on the Completed Trailer Weight
Axle Configuration Tandem Axle
Suspension Options Double-Eye or Slipper Leaf Springs
Axle Options Straight or Drop Axles
Approximate Overall Width 102″ at the Fenders
Approximate Overall Length 20′ 2″
Approximate Overall Height Just Under 5′ with Straight Axles; Final Height Depends on Axle and Side Configuration
Dump Angle Approximately 50°; Final Angle May Vary Slightly with Component Placement and Build Tolerances
Main Frame Construction 2″ × 6″ Rectangular Steel Tubing, 3/16″ Wall
Dump Bed Floor 10-Gauge Steel
Fender Installation Fenders Mount to the Dump Box
Hydraulic Hoist Designed Around the Dexter PH520 Hydraulic Scissor Hoist
Hydraulic Equipment Storage Tongue-Mounted Hydraulic Box for the Battery, Pump, Reservoir, Wiring, and Related Components
Battery Charging Options Solar Charging and/or Charging Connection from the Tow Vehicle
Loading Ramp Option Optional Engineered Ramp Design with Material, Length, and Capacity Information
Ramp Attachment Rear Hook-Bar Attachment Design
Ramp Storage Side-Mounted Storage Provisions on the Dump Box
Rear Loading Support Engineered Rear Support Option to Reduce Trailer Stress During Equipment Loading
Side Options Selectable Dump Bed Side Height
Tie-Down Options Optional Tie-Down Anchors and Perimeter Tie-Down Rail
Front Rail Options Optional Short or Tall Front Rail
Engineering Drawings 47 Pages
Instructions & Building Information 22 Pages
Plan Contents Engineering Drawings, Instructions, Material Cut List, Purchased Components List (BOM), Configuration Options, Engineering Considerations, Hydraulic Hoist Installation Information, and Illustrated Building Guidance
Available Formats Instant PDF Download or Printed Paper Copy
Printed Plan Packaging Shipped Flat — Not Rolled or Folded
Engineering Professionally Engineered by Synthesis Engineering Services
Matching Parts Kit DT714-14J 14K Dump Trailer Parts Kit — Sold Separately
Builder Requirements Advanced. Welding, Metal Fabrication, Trailer Construction, Tandem Suspension Installation, Brake System Installation, Hydraulic System Installation, and 12-Volt Trailer Wiring Experience Recommended
Important Capacity Notice The 14,000 lb GVWR includes the completed trailer and everything loaded in or on it. Final trailer weight and available payload depend on material selection, components, builder-selected options, and fabrication quality.
