8’6″ × 18.5′ Drive-Over Fenders Car Hauler / Equipment Trailer Plans – 12,000 lb GVWR

Product Overview

Build your own 8’6″ × 18.5′ Drive-Over Fenders Car Hauler / Equipment Trailer with these professionally engineered trailer plans designed for either a 12,000 lb or 10,400 lb Gross Vehicle Weight Rating (GVWR). Unlike conventional car hauler trailers that require vehicles to fit between the fenders, this design features permanent drive-over steel fenders, allowing wide vehicles to safely drive directly over the reinforced fenders during loading and unloading.

Designed around 4″ drop tandem leaf-spring axles, the trailer combines a heavy-duty welded steel I-beam frame with a low fixed deck height for easier loading. The 12,000 lb configuration provides an approximate deck height of 23″, while the optional 10,400 lb configuration, utilizing smaller tires, lowers the deck height to approximately 21″ for an even shallower loading angle.

Ideal for hauling wide cars, lifted trucks, Jeeps, dually pickups, UTVs, side-by-sides, tractors, skid steers, compact construction equipment, and other oversized vehicles, these plans include multiple deck styles, loading-ramp options, tie-down locations, front rail options, winch mounting, toolbox and tongue tray options, tongue jack configurations, and complete fabrication information. The package also includes CAD cut files for the drive-over fender components, simplifying fabrication when using laser, plasma, or waterjet cutting equipment.

---

Complete Plan Package Includes

Plan Model: Mu718DS120o (8×18-120ds-cd4trailer)

• 45 pages of detailed engineering drawings
• 21 pages of instructions, materials lists, engineering considerations, and illustrated building guidance
• Material Cut List
• Purchased Components List (BOM)
• Trailer Frame, Tongue, Axle, and Suspension Details
• Drive-Over Fender Construction Details
• CAD Cut Files for the Drive-Over Fender Components
• Multiple Deck, Ramp, and Tie-Down Configurations
• Winch, Toolbox, Tongue Tray, Tongue Jack, Rear Support, and Front Rail Options
• Illustrated Construction Techniques and Practical Building Guidance

Trailer components are NOT included. Steel, axles, suspension, brakes, wheels, tires, decking, ramps, winches, electrical components, and fabrication materials are sold separately. A matching Drive-Over Fenders Trailer Parts Kit is available separately.

---

Available Plan Formats

Instant PDF Download

Download your plans immediately after checkout and begin building right away. The downloadable ZIP file contains the complete engineering drawing package, instructions, materials information, CAD cut files, engineering considerations, and supporting documents.

Printed Paper Copy

Prefer working from paper in the shop? Choose our printed paper copy.

• Engineering drawings printed on 11″ × 17″ sheets for improved readability
• Instructions printed on standard 8.5″ × 11″ pages
• Shipped flat — never rolled or folded
• Free shipping within the lower 48 states

CAD Cut Files: Customers who purchase the Printed Paper Copy can contact Johnson Trailer Parts after purchase to receive the included CAD cut files electronically at no additional charge.

Important: Printed engineering drawings are provided for reference during construction and should never be scaled for dimensions. Always use the dimensions and measurements provided within the plans.

---

Heavy-Duty I-Beam Construction

The trailer is built around a heavy-duty welded steel I-beam frame engineered to provide exceptional strength, rigidity, and long-term durability for demanding hauling applications. Structural I-beams are combined with welded angle, tube, flat steel, and C-channel components to create a durable fixed-deck trailer capable of supporting either a 12,000 lb or 10,400 lb Gross Vehicle Weight Rating (GVWR), depending on the configuration you choose to build.

Designed around 4″ drop tandem leaf-spring axles, this trailer maintains a low deck height for easier loading while providing excellent stability for hauling wide cars, lifted trucks, Jeeps, dually pickups, UTVs, side-by-sides, tractors, skid steers, compact construction equipment, and many other oversized loads.

Proper fabrication, welding, material selection, component installation, and load placement remain essential to the safety, durability, and long-term performance of the completed trailer.

---

Drive-Over Fender Design

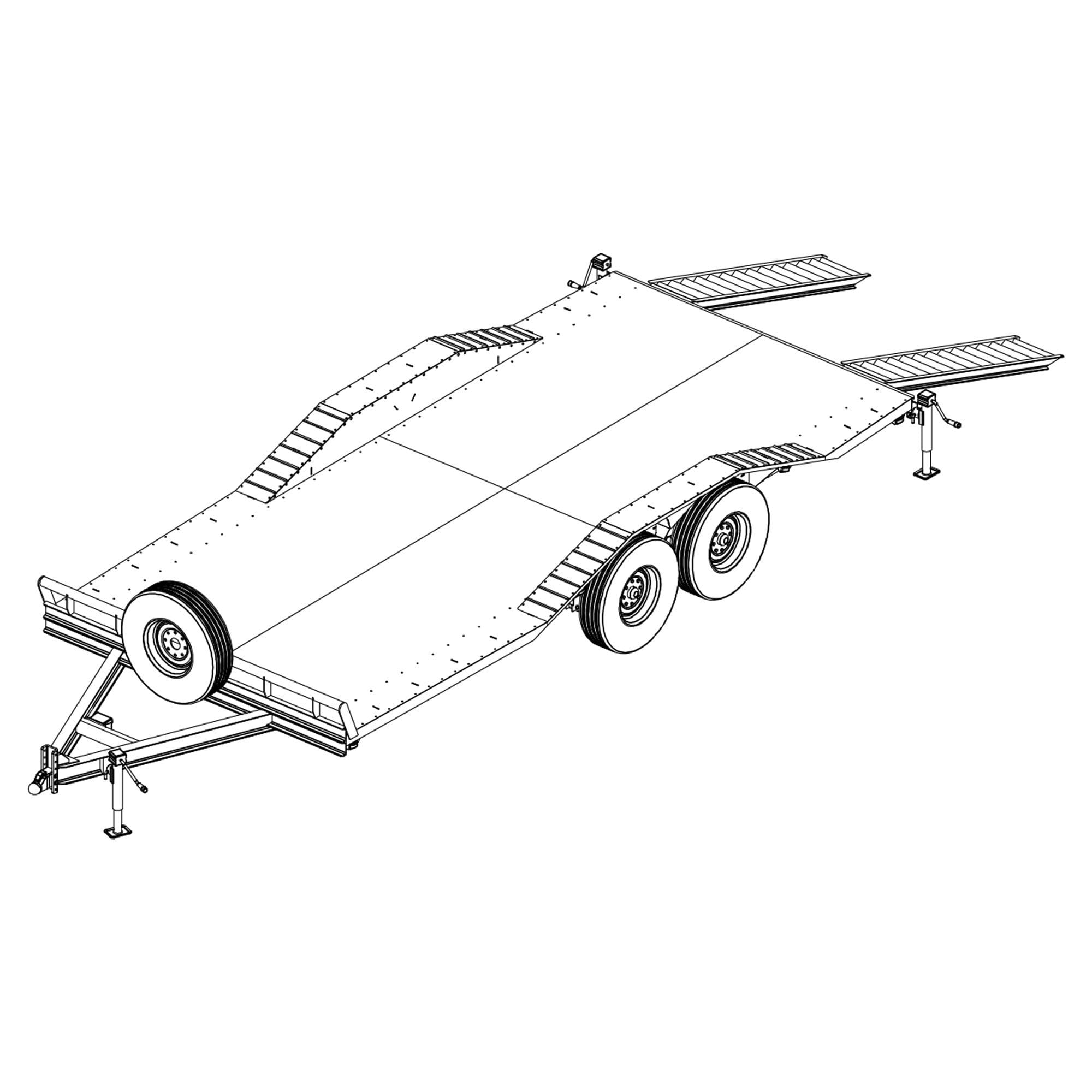

The defining feature of this trailer is its permanent drive-over steel fender system. Unlike conventional car haulers that require vehicles to fit between the fenders, this design allows wider vehicles to safely drive directly over the reinforced steel fenders while maintaining a low loading height.

The drive-over fenders utilize a tab-and-slot steel construction engineered for strength, precise alignment, and simplified fabrication. The included CAD cut files allow the fender components to be accurately cut using compatible laser, plasma, or waterjet cutting equipment, helping reduce fabrication time while improving consistency and fit.

Please Note: These trailer plans are specifically engineered around 4″ drop axles. If you require additional ground clearance, we also offer a separate Drive-Over Fenders trailer plan designed for straight axles.

---

Customizable Trailer Options

These plans include numerous engineered configuration options, allowing you to build the trailer that best fits your hauling needs.

• 12,000 lb or 10,400 lb Trailer Configuration
• 4″ Drop Tandem Leaf-Spring Axles

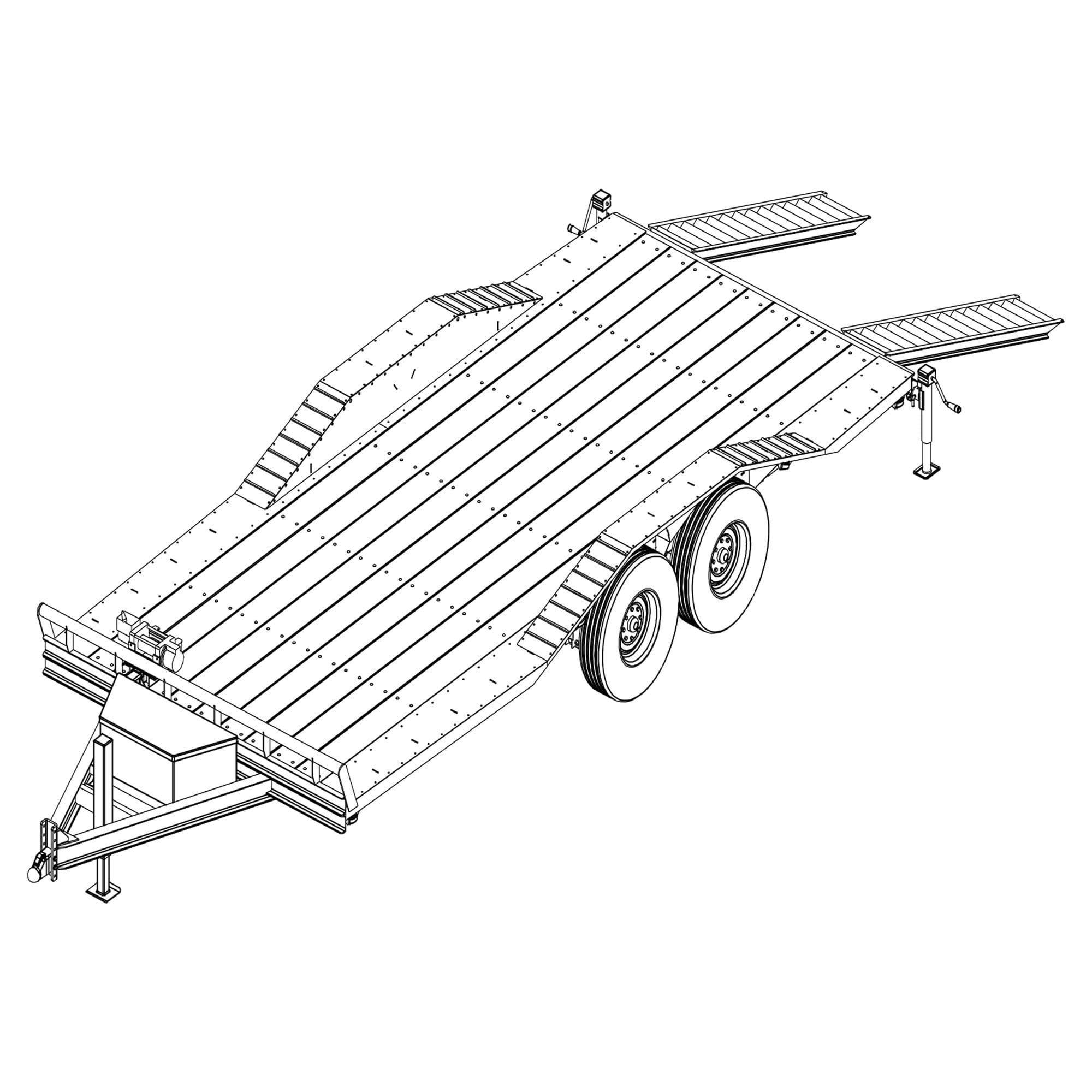

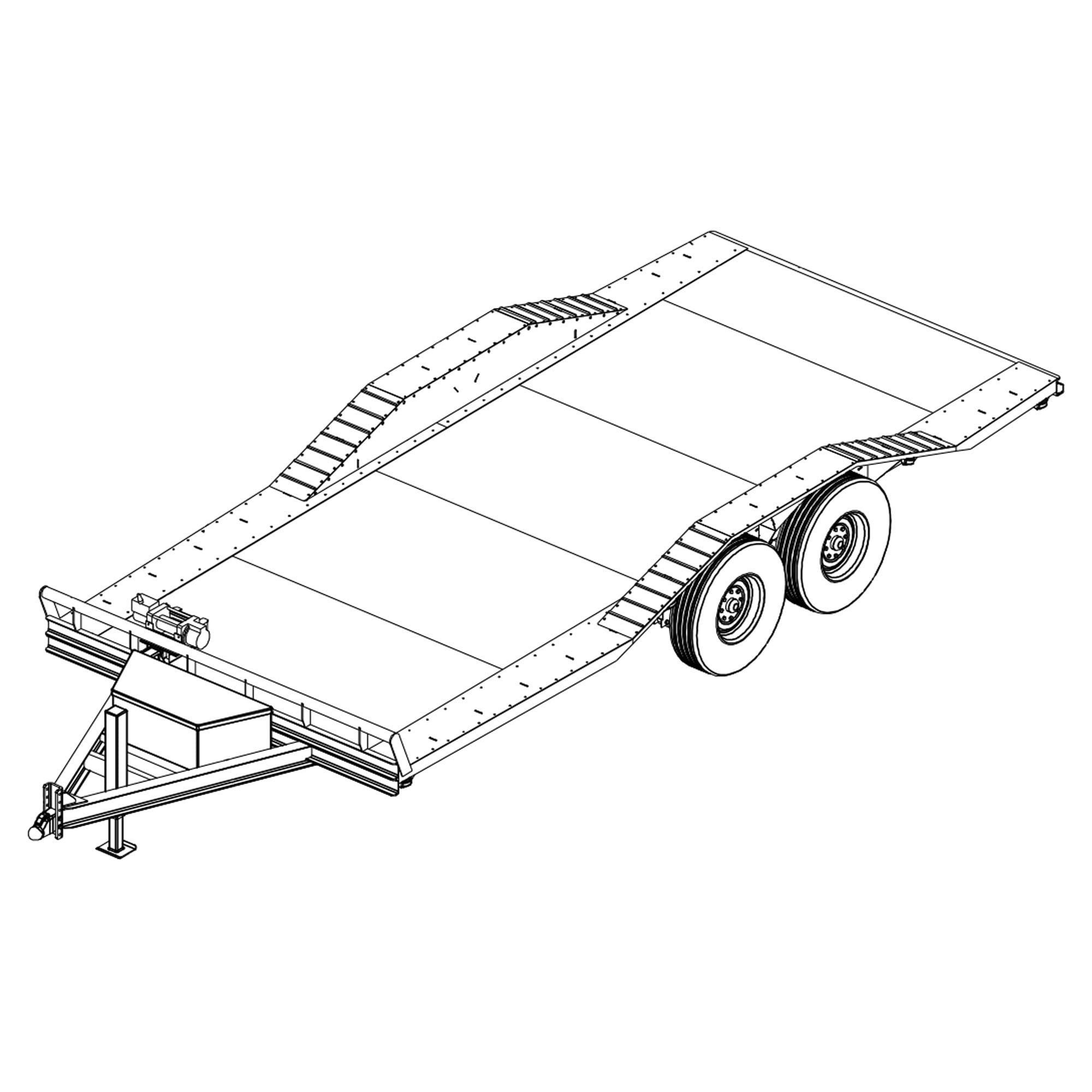

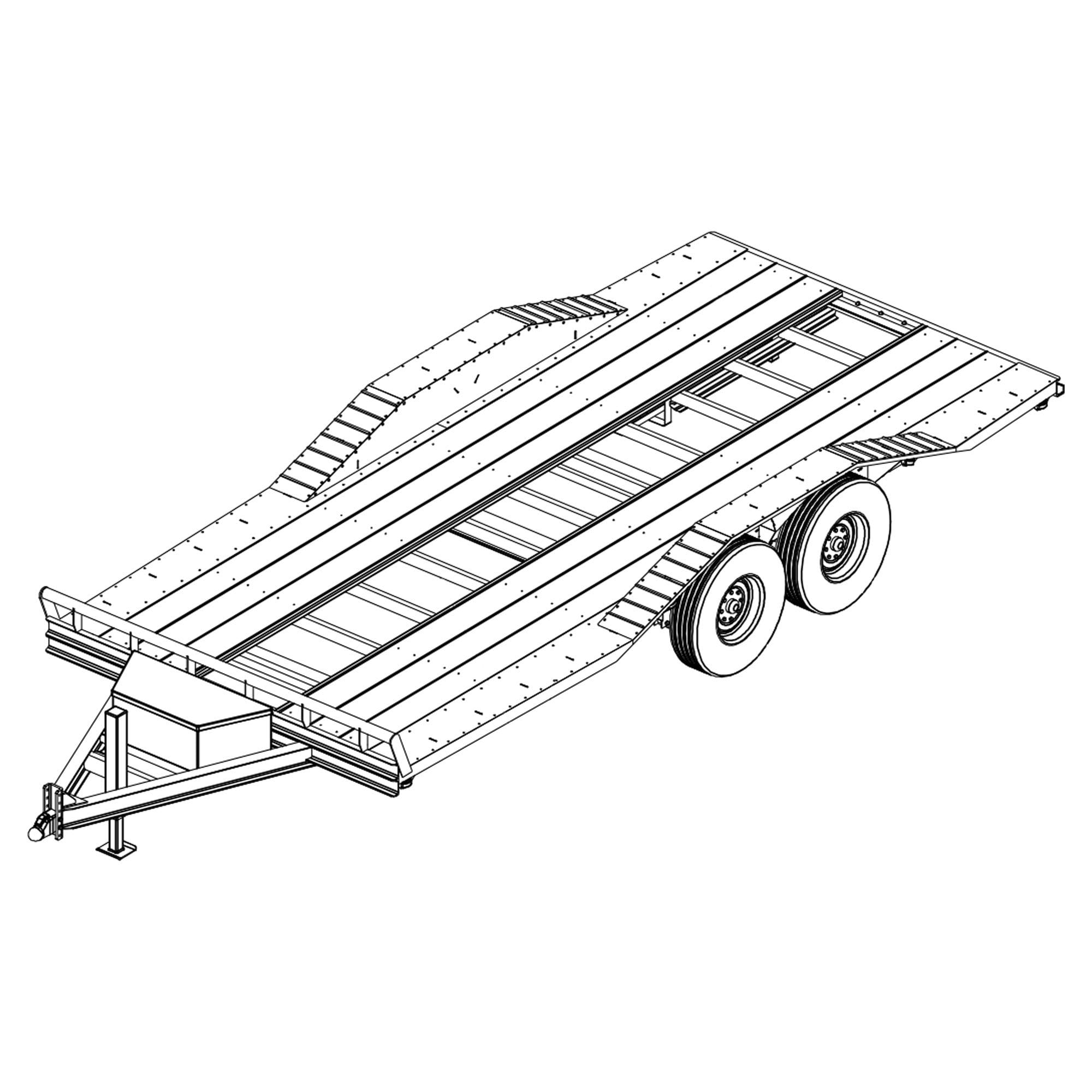

• Solid, Plank, Split, or Full Metal Deck
• Wood or Metal Decking
• Permanent Drive-Over Steel Fenders
• Multiple Loading Ramp Lengths, Widths, Materials, and Capacities
• Hidden Slide-Under Ramp Storage or Alternate Storage for Longer Ramps
• Multiple Tie-Down Locations

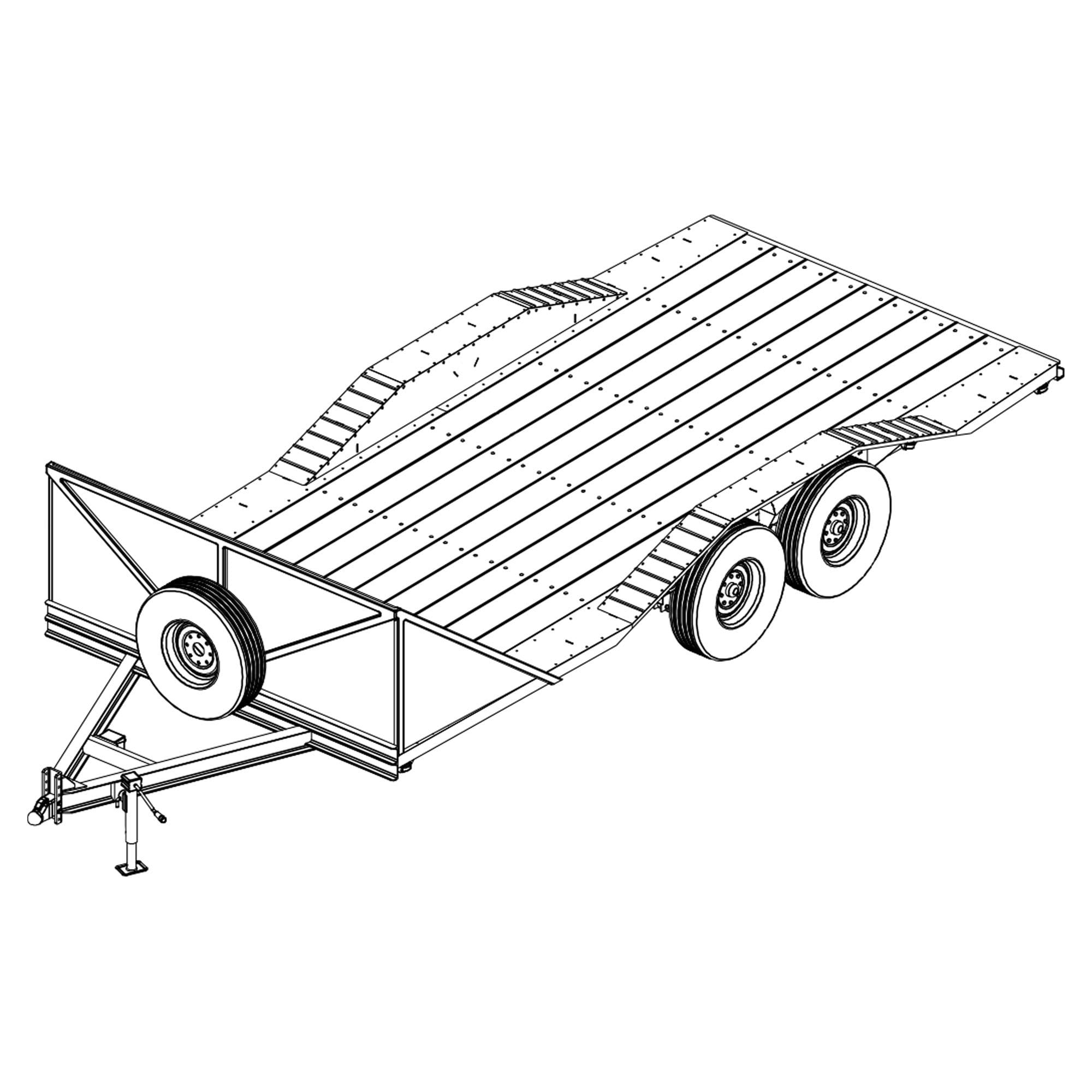

• Optional Short or Tall Front Rail
• Fixed or Removable Winch Mount
• Tongue-Mounted Toolbox or Tongue Tray
• Multiple Tongue Jack Options
• Rear Support Options

Thinking about customizing these trailer plans? Read When Safe to Customize the Plans before making modifications to the original engineered design.

---

Matching Trailer Parts Kit

Complete your build with our matching Drive-Over Fenders Car Hauler / Equipment Trailer Parts Kit – 12K. Designed specifically for these plans, the kit simplifies your build by grouping compatible major trailer components into one convenient package.

View the Matching 12K Trailer Parts Kit

---

Professionally Engineered Plans

These trailer plans were professionally engineered by Synthesis Engineering Services. The engineering package evaluates structural members, frame geometry, suspension placement, connection points, and load paths to provide a strong, durable trailer design.

As with any trailer project, proper material selection, fabrication quality, welding, assembly, maintenance, loading practices, and compliance with applicable laws remain the responsibility of the builder.

---

Recommended Builder Experience

Intermediate. This project is best suited for builders with welding and metal fabrication experience. Familiarity with trailer construction, suspension installation, brake system installation, and 12-volt trailer wiring is recommended before beginning the project.

---

Understanding Trailer Weight, GVWR, and Payload

These plans allow you to build the trailer in either a 12,000 lb or 10,400 lb Gross Vehicle Weight Rating (GVWR) configuration. GVWR represents the maximum allowable weight of the completed trailer and everything loaded on it, including cargo, equipment, accessories, and the trailer itself.

The base 12,000 lb trailer weighs approximately 2,600+ lbs before decking and optional equipment. Final trailer weight will vary depending on your material selection, decking, ramps, tie-down options, toolbox, winch, battery, tongue tray, jack configuration, wheels, tires, axles, and other builder-selected options.

Available payload can be estimated using the following formula:

GVWR − Actual Completed Trailer Weight = Available Payload

For the most accurate payload calculation, weigh the completed trailer on a certified vehicle scale after construction. Always stay within the ratings of the completed trailer, axles, suspension, tires, wheels, coupler, hitch, and all other installed components.

---

Frequently Asked Questions

What is included with these trailer plans?

The plans include detailed engineering drawings, step-by-step instructions, illustrated building guidance, material cut lists, purchased components lists (BOM), engineering considerations, multiple build options, and CAD cut files for the drive-over fender components.

What makes this trailer different from a standard car hauler?

This trailer features permanent drive-over steel fenders that allow wide vehicles to safely load over the fenders while maintaining a low deck height. The plans also include CAD cut files that simplify fabrication of the fender components.

Can I build either the 12,000 lb or 10,400 lb version?

Yes. The plans include information for both configurations, allowing you to build either the 12,000 lb or 10,400 lb GVWR version using the appropriate components and materials.

Are the CAD cut files included with both PDF and printed plans?

Yes. CAD cut files for the drive-over fender components are included with the downloadable plans. Customers who purchase the printed paper plans can simply contact us and we will provide the CAD files electronically.

Can I customize these trailer plans?

Yes. The plans include numerous engineered configuration options, and minor customizations are possible. We recommend reviewing our guide on safely modifying engineered trailer plans before making structural changes.

Are these plans available as a PDF download or printed copy?

Yes. Choose between an instant PDF download or a professionally printed paper copy shipped flat within the lower 48 states.

What builder experience is recommended?

Intermediate. These plans are intended for builders with welding, fabrication, trailer assembly, suspension, brake system, and 12-volt wiring experience.

---

Why Choose Johnson Trailer Parts?

Johnson Trailer Parts has been helping customers build and maintain trailers since 2000. We provide professionally engineered trailer plans, matching parts kits, trailer axles, suspension components, hydraulic systems, lighting, and thousands of trailer parts backed by knowledgeable customer support before and after the sale.

Whether you’re building your first trailer or adding another trailer to your fleet, we’re committed to providing quality products, dependable service, and the technical support you need to complete your project with confidence.

---
