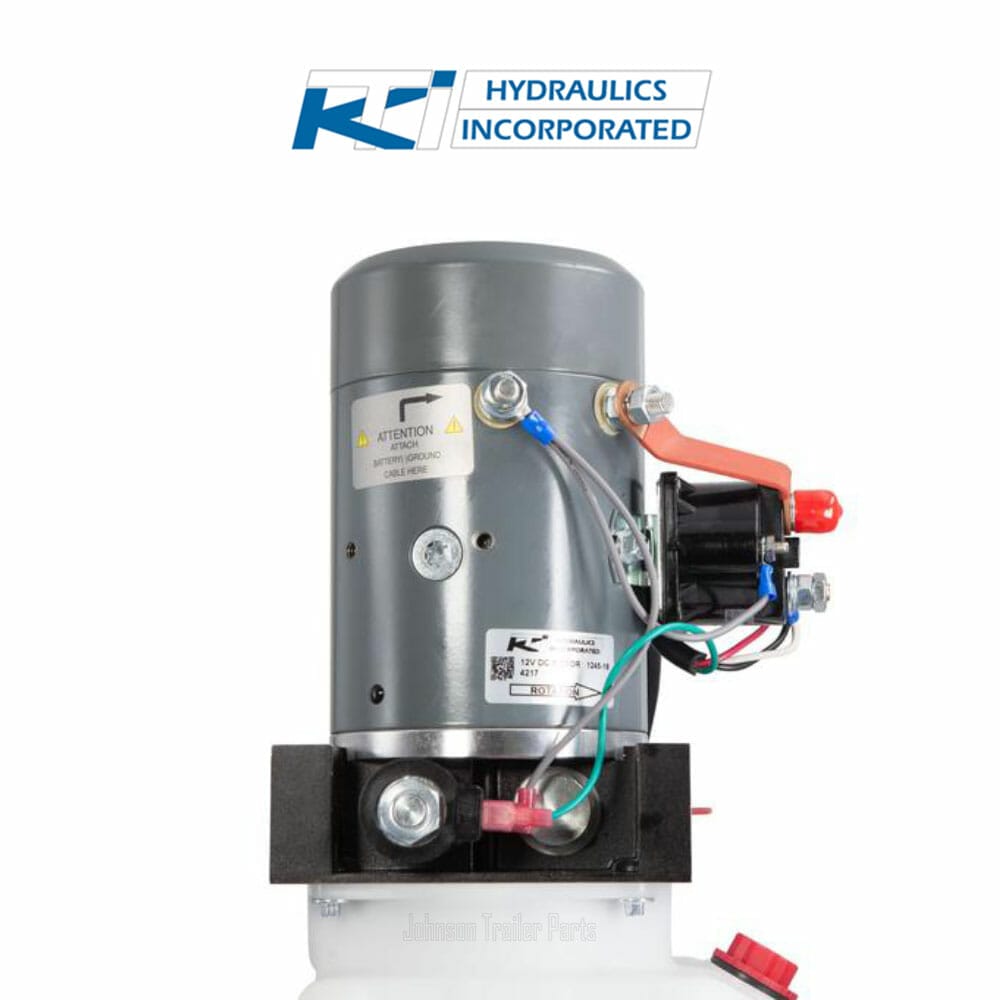

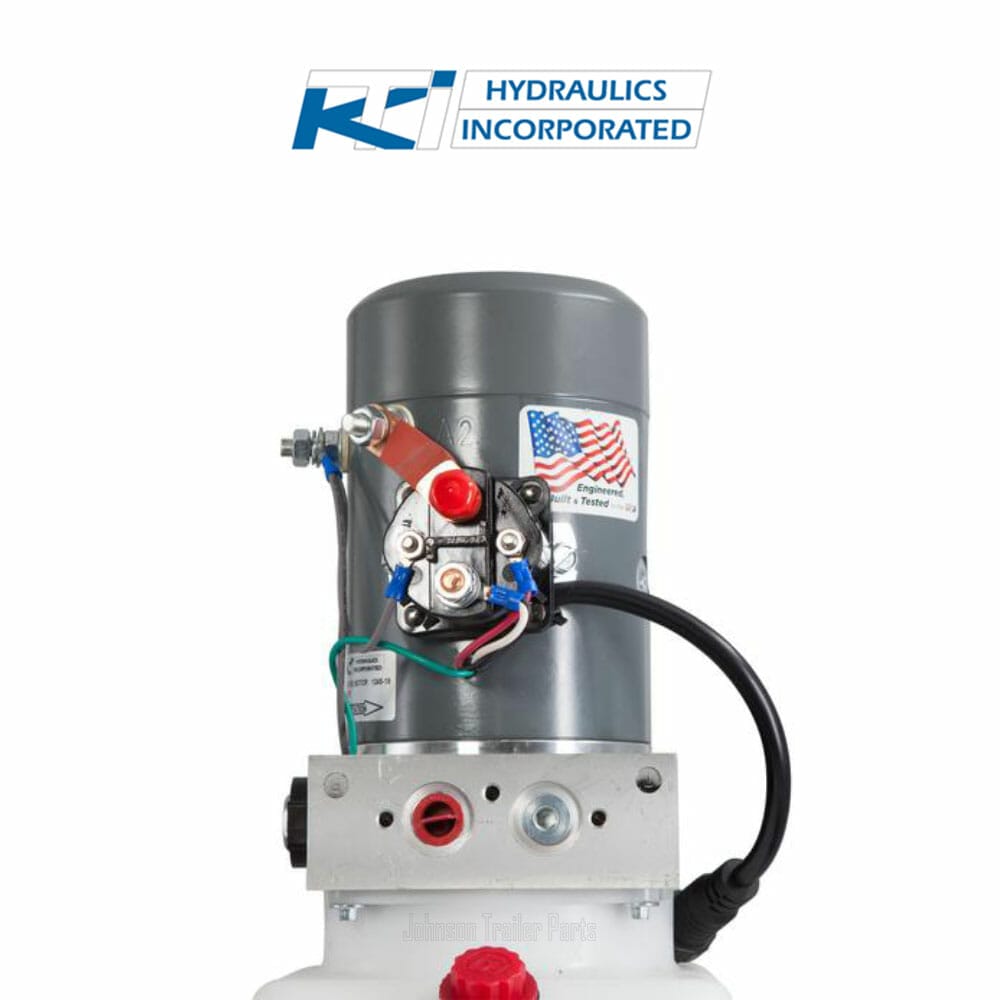

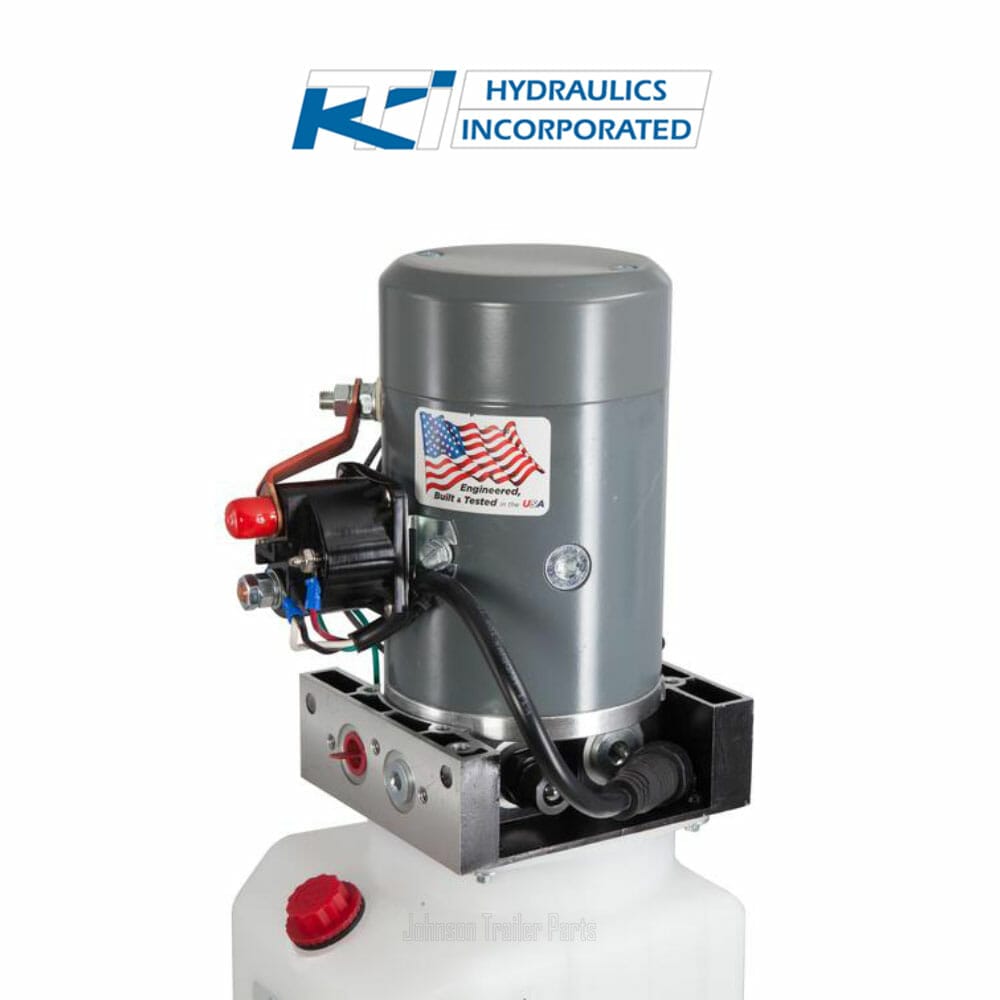

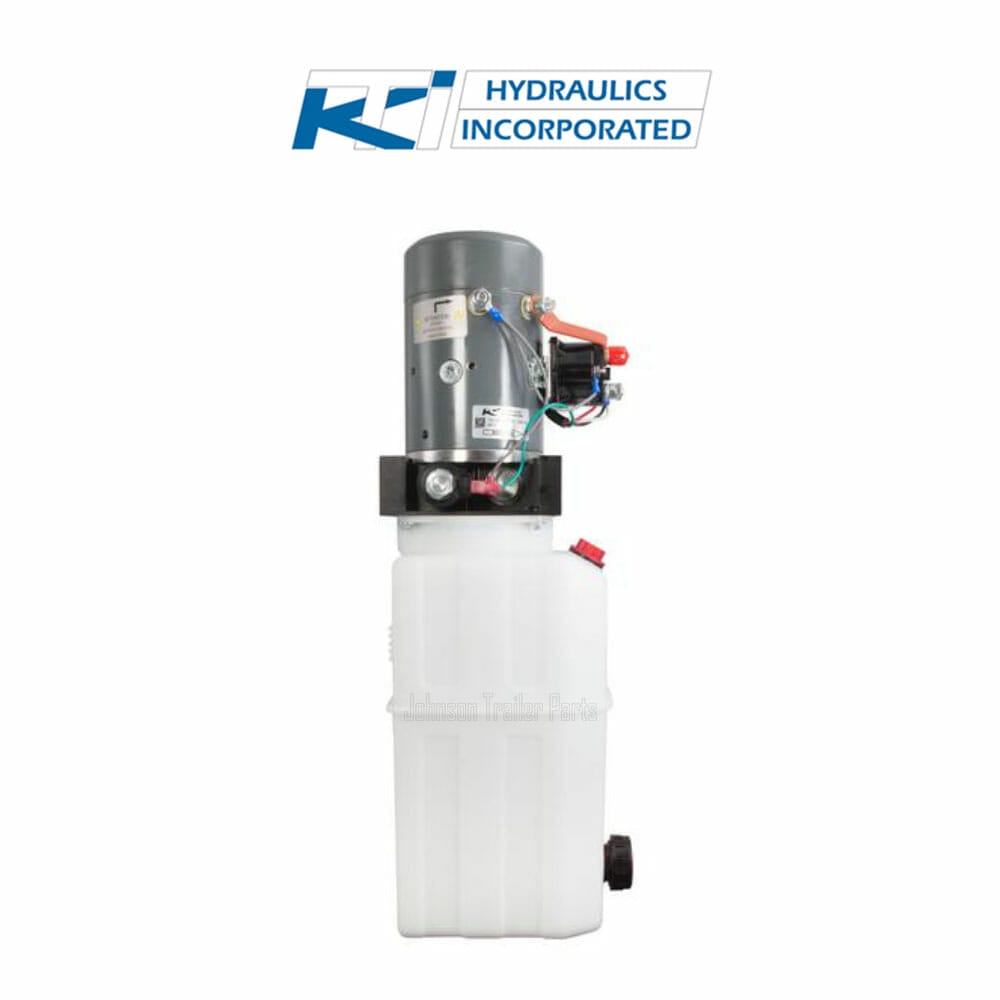

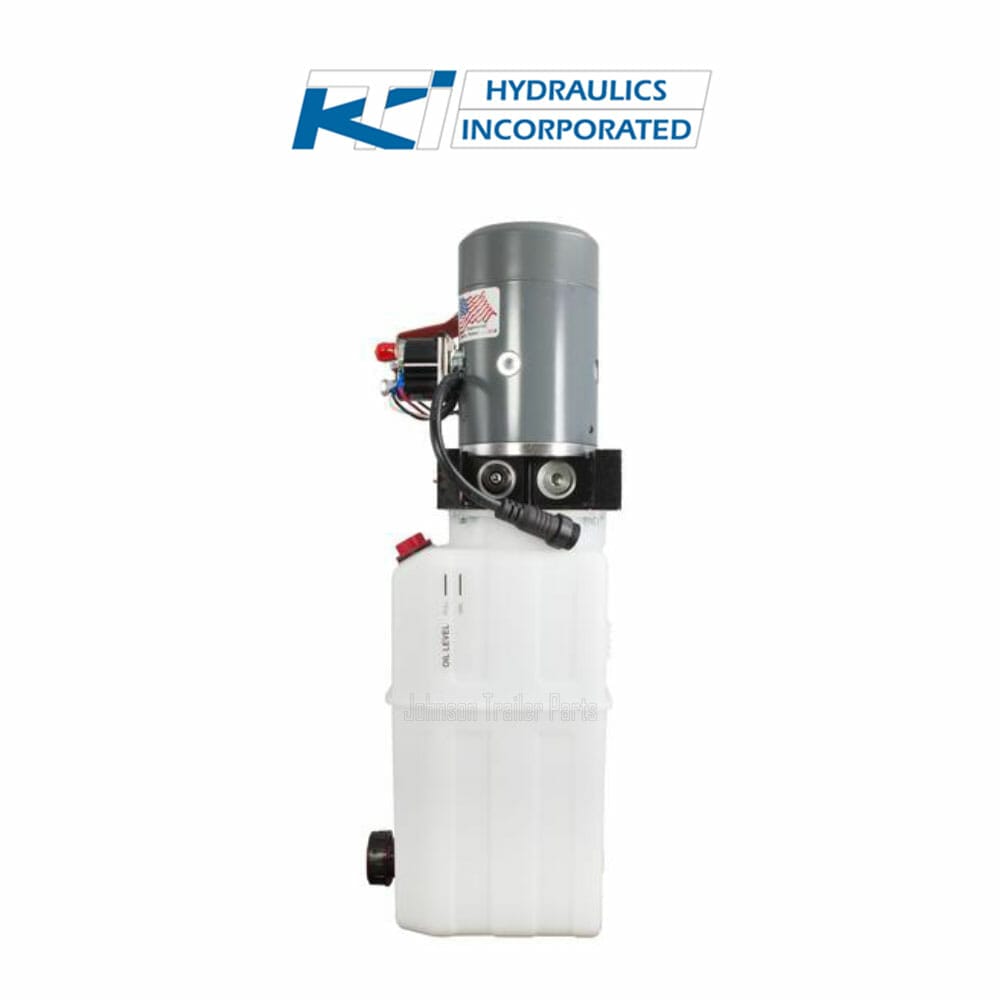

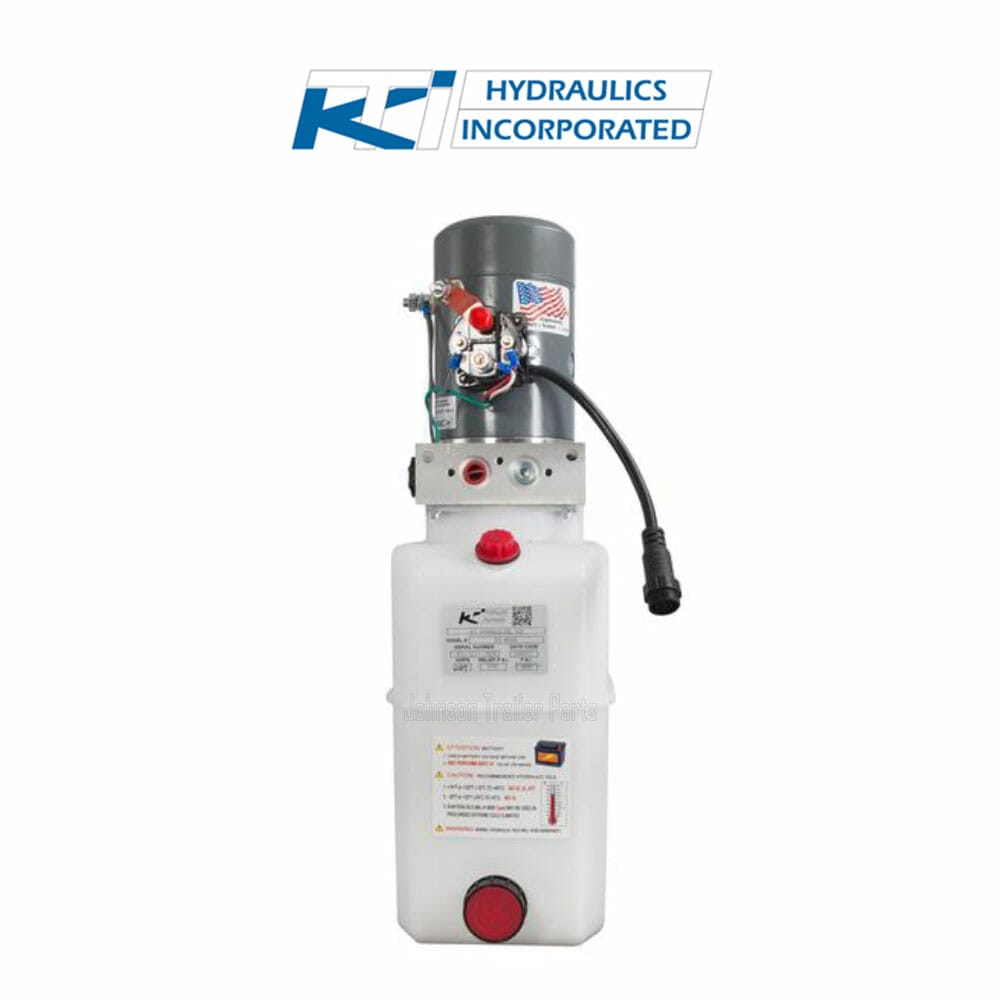

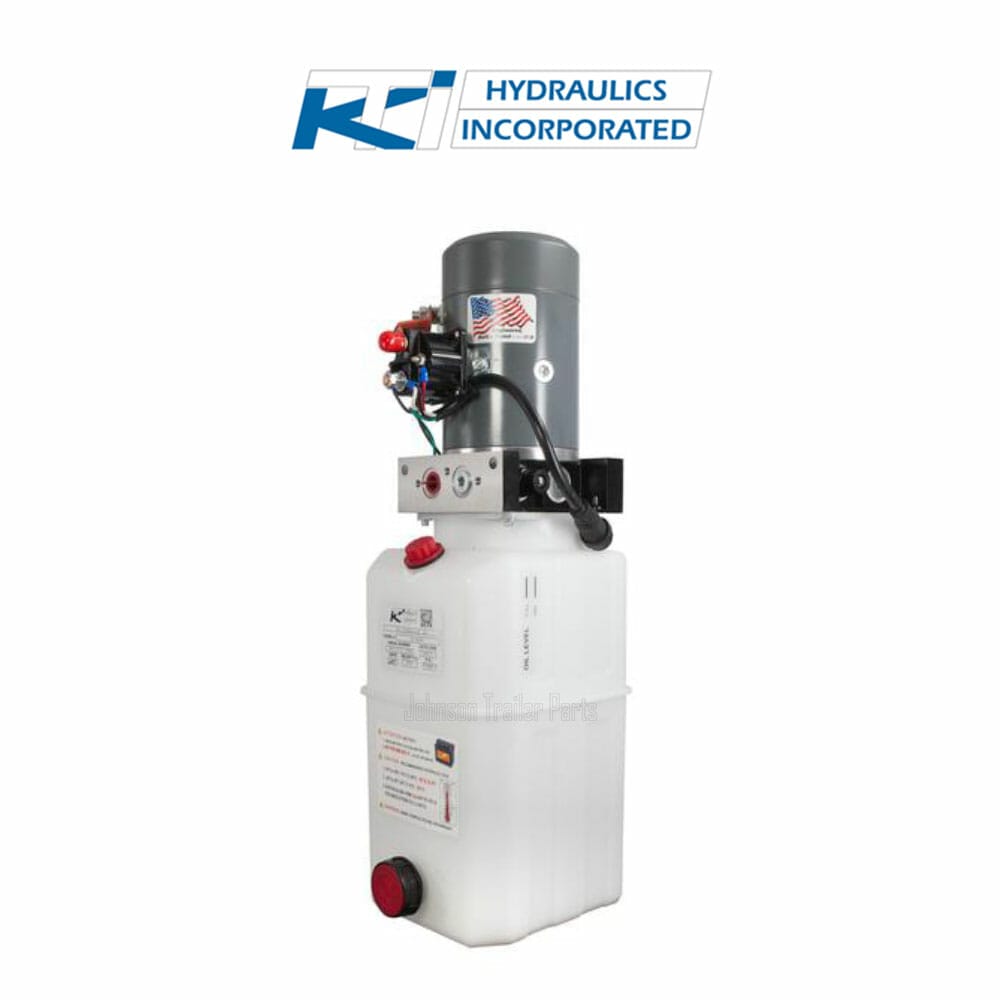

At Johnson Trailer Parts, we offer the KTI DC-4348 6 Quart 12V Single Acting Hydraulic Pump as a dependable hydraulic power unit for dump trailers, hydraulic scissor hoists, dump bodies, lift tables, and other 12V hydraulic applications. Built for power-up and gravity-down operation, this pump is designed for systems that lift under hydraulic power and lower by gravity.

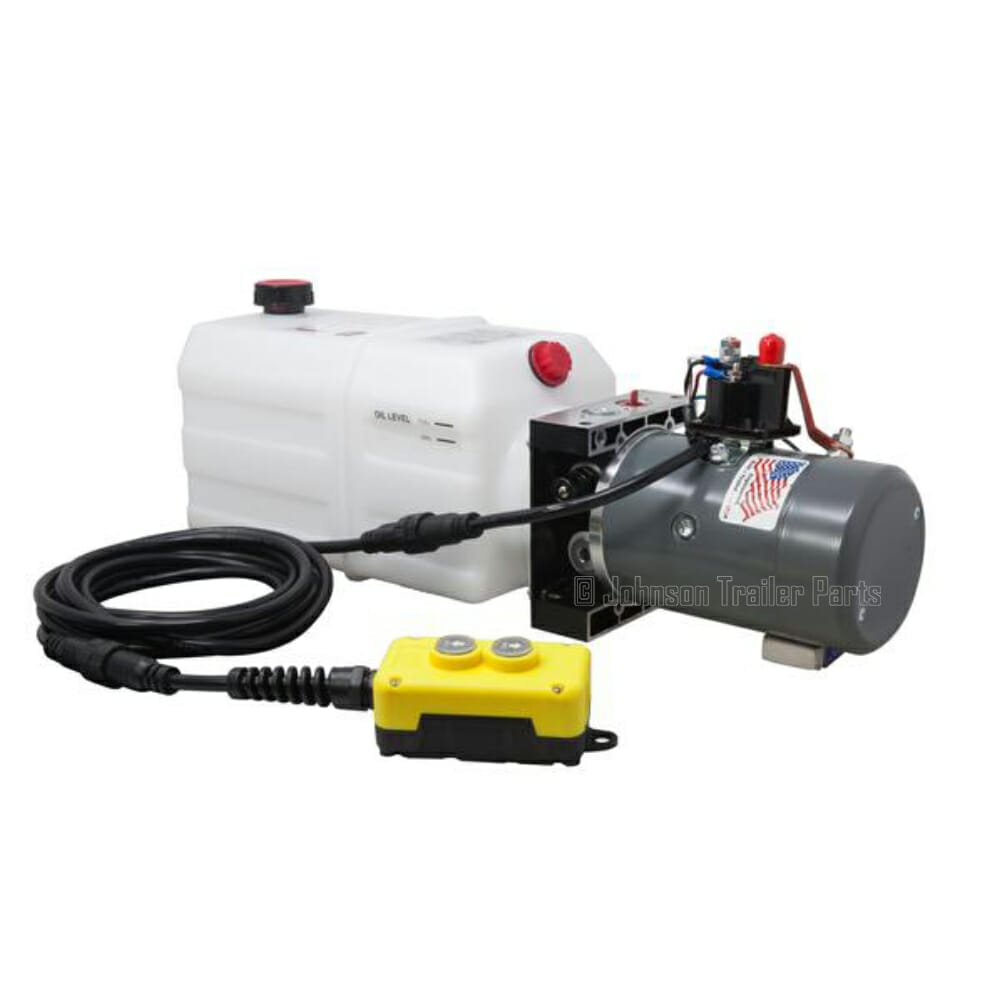

This 6 quart KTI hydraulic power unit includes a translucent reservoir for easy fluid level monitoring, a 12V DC electric motor, 2.0 GPM flow rate, SAE #6 ports, and a 15 ft handheld pendant with removable cord. The pump is engineered, assembled, and tested in the USA and backed by a 2-year manufacturer warranty.

What’s Included

• KTI DC-4348 6 quart 12V single acting hydraulic pump

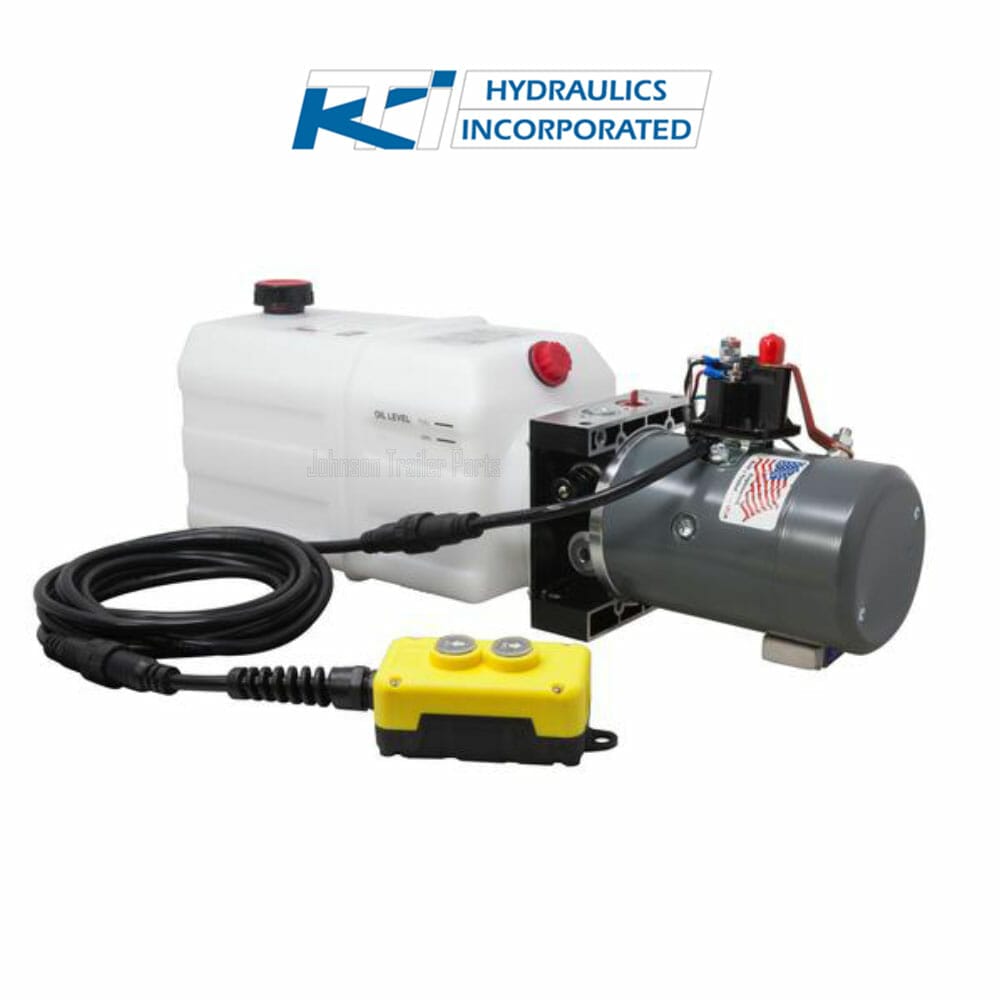

• 15 ft handheld remote pendant with removable cord
• Start solenoid
• 6 quart translucent hydraulic reservoir

Key Features

• Single Acting Operation: Designed for power-up and gravity-down hydraulic applications where the system lifts under hydraulic power and lowers by gravity.
• 6 Quart Translucent Reservoir: Provides hydraulic fluid capacity while allowing easy fluid level monitoring during installation, service, and routine maintenance.
• 12V DC Hydraulic Power Unit: Built for dump trailers, hydraulic scissor hoists, dump bodies, lift tables, and other mobile hydraulic systems.
• 2.0 GPM Flow Rate: Provides dependable hydraulic flow for smooth lifting performance.
• High Pressure Output: Features a 3,200 PSI max relief setting for increased lifting power.
• SAE #6 Ports: Designed for common trailer hydraulic hose and fitting connections.
• Horizontal Mount Design: Built for common trailer and mobile hydraulic power unit installations.
• 15 ft Handheld Pendant: Includes a corded remote for convenient operation from a safe working distance.
• Built and Tested in the USA: KTI hydraulic power units are inspected and tested to meet strict performance standards.

Pump Specifications

• Part Number: DC-4348
• Reservoir Capacity: 6 quart translucent reservoir
• Motor: 12V DC electric motor
• Operation: Single acting — power-up / gravity-down
• Flow Rate: 2.0 GPM
• Max Relief Setting: 3,200 PSI max
• Ports: SAE #6
• Mounting Style: Horizontal mount
• Remote: Handheld pendant with 15 ft removable cord
• Includes: Start solenoid
• Warranty: 2-year manufacturer warranty

Common Applications

• Dump trailers and tipper trailers
• Hydraulic scissor hoists
• Dump bodies
• Lift tables
• Hydraulic presses
• Scissor lifts
• Man lifts
• Leveling systems
• Other 12V single acting hydraulic systems

Why We Trust KTI Hydraulic Pumps

We trust KTI hydraulic pumps for dump trailer and mobile hydraulic applications because they are widely used by trailer builders, repair shops, contractors, and equipment owners across the United States. KTI hydraulic power units are known for dependable performance, low noise operation, and long service life in demanding trailer and hydraulic applications.

Each KTI hydraulic pump is fully inspected and tested to meet strict performance specifications, helping ensure reliable operation right out of the box.

Resources & Documentation

• ⇓ Download KTI Single Acting Pump Installation Manual
• ⇓ Download KTI Hydraulic Pump Bleed Cycle Guide
• ⇓ Download KTI Recommended Hydraulic Oils Guide
• ⇓ Download KTI DC Power Unit Troubleshooting Guide

KTI documentation is provided for customer reference. For additional manufacturer support documents and the latest KTI updates, visit the KTI Hydraulics Support Page.

Engineered, Assembled, and Tested in the USA

We recommend this 6 quart KTI single acting hydraulic pump for customers who need a dependable 12V hydraulic power unit with power-up and gravity-down operation. The 6 quart reservoir makes it a practical option for dump trailer hydraulic systems, scissor hoists, and equipment setups that require hydraulic lifting with gravity-down return.

Need Help Choosing the Right Hydraulic Pump?

Not sure if this 6 quart KTI single acting hydraulic pump is the right fit for your dump trailer, hydraulic scissor hoist, lift table, or hydraulic application? Contact Johnson Trailer Parts before ordering and we can help review your application, pump requirements, hydraulic setup, and compatibility questions.

Need help with fitment or pump selection? Call Johnson Trailer Parts at (602) 292-9690 or contact us through our website. Our team is available to help customers choose the right hydraulic pump, hoist kit, replacement part, or trailer hydraulic component for their setup.
