The Dexter 24K Dual Power Jacks Kit with KTI Dual Double-Acting Pump is a complete dual-jack hydraulic system built to make heavy trailer lifting, leveling, and hookup easier without manual cranking. Designed with two Dexter | Premium Supply 12K hydraulic trailer jacks and a KTI 6 quart 12V dual double-acting hydraulic pump, this kit provides push-button lifting power for demanding trailer applications.

This complete kit is a strong choice for trailers that need a dedicated dual hydraulic jack system with pump, controls, flow divider, hoses, fittings, battery cables, and hardware. The dual double-acting hydraulic pump also allows the system to operate a compatible dump bed or secondary hydraulic trailer function from the same hydraulic power unit.

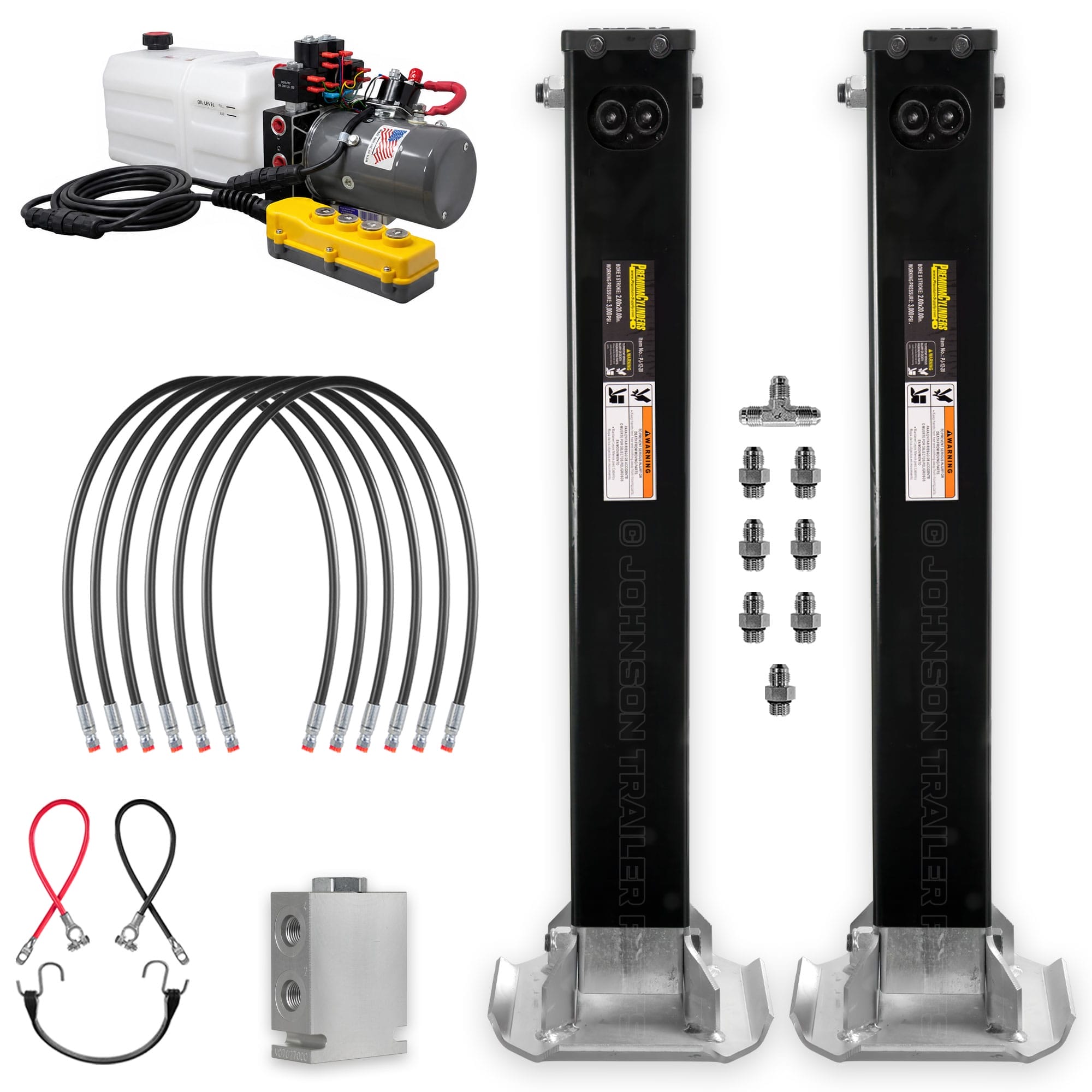

What’s Included

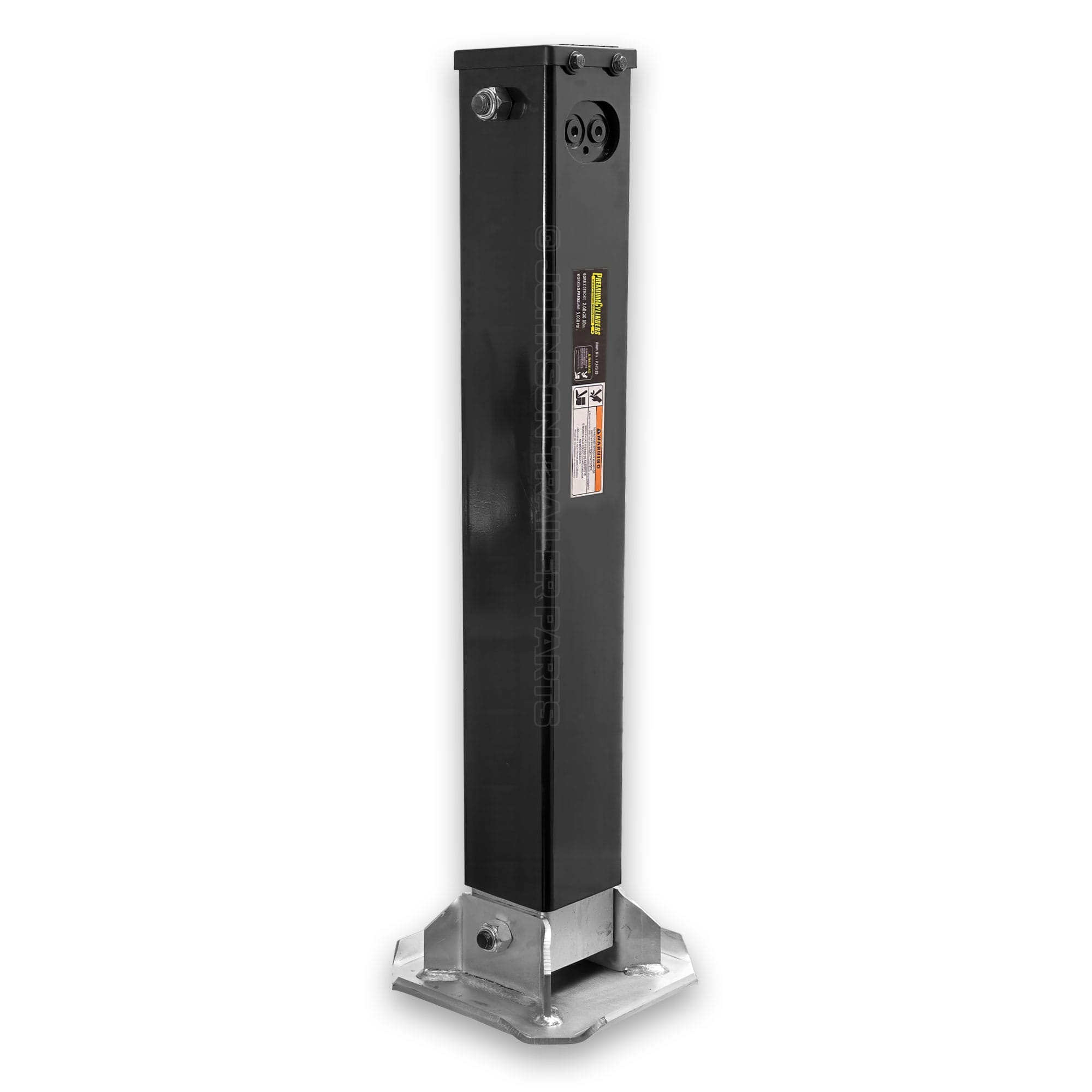

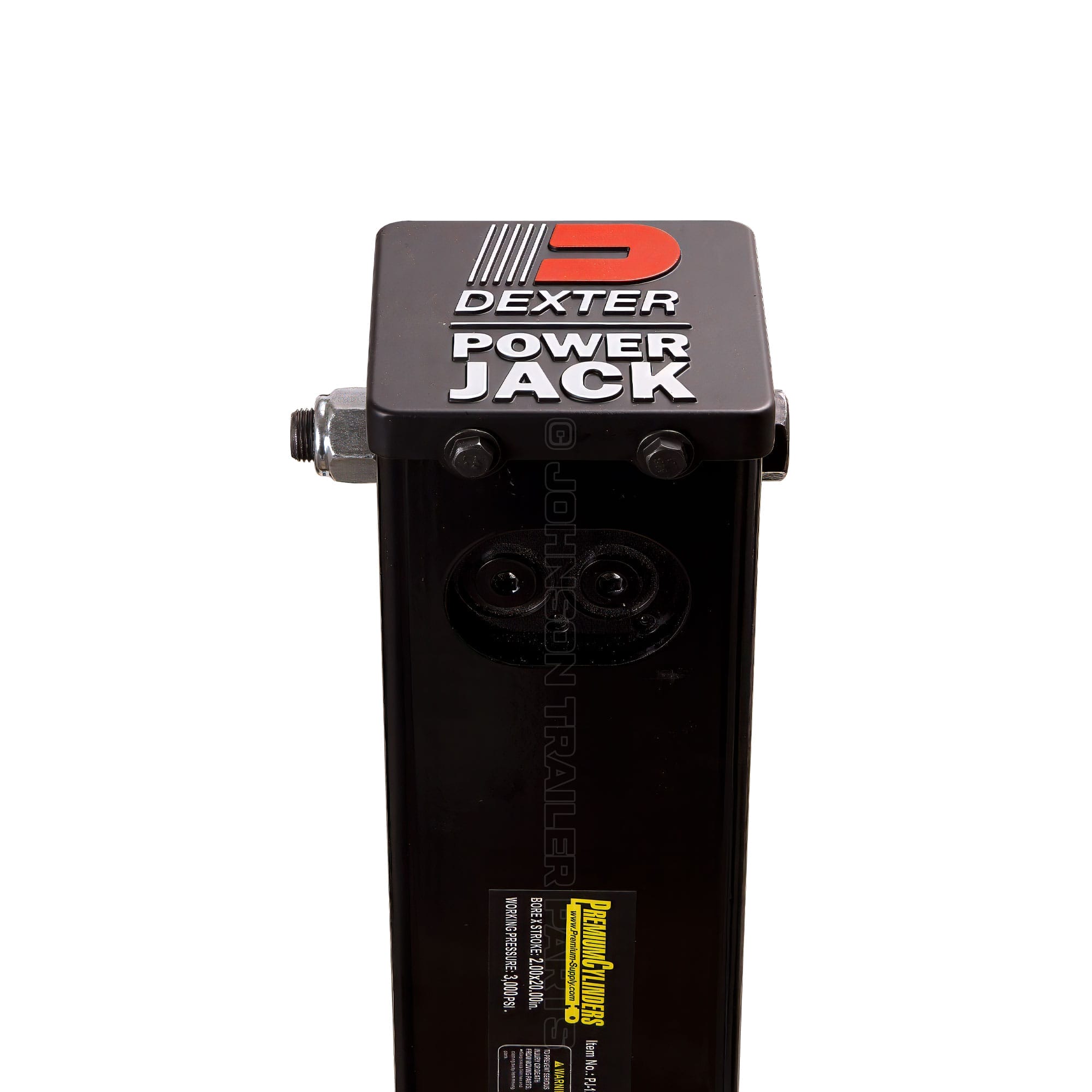

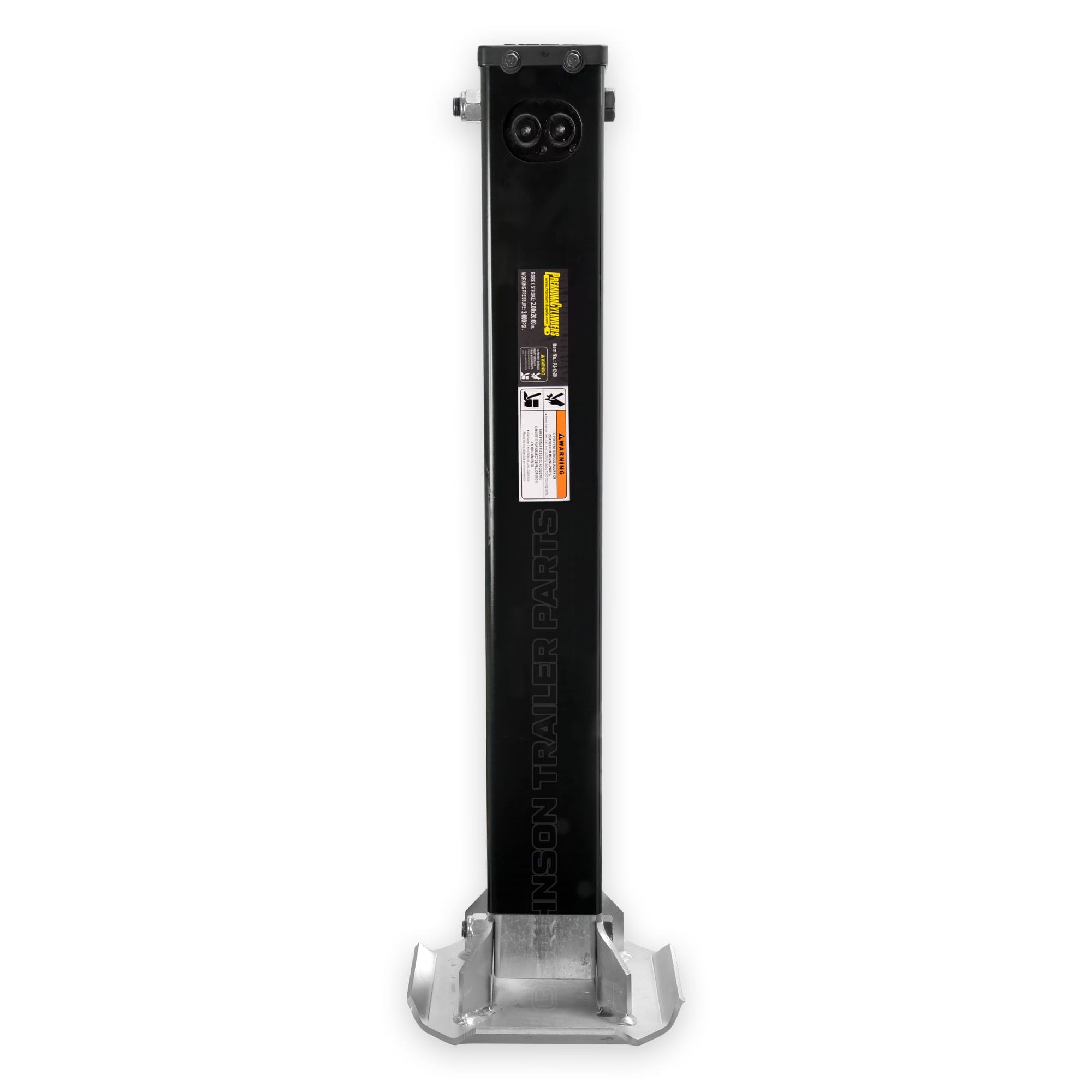

• (2) Dexter 12K hydraulic trailer jacks with 2″ x 20″ hydraulic cylinders
• (1) KTI 6 quart 12V dual double-acting hydraulic pump with 15′ 4-button wired pendant remote
• (1) Flow divider combo, 2.5 GPM
• (6) 48″ hydraulic hose assemblies with straight #6 JIC fittings
• (7) Straight adapter fittings – #6 SAE male x #6 JIC male
• (1) Tee fitting – #6 JIC
• (2) Battery cables
• (1) Rubber strap
• (2) Jack covers

Key Features

• Complete 24K Dual Power Jack Kit: Includes two hydraulic trailer jacks, KTI dual double-acting pump, flow divider, hoses, fittings, battery cables, 4-button wired remote, jack covers, and hardware for a complete dual hydraulic trailer jack setup.
• 24,000 lb Combined Support Capacity: Includes two 12K hydraulic trailer jacks for heavy-duty trailer support applications. This refers to the combined static support rating.
• 20,000 lb Combined Lift Capacity: Provides strong hydraulic raising power for trailer hookup, leveling, and support when properly installed.
• KTI Dual Double-Acting Pump: Includes a 6 quart 12V KTI hydraulic power unit designed to operate both the hydraulic trailer jacks and a compatible dump bed or secondary hydraulic trailer function.
• 4-Button Pendant Remote: Includes a 15′ wired remote with top buttons for jack operation and bottom buttons for dump bed or compatible hydraulic function control.
• Flow Divider Included: Helps distribute hydraulic flow between both jack legs for dual-jack operation.
• Push-Button Operation: Hydraulic power helps eliminate manual cranking and makes heavy trailer positioning easier.
• 20″ Travel Range: Each jack provides a wide operating range for trailer hookup, leveling, and support.
• Large 9-1/2″ x 9-1/2″ Footplates: Help spread the load and improve stability on gravel, dirt, job sites, and uneven ground.
• Heavy-Duty 4″ x 4″ Outer Tubes: Rugged square-tube construction designed for demanding trailer and job site use.
• 3-Year Manufacturer Warranty: Backed by Dexter’s manufacturer warranty for dependable long-term performance.

Complete Dual Hydraulic Trailer Jack System

This Dexter | Premium Supply Power Jack kit is designed for trailers that need a complete dual hydraulic jack setup with a dedicated KTI dual double-acting hydraulic pump. The hydraulic power unit provides controlled lifting and lowering, helping reduce the effort required to connect, level, and support heavy trailers.

The included KTI 6 quart hydraulic power unit is designed for dependable 12V hydraulic operation and works with the two Dexter 12K Power Jacks to provide smooth, controlled movement. The included 2.5 GPM flow divider helps distribute hydraulic flow between both jack legs to support smoother dual-jack operation.

Unlike a standard single-function hydraulic pump, this dual double-acting setup also allows the system to control a compatible dump bed or secondary hydraulic trailer function from the same hydraulic power unit. This makes the kit a strong option for dump trailers and hydraulic trailer builds where operators want both hydraulic jack operation and dump bed control from one centralized hydraulic system.

This style of dual hydraulic trailer jack setup is commonly used on larger gooseneck trailers, dump trailers, equipment trailers, livestock trailers, and other heavy-duty trailer applications where additional front-end lifting support and stable dual-jack operation are important.

4-Button Pendant Remote

The included 15′ wired pendant remote is designed for dual-function hydraulic control from one convenient handheld remote.

• Top Buttons: Raise and lower the hydraulic trailer jacks
• Bottom Buttons: Operate the dump bed or compatible hydraulic trailer function
• One Remote: Control both jack operation and dump bed function from the same pendant remote

This setup allows operators to control both hydraulic functions from one centralized remote without needing separate hydraulic power units or multiple control systems.

Trailer Applications

Dexter | Premium Supply hydraulic Power Jacks are commonly used on heavy-duty trailers where strong hydraulic lifting power and dependable trailer support are needed.

• Dump trailers
• Gooseneck trailers
• Equipment trailers
• Livestock and horse trailers
• Cargo trailers
• Car haulers
• Construction trailers
• Flatbed trailers
• Custom trailer builds and hydraulic trailer upgrades

Fitment Note

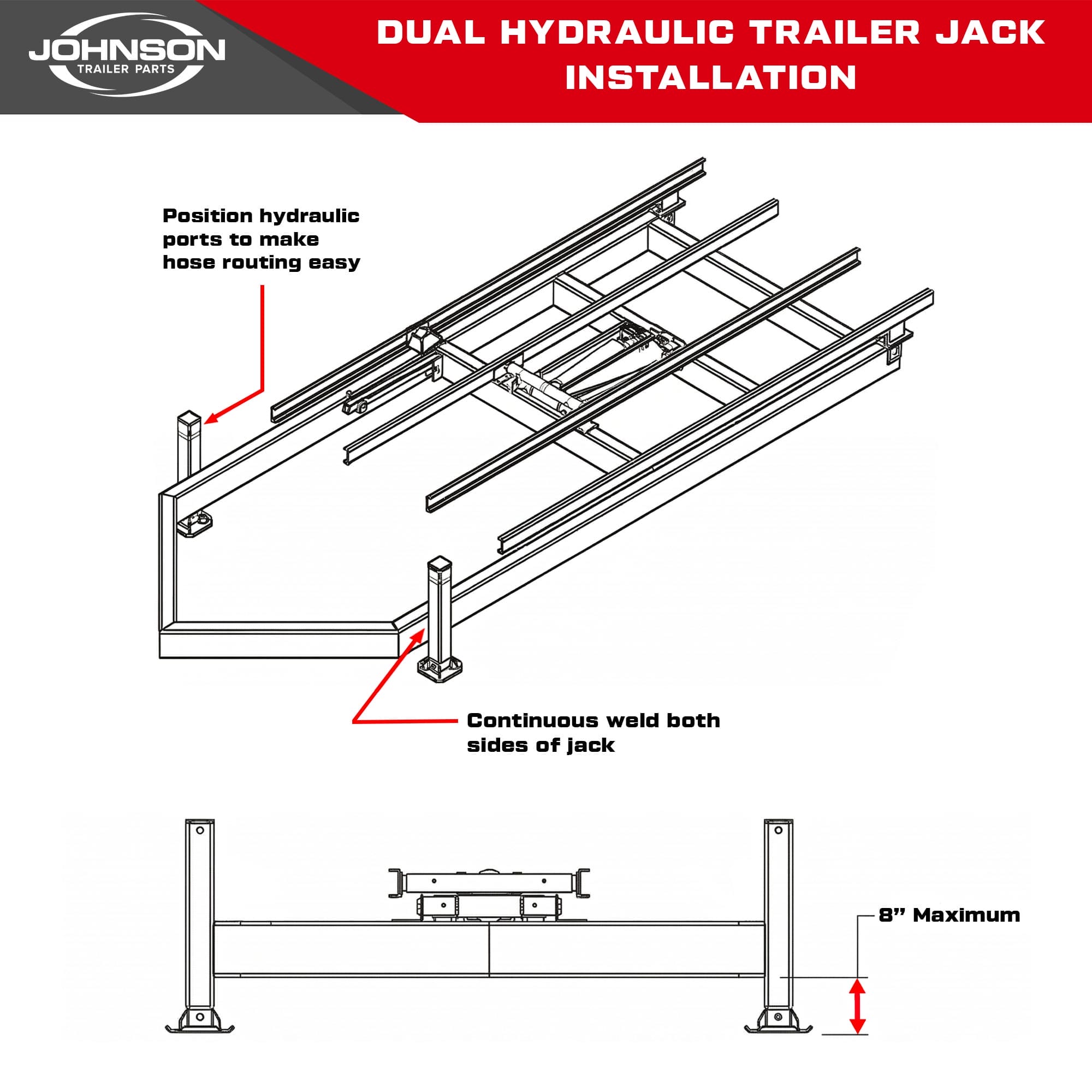

Proper frame height is critical for fitment and operation. The vertical distance from the bottom of each jack foot to the underside of the trailer frame should not exceed 8″. Always verify trailer frame height, mounting location, battery location, hydraulic hose routing, flow divider placement, and installation requirements before ordering.

Specifications

• Brand: Dexter | Premium Supply
• Product Line: Power Jack
• Product Type: Hydraulic trailer jack kit with KTI dual double-acting pump
• Configuration: Dual jack kit with KTI 6 quart 12V dual double-acting hydraulic pump and flow divider
• Combined Support Capacity: 24,000 lb static support capacity
• Combined Lift Capacity: 20,000 lb hydraulic lift capacity
• Individual Jack Support Capacity: 12,000 lb each
• Individual Jack Lift Capacity: 10,000 lb each
• Travel: 20″
• Retracted Bracket Height: 30-3/4″
• Extended Bracket Height: 50-3/4″
• Footplate Size: 9-1/2″ x 9-1/2″
• Outer Tube Size: 4″ x 4″
• Hydraulic Pump: KTI 6 quart 12V dual double-acting hydraulic power unit
• Remote Control: 15′ 4-button wired pendant remote
• Flow Divider: 2.5 GPM flow divider combo
• Hydraulic Flow: Up to 2 GPM
• Maximum Raise / Extend Pressure: 3,200 PSI
• Maximum Lower / Retract Pressure: 1,500 PSI
• Recommended Fluid: Dexron III ATF for normal operating conditions
• Warranty: 3-year manufacturer warranty

Installation Manuals

• ⇓ Download Dexter 12K Hydraulic Trailer Jack Manual
• ⇓ Download KTI Dual Double-Acting Pump Installation Manual

Important Notes

• This listing is for the complete dual hydraulic trailer jack kit with KTI dual double-acting hydraulic pump and flow divider.
• The maximum distance from the bottom of each jack foot to the underside of the trailer frame should not exceed 8″.
• The lower two remote buttons are intended for a dump bed or compatible hydraulic trailer function when properly installed.
• Professional installation is recommended for hydraulic and electrical trailer systems.
• Always verify trailer frame height, mounting location, battery location, hose routing, flow divider placement, and hydraulic system layout before installation.

Frequently Asked Questions

What does the 4-button remote control?

The 15′ wired pendant remote is designed for two hydraulic functions. The top two buttons operate the hydraulic trailer jacks, while the bottom two buttons can operate a dump bed or compatible hydraulic function when the system is properly installed.

Can this pump operate both the trailer jacks and dump bed?

Yes. The KTI dual double-acting hydraulic pump is designed to support two hydraulic functions when properly installed and configured.

What is the flow divider used for?

The flow divider helps distribute hydraulic flow between both jack legs during operation. This supports smoother dual-jack movement when the system is properly installed.

What hydraulic fluid should I use?

For normal operating conditions, Dexron III ATF is recommended for this hydraulic trailer jack system. In extremely cold operating environments, a synthetic aircraft-rated hydraulic fluid may be required. MIL-H-83283 is commonly recommended for extreme cold applications. Always confirm fluid requirements for your climate and hydraulic setup before servicing the system.

Do these jacks self-level the trailer?

No. These jacks do not automatically self-level the trailer. They provide hydraulic lifting and lowering, but trailer leveling must still be controlled by the operator.

What is the difference between support capacity and lift capacity?

The 24,000 lb rating refers to the combined support capacity of both jacks, while the 20,000 lb rating refers to combined hydraulic lifting capacity. Support capacity is the static load the jacks are designed to support, while lift capacity is the load the hydraulic system is designed to raise.

Can this kit replace manual crank trailer jacks?

Yes, this kit is commonly used as an upgrade from manual crank trailer jacks. It provides hydraulic lifting and lowering to make heavy trailer hookup, leveling, and support easier.
