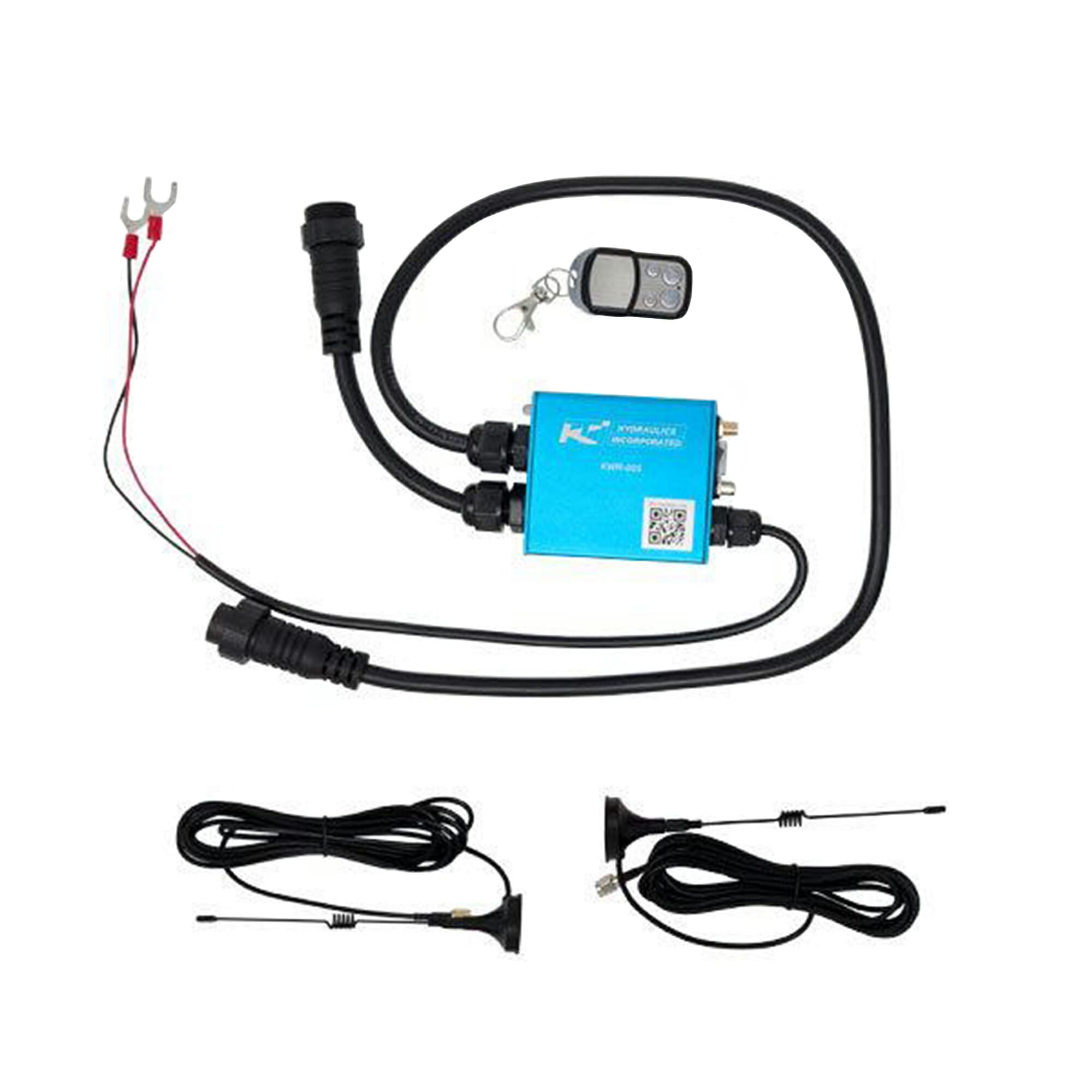

KWR-005 Bluetooth Wireless Controller for KTI Hydraulic Pumps

KWR-005 Bluetooth Wireless Controller for KTI Hydraulic Pumps

At Johnson Trailer Parts, we offer the KWR-005 Bluetooth Wireless Controller for KTI Hydraulic Pumps as a convenient wireless remote kit for compatible KTI hydraulic power units. This controller adds wireless operation for dump trailers, hydraulic scissor hoists, tilt deck trailers, hydraulic trailer jacks, and other trailer hydraulic applications using a compatible KTI pump setup.

The KWR-005 wireless controller is designed for trailers built after January 2015 and provides an operating range of approximately 40 ft with no obstructions. The receiver includes an automatic shut-off feature after 20 minutes of idle time and can be programmed with up to 4 key fobs per receiver.

What’s Included

• Main transmitter
• 23A battery for transmitter
• Main receiver unit
• Detachable Bluetooth antenna
• Detachable 433 MHz antenna
• Antenna mounting screws
• Two 2″ x 2″ Velcro strips
• Installation manual

Key Features

• Wireless Hydraulic Pump Control: Adds convenient wireless operation to compatible KTI hydraulic pump systems.
• Designed for KTI Hydraulic Pumps: Works with compatible KTI pump circuits commonly used on dump trailers and trailer hydraulic systems.
• Approximate 40 ft Range: Provides wireless control range of about 40 ft with no obstructions.
• Programmable Receiver: Receiver can be programmed with up to 4 key fobs.
• Automatic Shut-Off: Built-in receiver shut-off feature activates after 20 minutes of idle time.
• Inline Fuse Protection: Includes an inline 15 amp fuse on the power wire for added circuit protection.
• Battery Connection Ready: Power and ground wires include 5/16″ eyelets for easier battery connection.
• Complete Installation Kit: Includes transmitter, receiver, antennas, battery, Velcro strips, mounting hardware, and installation manual.

Product Specifications

• Part Number: KWR-005
• Product Type: Bluetooth wireless controller / wireless remote kit
• Compatible Use: KTI hydraulic pump circuits on compatible trailer hydraulic systems
• Trailer Compatibility: Designed for trailers built after January 2015
• Wireless Range: Approximately 40 ft with no obstructions
• Receiver Capacity: Can program up to 4 key fobs to one receiver
• Idle Shut-Off: Receiver shuts off after 20 minutes of idle time
• Fuse: Inline 15 amp fuse on power wire
• Power / Ground Wire Length: 24″
• 2-Button Receptacle Connector Wire Length: 14″
• 2-Button Power Unit Connector Wire Length: 32″
• Detachable Antenna Wire Length: 38″
• Power / Ground Eyelets: 5/16″

Common Applications

• Dump trailers
• Hydraulic scissor hoists
• Tilt deck trailers
• Hydraulic trailer jacks
• Dump bodies
• Trailer hydraulic power units
• Compatible KTI hydraulic pump systems

Why Add a Wireless Remote?

A wireless remote controller can make trailer hydraulic operation easier by allowing the operator to control the hydraulic pump from a safer and more convenient working position. This is especially helpful when loading, unloading, positioning a dump bed, operating a tilt deck, or controlling hydraulic trailer functions where better visibility is needed.

The KWR-005 kit is a practical upgrade for compatible KTI hydraulic pump systems and includes the main components needed for installation.

Resources & Documentation

• ⇓ Download KTI KWR-005 Wireless Remote Extended Manual

KTI documentation is provided for customer reference. For additional manufacturer support documents and the latest KTI updates, visit the KTI Hydraulics Support Page.

Need Help With KTI Wireless Remote Compatibility?

Not sure if this KWR-005 Bluetooth wireless controller is the right fit for your KTI hydraulic pump or dump trailer setup? Contact Johnson Trailer Parts before ordering and we can help review your pump, wiring setup, trailer application, and compatibility questions.

Need help with fitment or remote selection? Call Johnson Trailer Parts at (602) 292-9690 or contact us through our website. Our team is available to help customers choose the right hydraulic pump remote, hoist kit, replacement part, or trailer hydraulic component for their setup.
