6′ 10″ Utility Trailer Parts Kit – 5.2k – Model U82-144-52J


Free PDF Utility Trailer Plan Automatically Added to Cart with Purchase of Standard Kit

* Free Shipping to Commercial Address in the Lower 48 States or Freight Terminal Near You, Contact us at 602-292-9690 for Assistant with Freight Terminals near you*

Please Select Shipping Option to Add to Cart.

$899.00$1,524.00

6′ 10″ Utility Trailer Parts Kit – 5.2k – Model U82-144-52J. This kit is Designed for the 6′ 10″ x 12′ Utility Trailer Plans Blueprints – 5,200 lb Capacity.

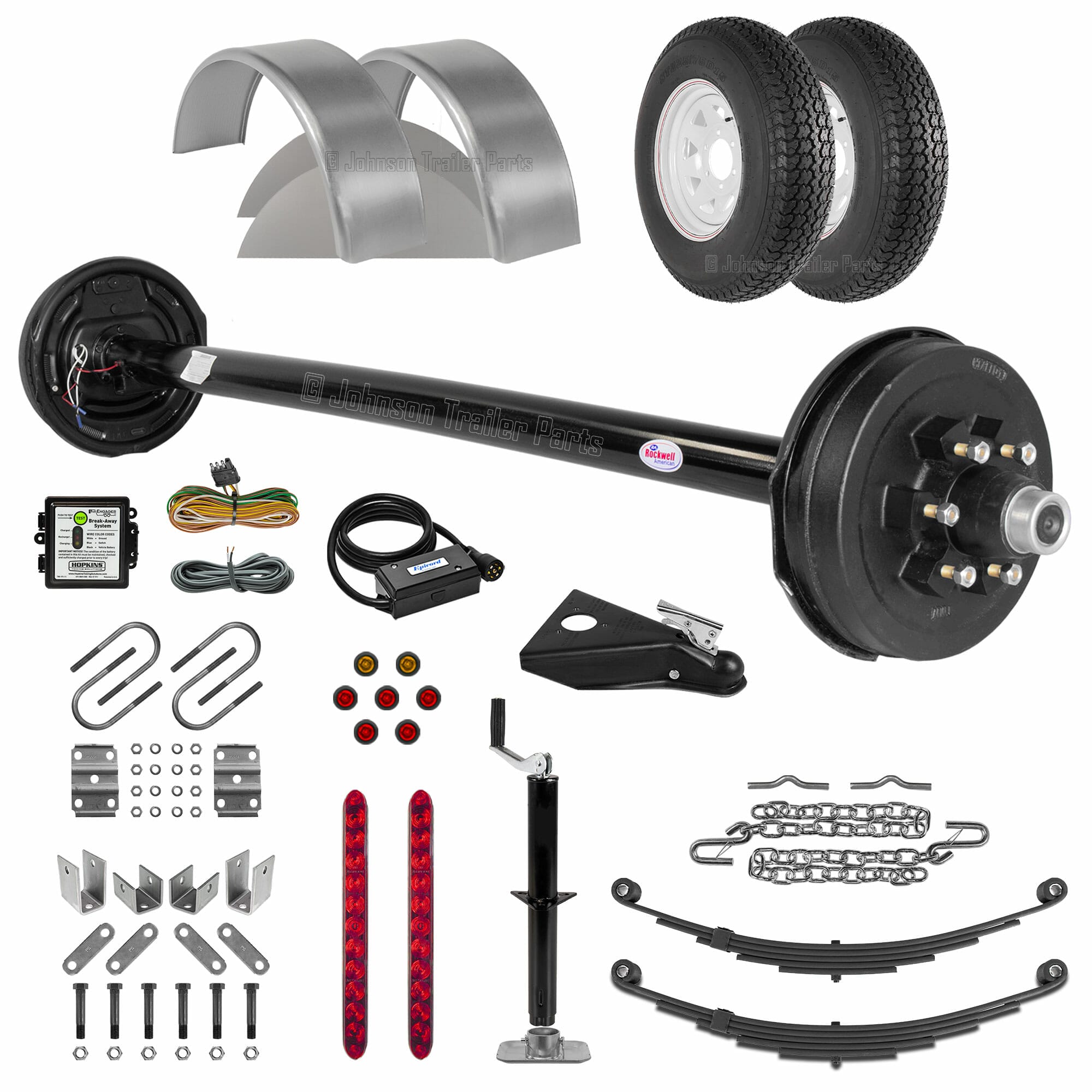

  • Included Components in this 6′ 10″ Utility Trailer Parts Kit – 5.2k – Model U82-144-52J:
    • Standard Kit Includes: (This is the Complete Kit for the 6′10″ x 12′ Utility Trailer Plans)
      • (1) 5,200 lb Rockwell American Electric Brake Trailer Axle. (Cambered)
        • 95″ Hubface – 80″ Spring Center, 655 Bolt Pattern
      • (2) Double Eye Leaf Springs – 1.75″, 2.9K, 5 Lf, 25.25″ I To I, 3″ Arch, .5625″ Eye (SW5)
      • (1) U-Bolt Kit, Round 3″x7″x.5625″-18, Raw w/ U-Bolts, Plates, Washers & Nuts
      • (1) Tall Single Axle Hanger Kit for Double Eye Springs.
      • (2) Single Fenders 9″ x 32″
      • (2) Fender Backs – Pre-cut
      • (1) A-frame Coupler for 2″ Ball, 5K, Black Painted
      • (1) A-frame Jack, Topwind, 5K, 14″ Lift, 10.5″Brkt Ht
      • (1) Jack Foot
      • (2) Safety Chains – 25″ x 30″,  with 1 Hook / Latch, 5.2k
      • (2) Weld-on Safety Chain Anchors
      • Trailer Wiring Kit
        • (1) 20′ Wire Harness with 4 way Plug
        • (1) 15′ Duplex Break Wire
        • (1) Junction Box with 7 way Plug, 7′ Cord
        • (1) Breakaway Kit, 12V, w/ LED Battery Meter, Charger, Switch, Battery & Case
      • (1) TecNiq LED Light Kit
        • (2) 15″ Led Tail Lights
        • (5) 3/4″ Red Grommet Mount Marker Lights
        • (2) 3/4″ Amber Grommet Mount Marker Lights
      • (2) 15″ Bias 8 Ply Trailer Wheels and Tires – Mounted – ST225/75D15 – 655, 2.54k Cap, 4.28″ Pilot
    • Basic Kit Includes:
      • (1) 5,200 lb Rockwell American Electric Brake Trailer Axle. (Cambered)
        • 95″ Hubface – 80″ Spring Center, 655 Bolt Pattern
      • (2) Double Eye Leaf Springs – 1.75″, 2.9K, 5 Lf, 25.25″ I To I, 3″ Arch, .5625″ Eye (SW5)
      • (1) U-Bolt Kit, Round 3″x7″x.5625″-18, Raw w/ U-Bolts, Plates, Washers & Nuts
      • (1) Tall Single Axle Hanger Kit for Double Eye Springs.
      • (1) A-frame Coupler for 2″ Ball, 5K, Black Painted
      • (1) A-frame Jack, Topwind, 5K, 14″ Lift, 10.5″Brkt Ht
      • (1) Jack Foot
      • (2) Safety Chains – 25″ x 30″,  with 1 Hook / Latch, 5.2k
      • (2) Weld-on Safety Chain Anchors






Important Information:

Free delivery to shipping terminal or commercial/ business location near you. Utility Trailer Parts Kits will be delivered on a shipping pallet. Residential (UPS,FedEx, Lift Gate) deliveries Will Require an additional fee. Please contact us for more details.





This Kit can be Modified to Better Suit Your Needs. Please contact us if you have any questions we can assist you with. (602) 292-9690 (602) 292-9690

Need help with wiring a trailer? Check out our Trailer Wiring Diagrams.
