6′ × 10′ Utility Trailer Plans – 3,500 lb GVWR

Product Overview

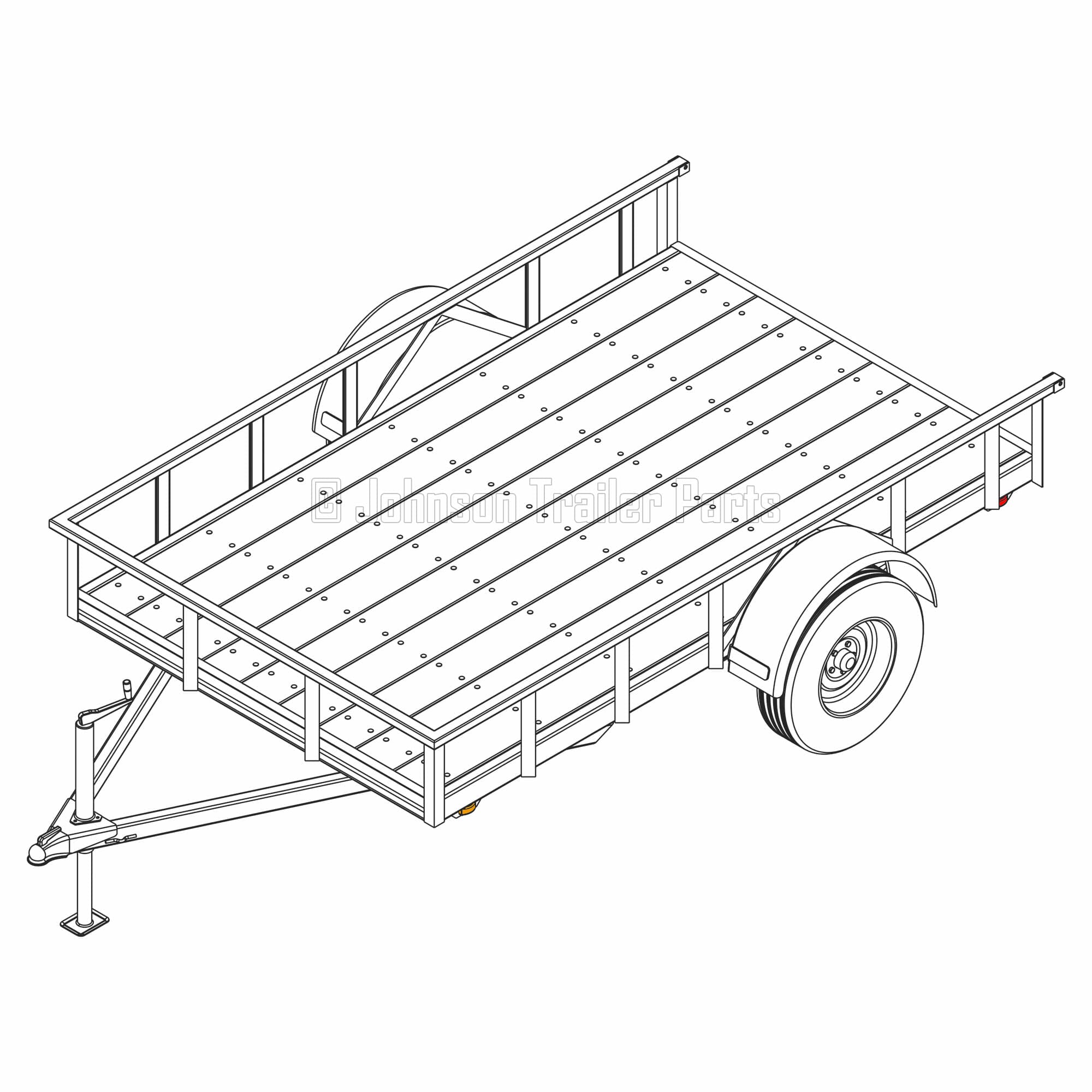

Build your own 6′ × 10′ Utility Trailer with the professionally engineered U72-120-35J Utility Trailer Plans. Designed for a maximum 3,500 lb Gross Vehicle Weight Rating (GVWR), this versatile single-axle utility trailer is ideal for hauling ATVs, UTVs, motorcycles, lawn equipment, landscaping supplies, building materials, furniture, and general cargo.

The trailer features a nominal 6′ × 10′ bed with approximately 72″ between the side rails, providing additional cargo width while remaining easy to tow and maneuver. Its rugged welded steel frame uses 2″ × 4″ rectangular tubing side rails, 4″ C-channel front and rear crossmembers, and a heavy-duty A-frame tongue for excellent strength, durability, and towing stability.

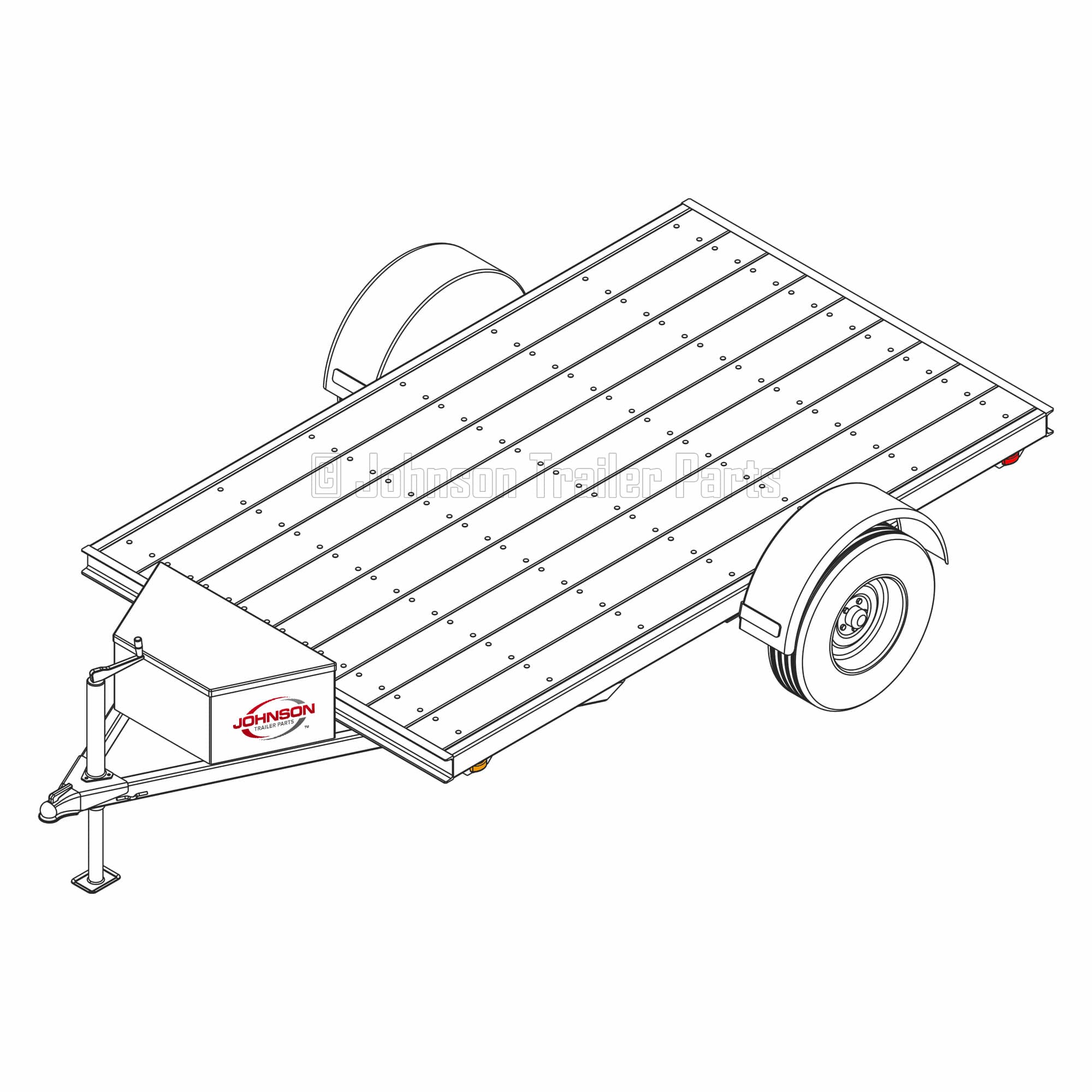

Designed with flexibility in mind, the plans include numerous builder-selectable options including multiple side configurations, hinged tailgate or loading ramp designs, cambered or drop axle configurations, several decking choices, and practical construction tips. Whether you’re building a utility trailer for work, recreation, property maintenance, or everyday hauling, these plans provide a durable foundation that can be customized to suit your specific needs.

---

Complete Plan Package Includes

Plan Model: U72-120-35J

• 23 pages of detailed engineering drawings
• 14 pages of illustrated instructions, material lists, purchased components lists (BOM), engineering considerations, and practical building guidance
• Complete Material Cut List
• Purchased Components List (BOM)
• Frame Construction Details
• A-Frame Tongue Construction
• Axle, Suspension, and Coupler Installation Information

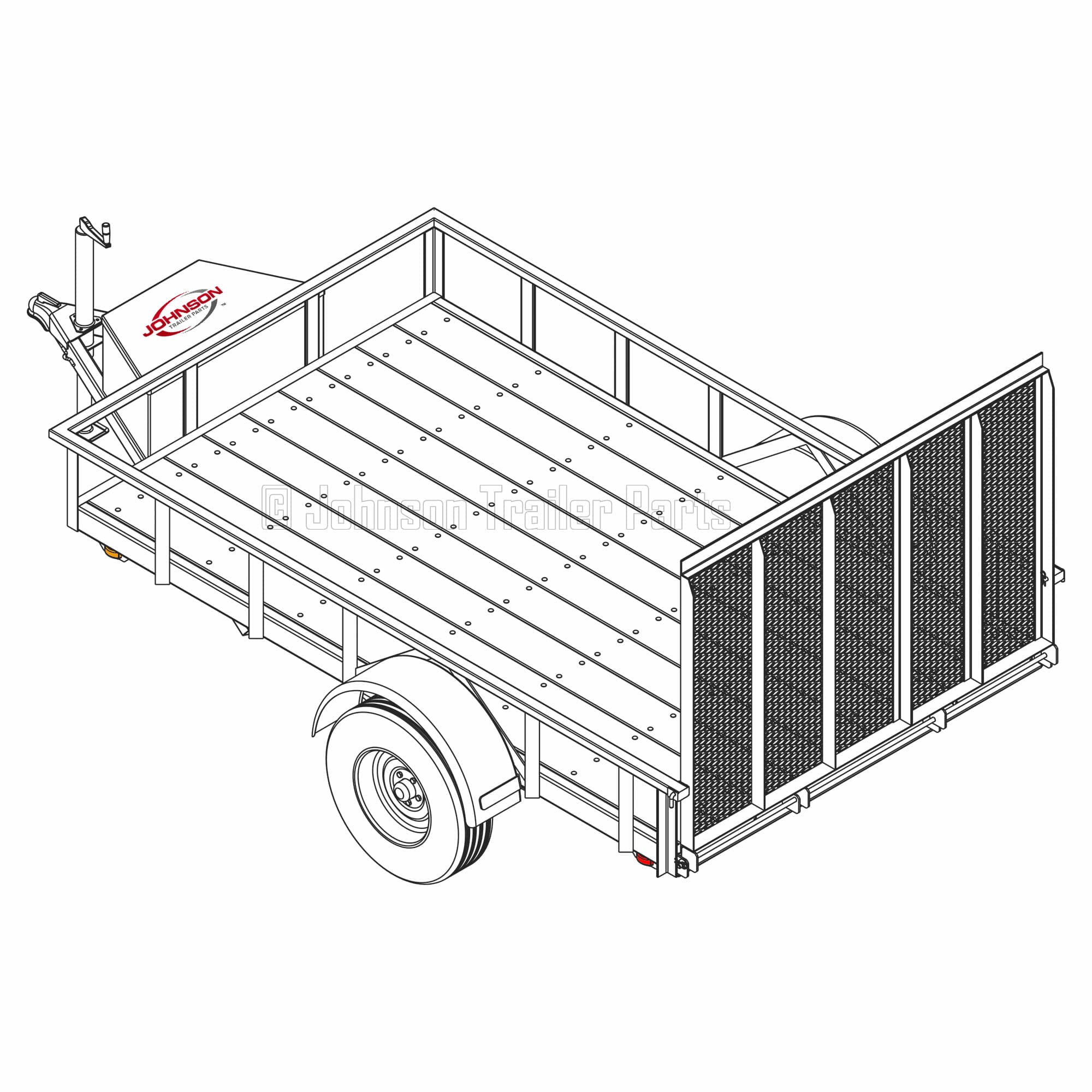

• Multiple Side Panel Configurations

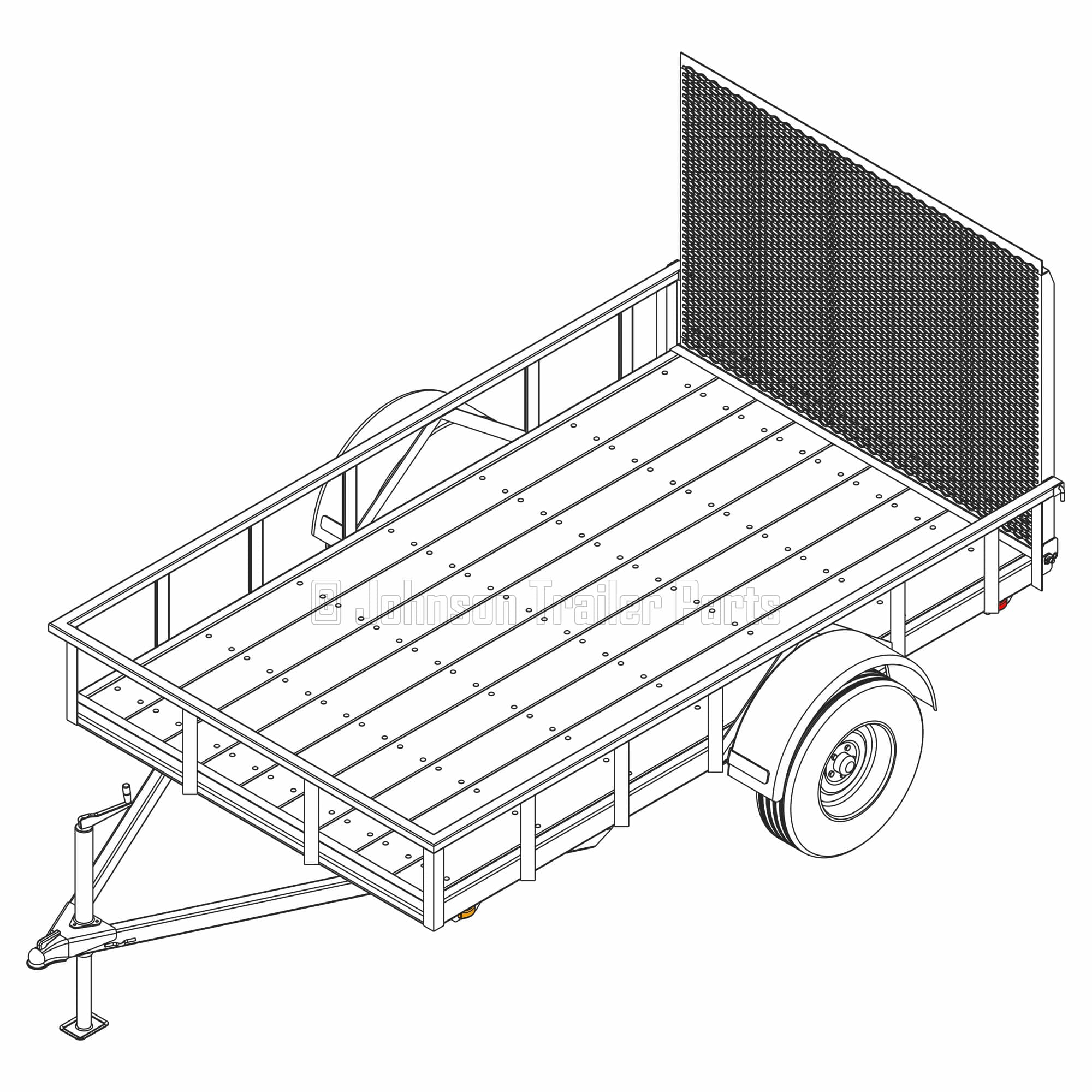

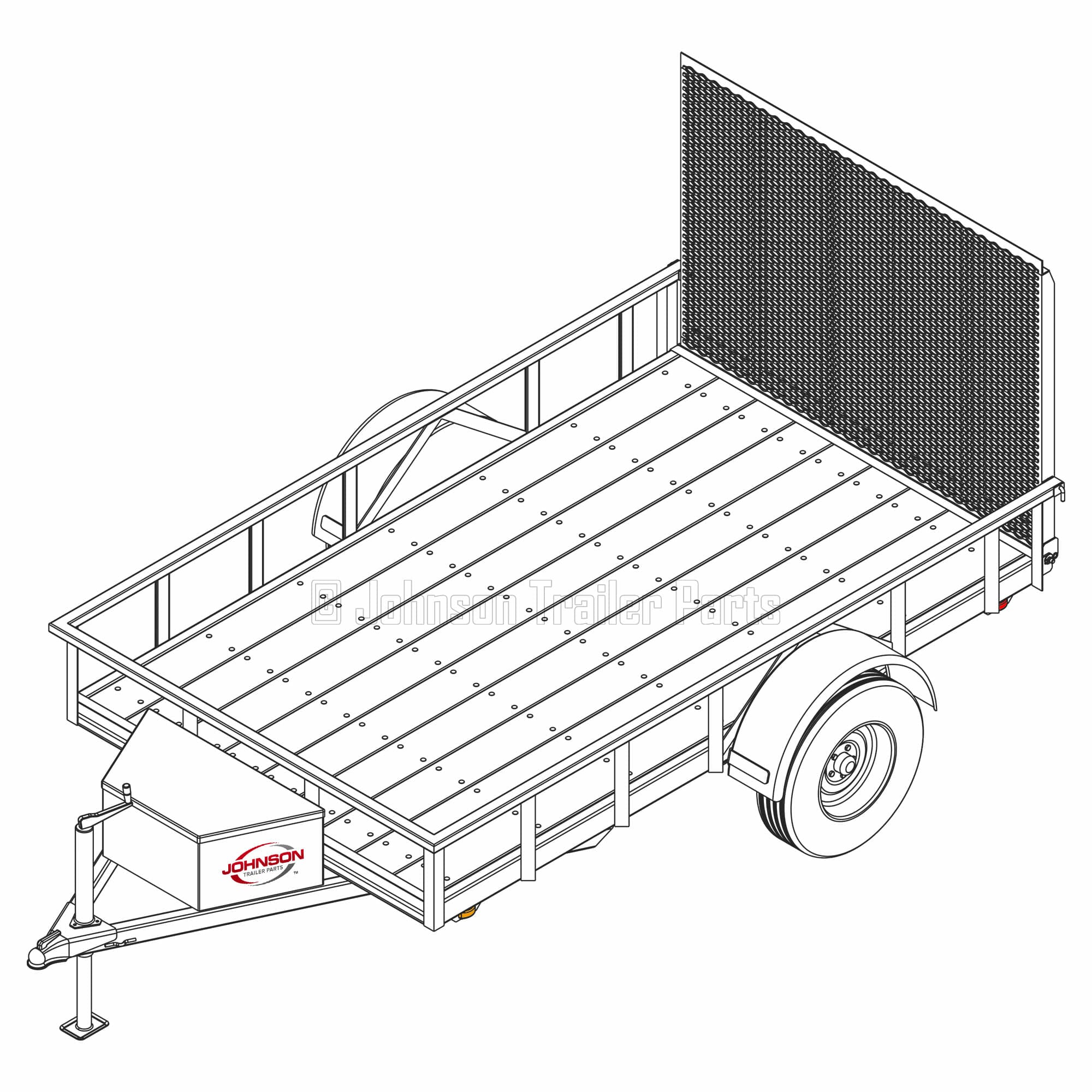

• Hinged Tailgate and Loading Ramp Options

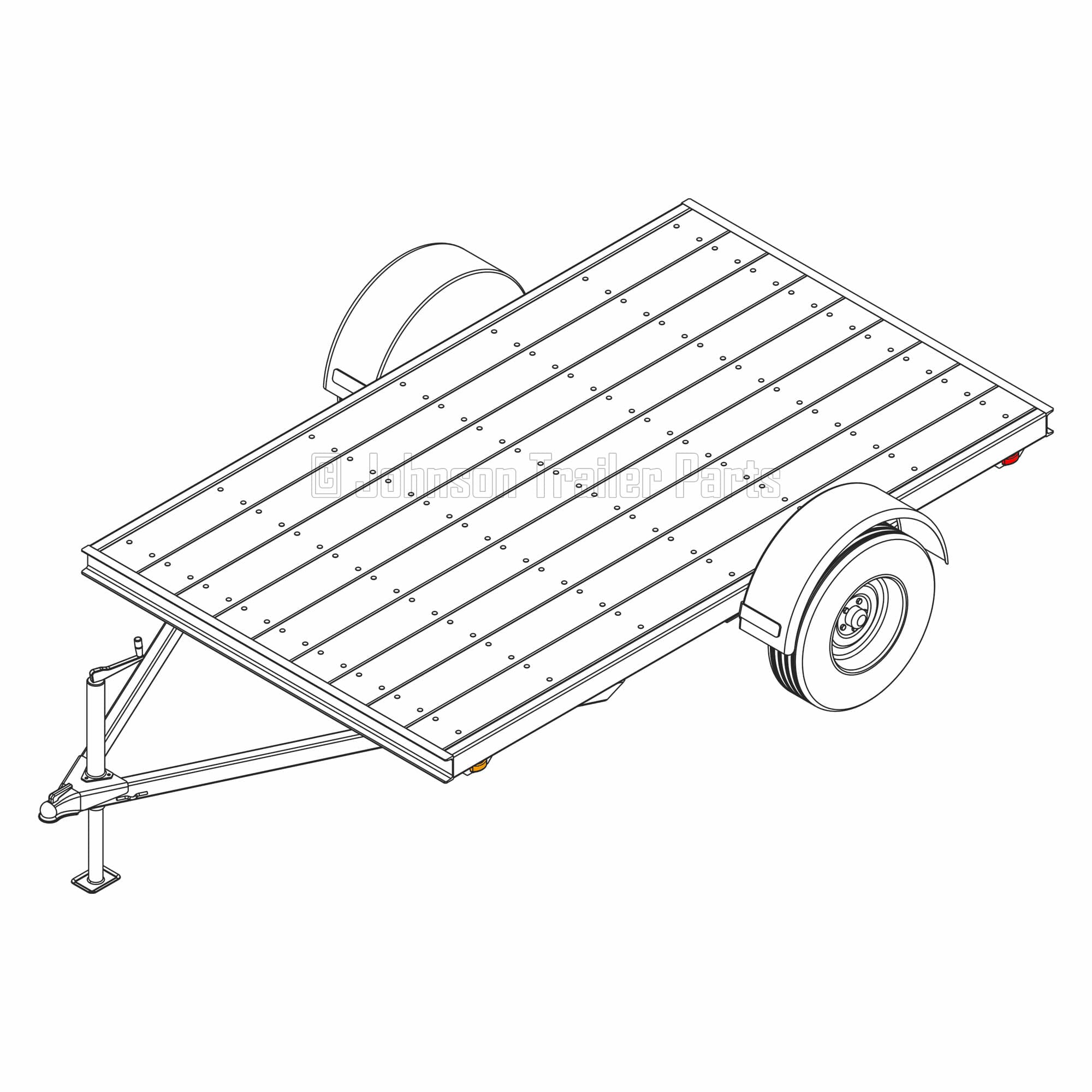

• Cambered or Drop Axle Layout Options
• Multiple Decking Material Options
• Trailer Towing Tips and Practical Building Guidance

Steel, axle, suspension, coupler, jack, lighting, wheels, tires, decking, hardware, and fabrication materials are NOT included with the plans. A matching 6′ × 10′ Utility Trailer Parts Kit is available separately and was designed specifically for the U72-120-35J trailer plans.

---

Available Plan Formats

Instant PDF Download

Download your plans immediately after checkout and begin preparing your trailer build right away. The downloadable ZIP file includes the complete engineering drawing package, illustrated instructions, material information, purchased components list (BOM), engineering considerations, and supporting documents.

Professionally Printed Paper Plans

Prefer working from paper in the shop? Choose our professionally printed plan package.

• Engineering drawings printed on 11″ × 17″ sheets for improved readability
• Instructions printed on standard 8.5″ × 11″ pages
• Shipped flat — never rolled or folded
• Free shipping within the lower 48 states

Important: Printed engineering drawings are provided for reference during construction and should never be scaled for dimensions. Always use the dimensions and measurements provided within the plans.

---

Built for Everyday Work

The U72-120-35J was engineered to be a durable, dependable utility trailer that offers additional cargo width compared to traditional utility trailers. The heavy-duty A-frame tongue provides excellent towing stability, while the welded steel frame is designed to maintain its structural strength whether you build the trailer as a flatbed or add one of the included side configurations.

From landscaping and home improvement projects to hauling ATVs, UTVs, motorcycles, lawn equipment, furniture, building materials, tools, and general cargo, these plans provide a versatile 6′ × 10′ platform that can be configured around the way you intend to use your trailer.

Proper fabrication, welding, material selection, component installation, and load placement remain essential to the safety, durability, and long-term performance of the finished trailer.

---

Customizable Trailer Options

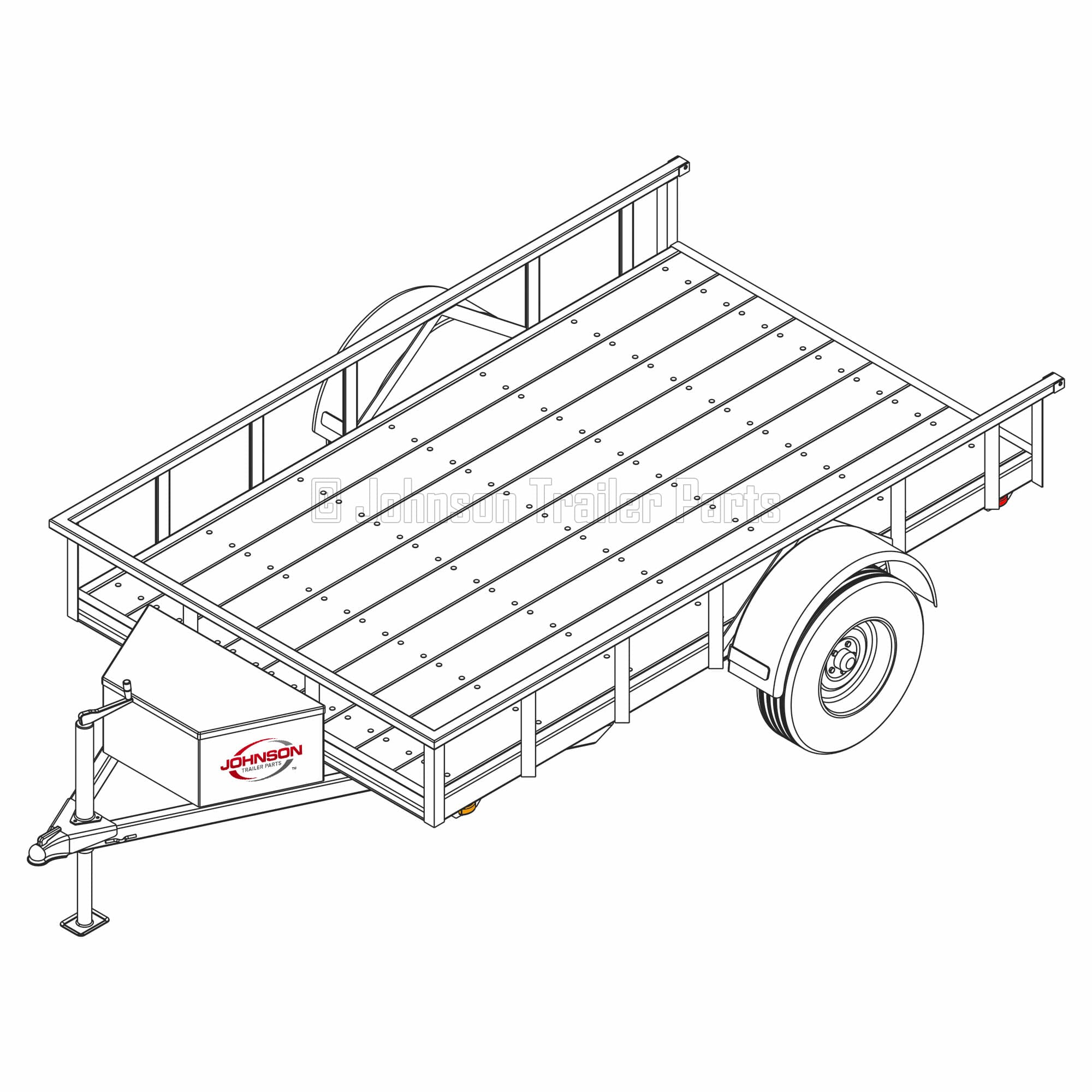

• Multiple Side Configurations
• Hinged Tailgate Option
• Loading Ramp Option
• Cambered or Drop Axle Configurations
• 2″ × 8″ Lumber or Plywood Decking Options
• Multiple Side Height Configurations
• Tie-Down and Cargo Securing Options
• Trailer Towing Tips and Best Practices

The U72-120-35J was designed to be much more than a basic utility trailer. Whether you need a flatbed, landscape trailer, ATV trailer, UTV trailer, motorcycle trailer, equipment trailer, or a dependable utility trailer for everyday work, the plans include numerous builder-selectable options while maintaining the strength of the original engineered frame.

Thinking about modifying the design? Read When Safe to Customize the Plans before making structural changes beyond the included options.

---

Matching Trailer Parts Kit

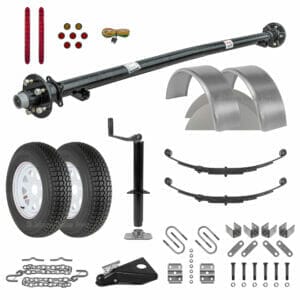

Save time sourcing components with our matching 6′ × 10′ Utility Trailer Parts Kit. Designed specifically for the U72-120-35J, the kit groups together many of the major trailer components needed to complete your build.

View the Matching 6′ × 10′ Utility Trailer Parts Kit

---

Professionally Engineered Plans

These trailer plans were professionally engineered by Synthesis Engineering Services. The engineering package evaluates the trailer frame, heavy-duty A-frame tongue, crossmembers, axle placement, suspension geometry, structural load paths, and connection points to provide a durable, reliable utility trailer designed for years of dependable service.

As with any trailer project, proper material selection, fabrication quality, welding, assembly, maintenance, loading practices, and compliance with applicable laws remain the responsibility of the builder.

---

Recommended Builder Experience

Beginner to Intermediate. Builders should have basic welding, metal fabrication, and trailer assembly experience. Familiarity with axle installation, suspension assembly, coupler installation, safety chains, trailer lighting, and 12-volt trailer wiring is recommended before beginning the project.

---

Understanding Trailer Weight, GVWR, and Payload

These plans are engineered for a maximum 3,500 lb Gross Vehicle Weight Rating (GVWR). GVWR represents the maximum allowable weight of the completed trailer and everything loaded on it, including cargo, accessories, and the trailer itself.

The completed trailer weight varies depending on the materials and options selected during construction. Decking material, side configurations, tailgate or loading ramp design, axle choice, wheels, tires, and other builder-selected accessories will affect the finished trailer weight and available payload.

Available payload can be estimated using the following formula:

GVWR − Actual Completed Trailer Weight = Available Payload

For the most accurate payload calculation, weigh the completed trailer on a certified vehicle scale after construction. Always stay within the ratings of the trailer frame, axle, suspension, wheels, tires, coupler, hitch, and all installed components.

---

Frequently Asked Questions

What is included with these utility trailer plans?

Each plan package includes professionally engineered drawings, illustrated step-by-step instructions, material cut lists, purchased components lists (BOM), engineering considerations, and practical building guidance to help you successfully build your trailer.

Are trailer parts included with the plans?

No. The plans include the engineering documentation only. Steel, axle, suspension, coupler, jack, wheels, tires, lighting, decking, hardware, and other trailer components are sold separately. A matching 6′ × 10′ Utility Trailer Parts Kit is available separately.

Can I customize the trailer?

Yes. These plans include multiple builder-selectable options including side configurations, hinged tailgate or loading ramp designs, decking materials, and cambered or drop axle configurations. Before making structural modifications beyond the included options, we recommend reading When Safe to Customize the Plans.

Can I use either a straight or drop axle?

Yes. The plans include provisions for either a standard cambered straight axle or a drop axle configuration, allowing you to build the trailer with the deck height that best fits your application.

Can I build the trailer with a loading ramp instead of a tailgate?

Yes. The plans include both hinged tailgate and loading ramp options, allowing you to choose the configuration that best fits your hauling needs.

Will the trailer fit 4′ × 8′ building materials?

Yes. With approximately 72″ between the side rails, the trailer easily accommodates standard 4′ × 8′ sheets of plywood, OSB, drywall, and other building materials while providing additional cargo width and length for larger loads.

Are the plans available as both PDF and printed copies?

Yes. Choose between an instant PDF download or professionally printed paper plans. Printed plans include 11″ × 17″ engineering drawings and 8.5″ × 11″ instruction sheets, shipped flat with free shipping within the lower 48 states.

What builder experience is recommended?

Beginner to intermediate. Welding and fabrication experience is recommended. The plans provide detailed engineering drawings and illustrated instructions, but builders should be familiar with basic welding, trailer assembly, suspension installation, coupler installation, and 12-volt trailer wiring.

---

Why Choose Johnson Trailer Parts?

Johnson Trailer Parts has been helping customers build and maintain trailers since 2000. We offer professionally engineered trailer plans, matching trailer parts kits, trailer axles, suspension systems, lighting, hydraulic components, and thousands of trailer parts backed by knowledgeable customer support before and after the sale.

Whether you’re building your first utility trailer, upgrading your equipment, or adding another dependable trailer to your fleet, we’re committed to providing quality products, dependable service, and the technical support you need to complete your project with confidence.

---
