6’10” x 16′ Utility Trailer Plans – 12k to 16k
Build your perfect heavy-duty utility trailer with our 6’10” x 16′ plans. Choose from 12,000 lbs, 14,000 lbs or 16,000 lbs capacity, with numerous configuration options to suit your needs.
$29.99 – $39.99
Build your ultimate heavy-duty flatbed trailer with our 6’10” x 16′ Industrial Heavy-Duty Utility Trailer Plans, expertly engineered by Mechanical Elements. As our most robust utility trailer, it’s designed for continuous heavy-duty use and can be customized to your specific needs with a range of capacities from 12,000 lbs to 16,000 lbs. These plans include comprehensive instructions and multiple configuration options to ensure a perfect build.
A trailer parts kit for this 6’10” x 16′ Industrial Heavy-Duty Utility Trailer will be available soon on our website. If you need the kit sooner, please contact us.
Specifications:
- Model: 7x16ds9016 (Mu716DS90)
- Bed Size: 6’10” x 16′ nominal (see specs tab for more information)
- Axle Type: Tandem axles with leaf springs (eye-eye style or slippers)
- Load Capacity: 12,000 lbs, 14,000 lbs, or 16,000 lbs total
- Frame Material: Welded steel
- Width at Fenders: 102″
- Trailer Weight: Varies based on design options
Design Features:
- Adjustable Bed Dimensions: Narrow the bed or shorten its length using the included instructions. A 14′ bed option is also included.
- Capacity Options: Choose between 12,000 lbs, 14,000 lbs, or 16,000 lbs full trailer capacity.

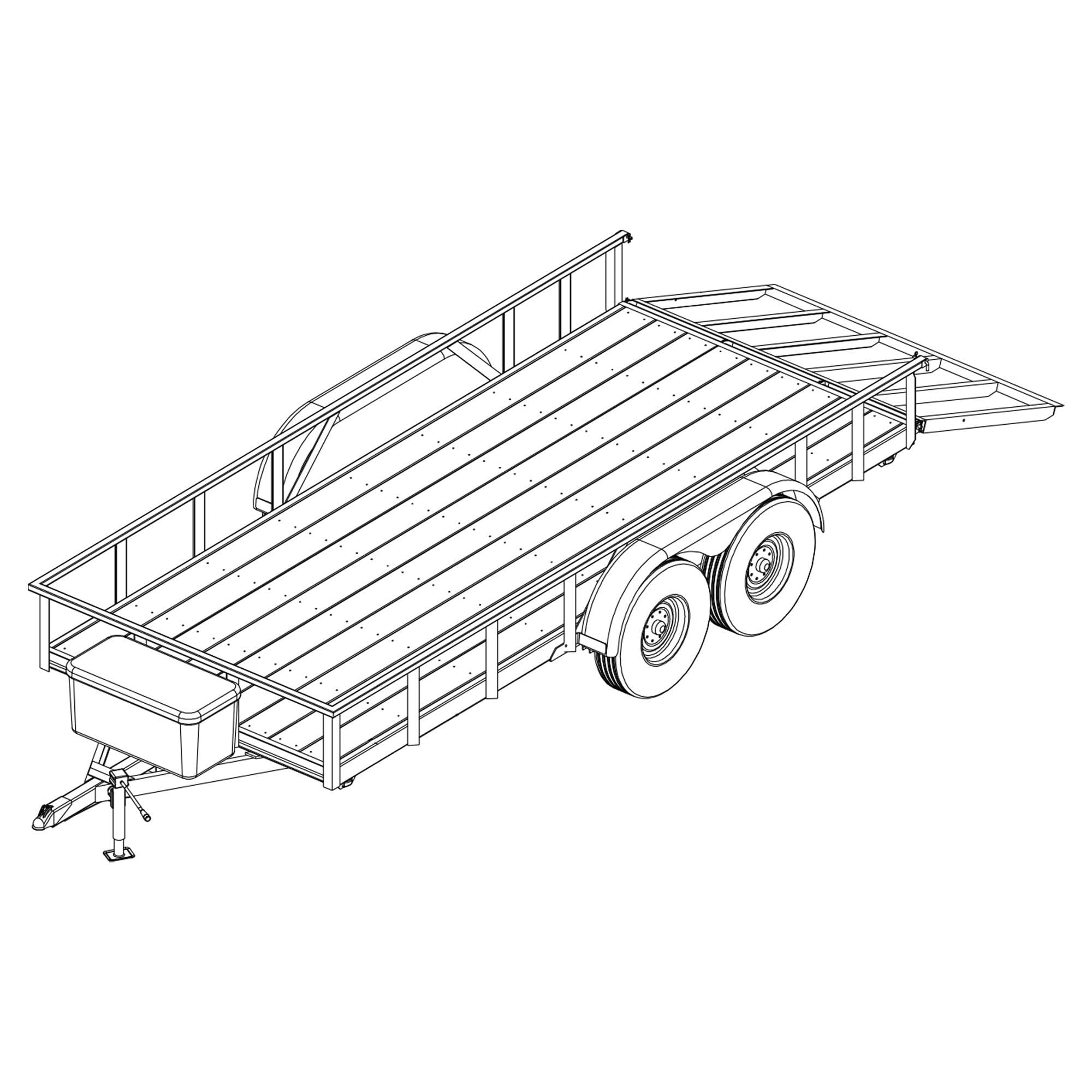

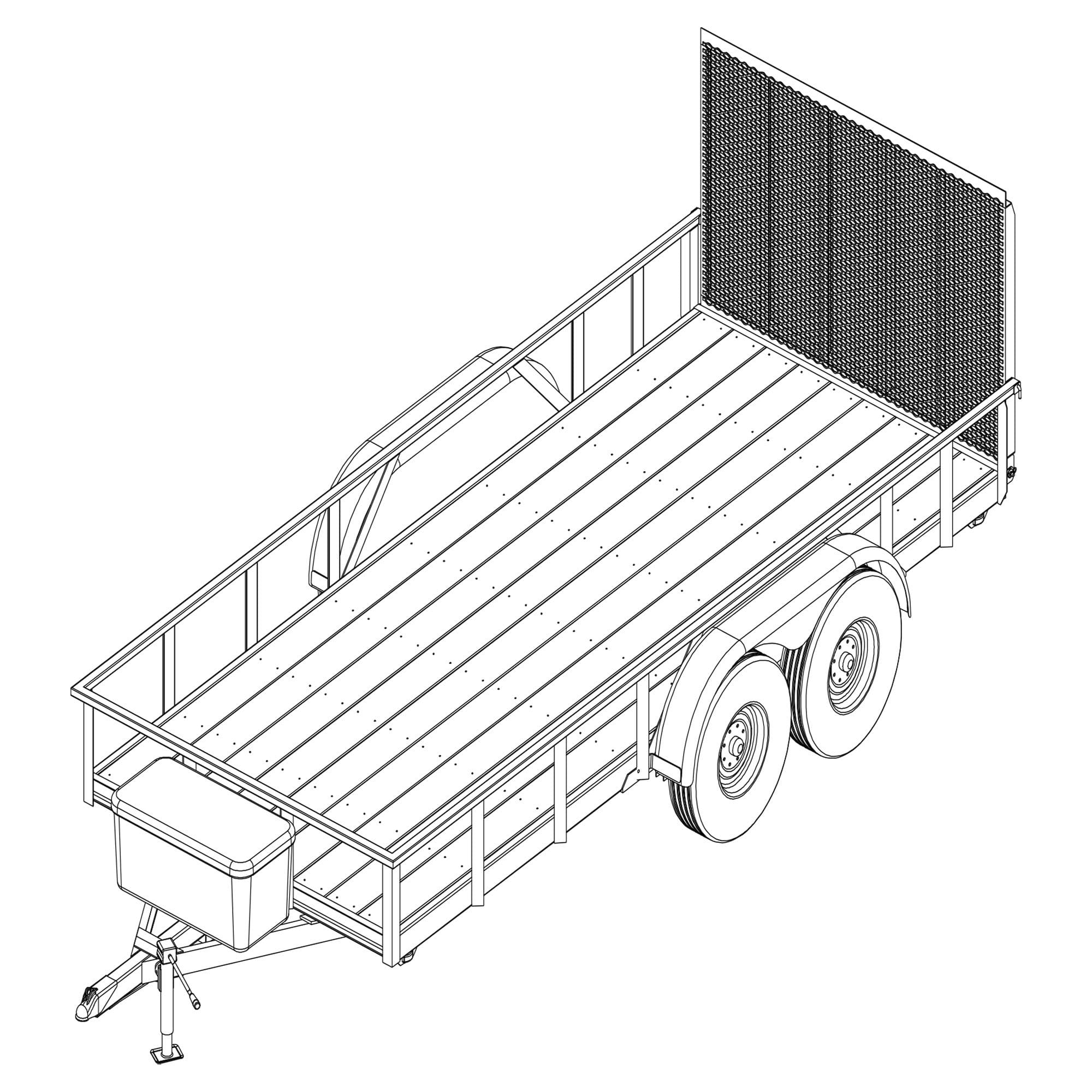

- Ramp Choices: Select a fold-down tailgate/ramp or a removable/hidden ramp that slides under the deck.

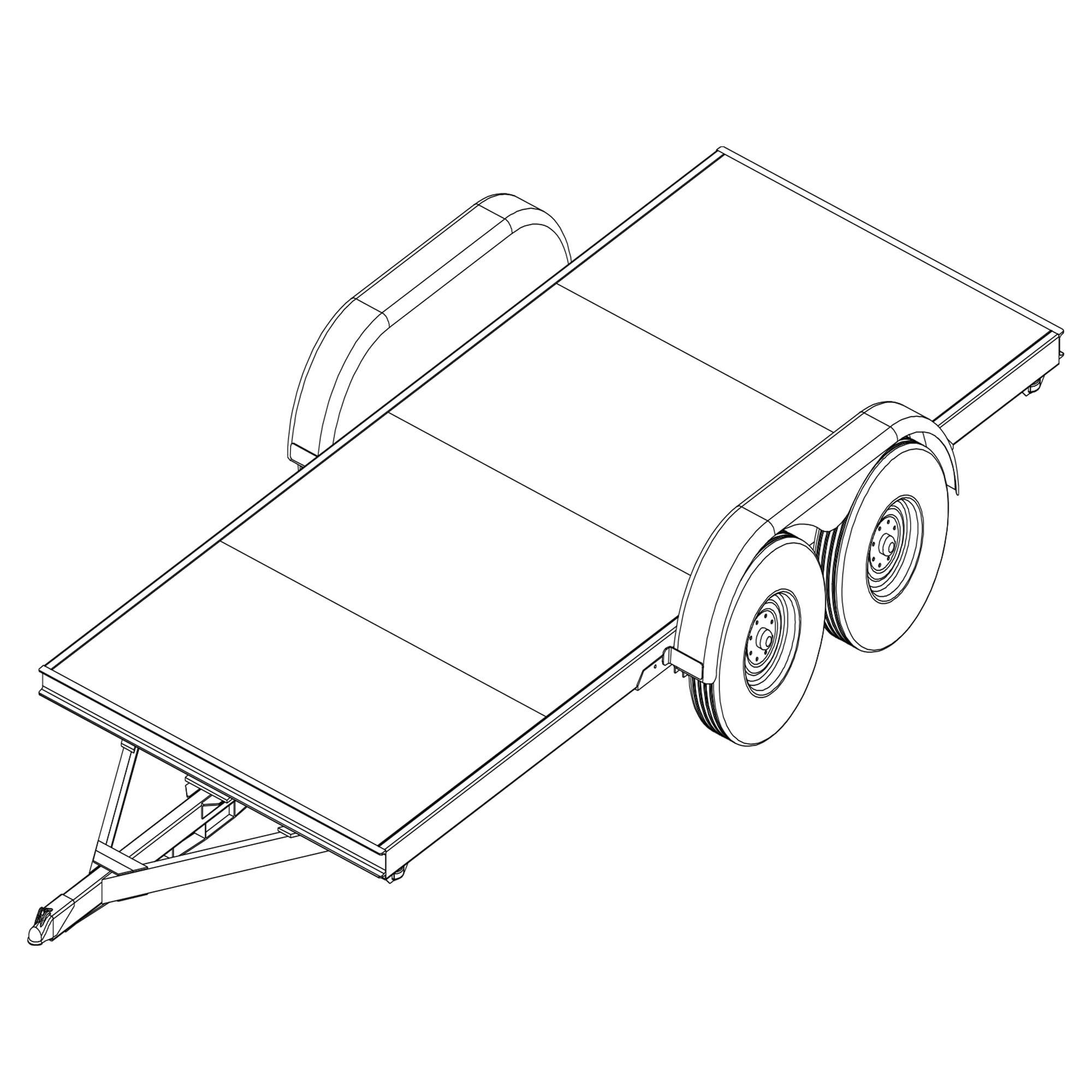

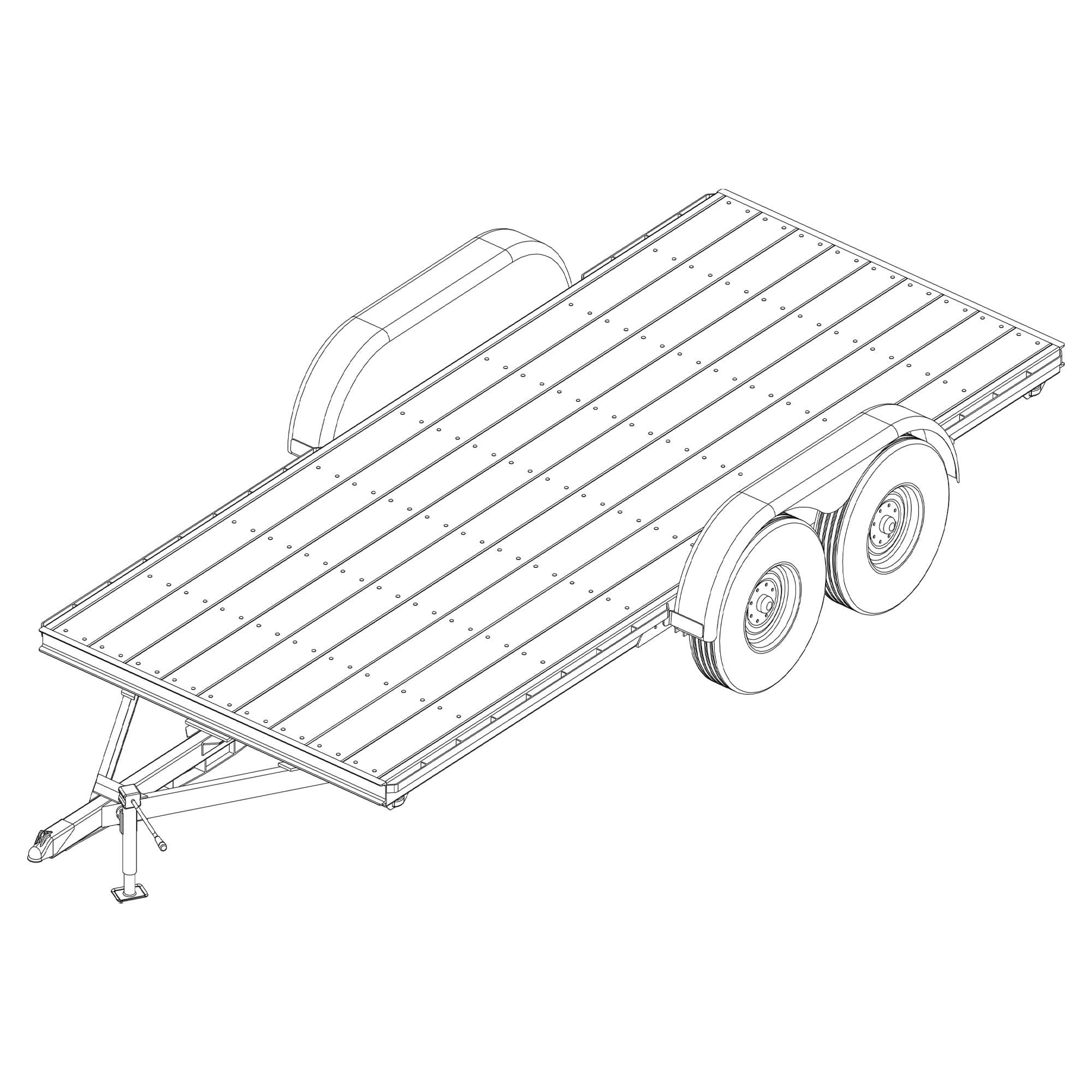

- Versatile Bed and Tie-Down Options: Build a flatbed or add sides and tie-down points as needed.
- Comprehensive Plans: Full set of drawings with illustrated step-by-step instructions.
- Customizable Design: Modify the trailer to fit your unique hauling needs.
Strength:
Our heavy-duty utility trailer plans prioritize strength and durability with a welded steel frame. The robust design ensures the trailer can handle heavy loads and withstand rigorous use, making it perfect for both everyday tasks and more demanding transport needs. These plans were engineered by Mechanical Elements, ensuring top-notch quality and performance.
Customization:
Customize the trailer to your specific requirements. Our plans provide guidance on adjusting the bed size and adding features like sides, gates, or various ramp styles. The flexibility in design allows you to create a trailer that perfectly suits your needs. For more information, check out this article.
Delivery:
- PDF Download: Instantly download the 6’10” x 16′ Industrial Heavy-Duty Utility Trailer Plans in PDF format, printable in various sizes, or viewable on your device. Orders can be downloaded immediately after purchase from our website or confirmation email.
- For convenient download, the Trailer Plans are provided in a .ZIP file. If needed, you can get a free PDF reader from Adobe.com and a free ZIP utility from WinZip.com.
- Paper Copy: Receive the drawings printed on 11″ x 17″ paper and the construction instructions on 8.5″ x 11″ paper, all with free shipping.
Support:
If you accidentally delete your file, contact us for assistance. Our team is available to help you safely modify your trailer and provide guidance to ensure your build is successful.
- Trailer Deck Size: Trailers built from these flatbed trailer plans have an actual bed width of 6′ 10″ and a bed length of 16′ 3.5″, including the steel frame.
- Overall Length: Including the tongue, the overall length is approximately 246″, though this will vary with the options chosen.
- Deck Height: Actual trailer bed height will depend on design options chosen, with typical choices ranging from 20″ up (bed height shown is ~22″ using drop axles).
- Load Capacity: Plans include options for maximum load capacity — 12,000 lbs, 14,000 lbs, or 16,000 lbs (combined axle rating), which includes the trailer weight.
- Trailer Weight: Trailer weight will vary depending on design options. The 14K base flatbed trailer plans are ~1500+ lbs without the deck, and around 1900-2000 lbs with decking. The heavier capacity trailer will weigh more, with decking choices, sides, and other options affecting the weight as well.

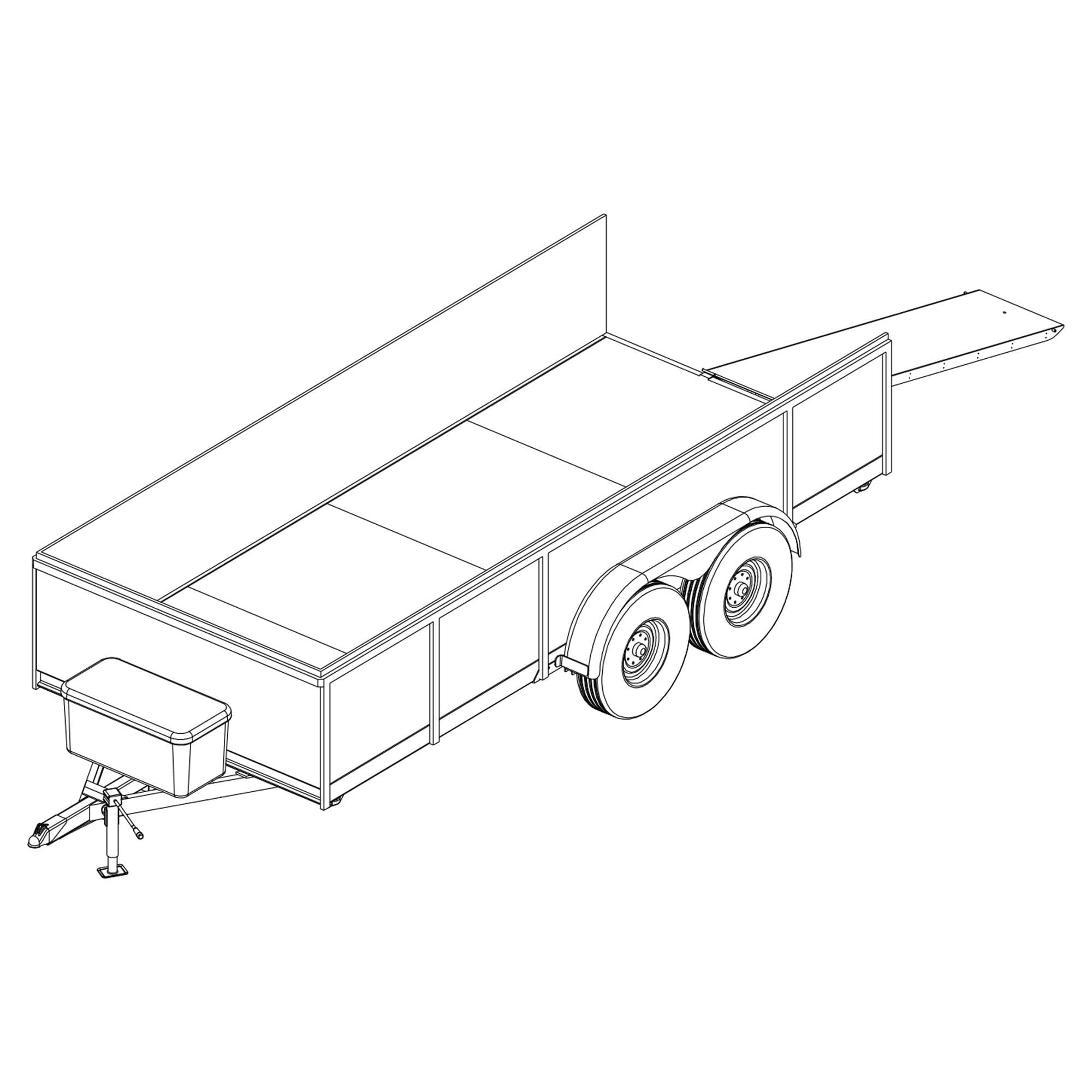

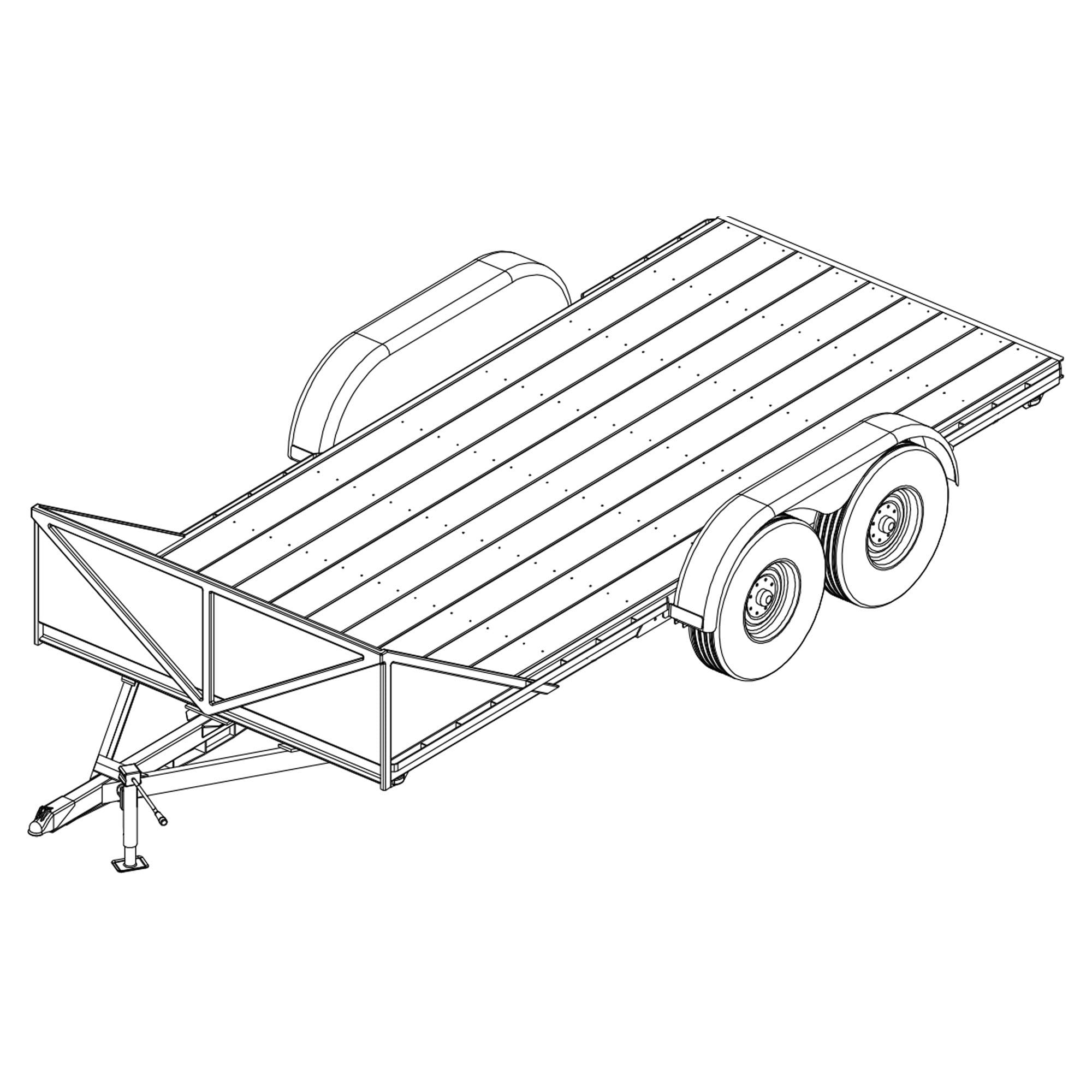

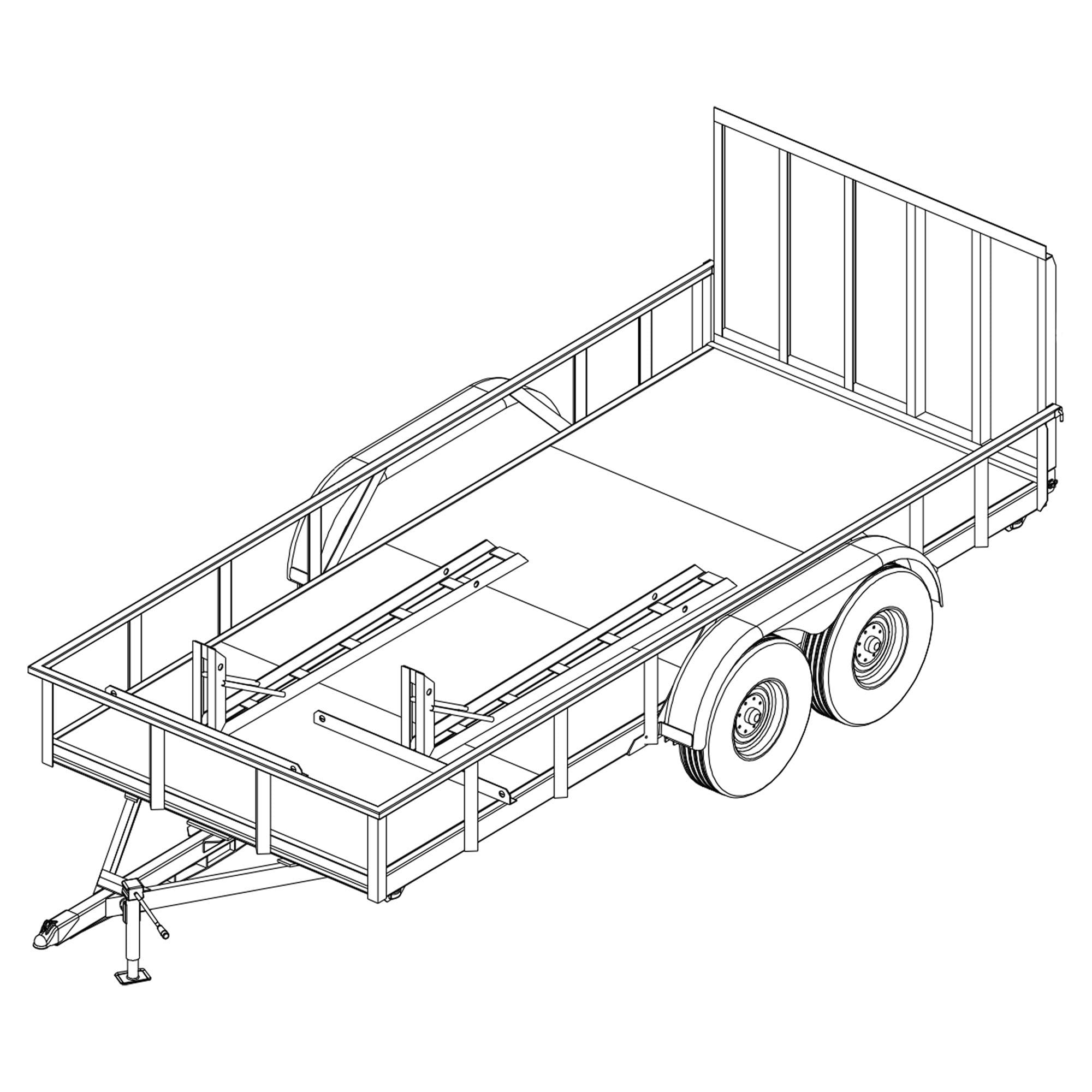

- Options: Lots of options are included in the plans. Features like sides, a tailgate, a mounted toolbox, ramps, motorcycle stands, etc., are available for optional functionality. Some options are mutually exclusive, and not all options are shown in the pictures here.
