Dexter PH310 3 Ton Hydraulic Scissor Power Hoist Kit for 8’–10’ Dump Beds

Dexter PH310 3 Ton Hydraulic Scissor Power Hoist Kit for 8’–10’ Dump Beds

The Dexter PH310 is a genuine Dexter | Premium Supply Power Hoist designed for 8’ to 10’ dump beds requiring dependable lifting power, smooth hydraulic performance, and compact scissor hoist fitment. Rated for 3 tons (6,000 lbs) when properly applied to compatible dump bed applications, the PH310 is the smallest hydraulic scissor hoist in the Dexter | Premium Supply Power Hoist lineup and is a practical choice for compact dump trailers, small dump beds, repair shops, and trailer owners upgrading or replacing a hydraulic scissor hoist system.

Built for smaller dump trailer applications, the PH310 combines a heavy-duty scissor hoist design, corrosion-resistant powder coat finish, and multiple kit configurations to fit a range of trailer builds and charging setups. Whether you are building a new compact dump trailer or replacing an older hoist, the PH310 is designed for reliable lifting performance in real-world hauling conditions.

---

PH310 Performance & Fitment Specifications

• Capacity: 3 Ton (6,000 lb) when properly applied
• Bed Length Compatibility: 8’–10’ dump beds
• Hoist Type: Hydraulic scissor Power Hoist
• Hydraulic Pump: KTI 12V DC electric hydraulic pump / dump trailer hydraulic power unit with single / double-acting functionality on applicable kit levels
• Control: 15’ wired remote with power-up, power-down, and gravity-down operation on applicable kit levels
• Warranty: 36-month standard hoist warranty
• Finish: Corrosion-resistant powder coat

---

Common PH310 Applications

The PH310 is commonly used on 8′ and 10′ dump trailers built for hauling mulch, dirt, gravel, yard debris, landscaping material, property maintenance loads, and other lighter bulk materials. Its compact scissor hoist design provides a stable lifting base and smooth dump bed movement, making it a practical choice for small dump trailers, compact trailer builds, landscaping trailers, farm-use trailers, and custom truck bed conversions.

---

Hydraulic Scissor Lift System for Dump Trailers

The PH310 is a compact hydraulic scissor lift hoist for dump trailers, truck dump beds, and custom dump body builds. It is designed to raise the dump bed from the trailer frame for controlled dumping while providing a stable scissor-style lifting platform.

Whether you are replacing an older dump bed hoist or building a complete dump trailer hydraulic kit, the PH310 delivers dependable 3 ton lifting performance with genuine Dexter | Premium Supply Power Hoist construction and Johnson Trailer Parts fitment support.

---

Dump Trailer Hydraulic Pump & Power Unit

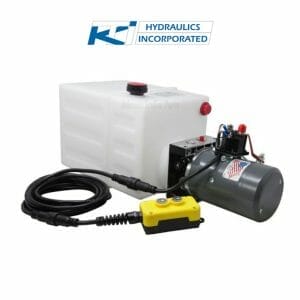

Applicable PH310 kit levels include a KTI 12V DC electric hydraulic pump designed for dump trailer hydraulic systems. This hydraulic power unit supports power-up, power-down, and gravity-down operation, giving trailer builders and owners reliable control of the dump bed during loading, hauling, and unloading.

For customers replacing an older dump trailer pump or building a complete dump trailer hydraulic kit, the PH310 kit options provide a matched hydraulic scissor hoist and pump system with hoses, fittings, control components, and safety hardware included on applicable configurations.

---

PH310 Kit Options and What’s Included

The PH310 is available in Hoist Only, Standard, Deluxe, Premium, Premium HD, and Premium HDX configurations so you can choose the kit that best fits your trailer build, charging setup, and budget.

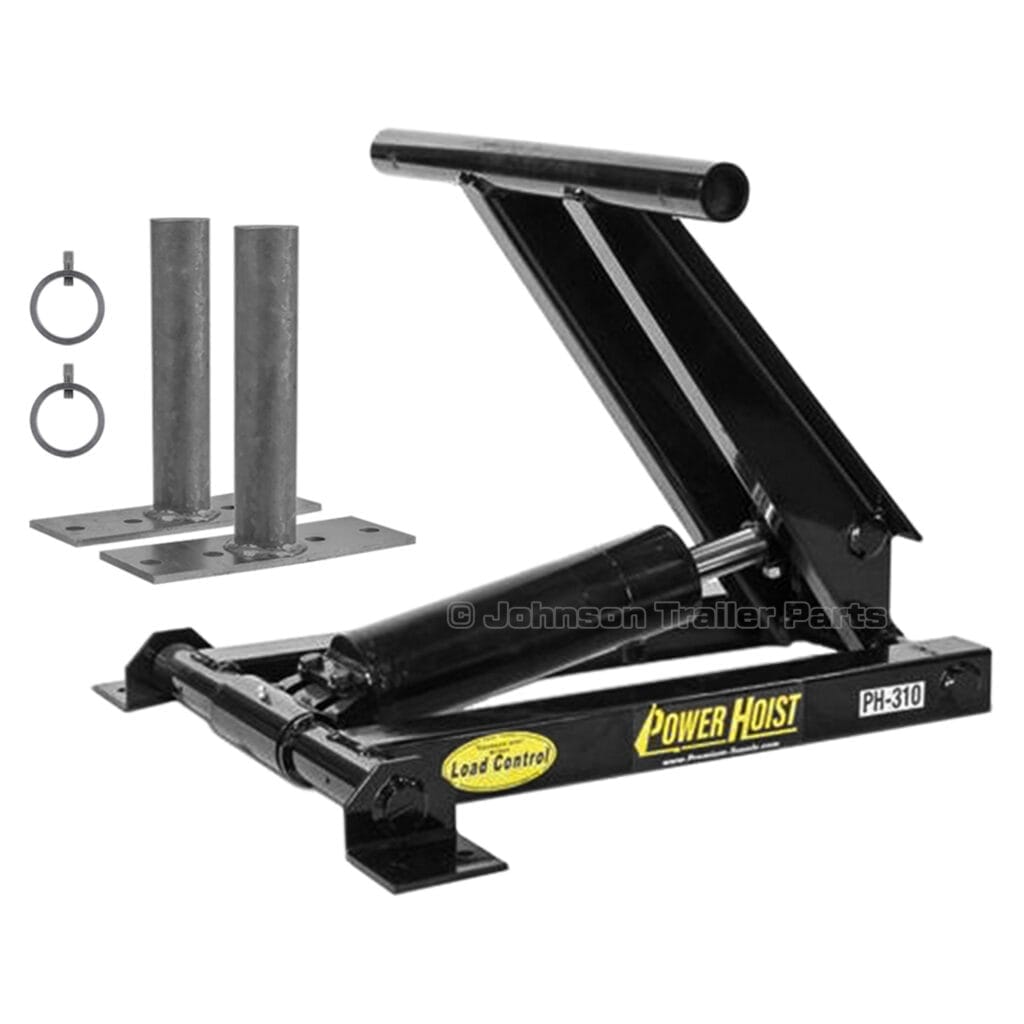

Hoist Only Kit Includes:

• PH310 hoist assembly with steel frame, hydraulic cylinder, and mounting brackets
• Does not include the hydraulic power unit, control, hoses, fittings, electrical components, or charging accessories found in the Standard, Deluxe, Premium, Premium HD, or Premium HDX kits

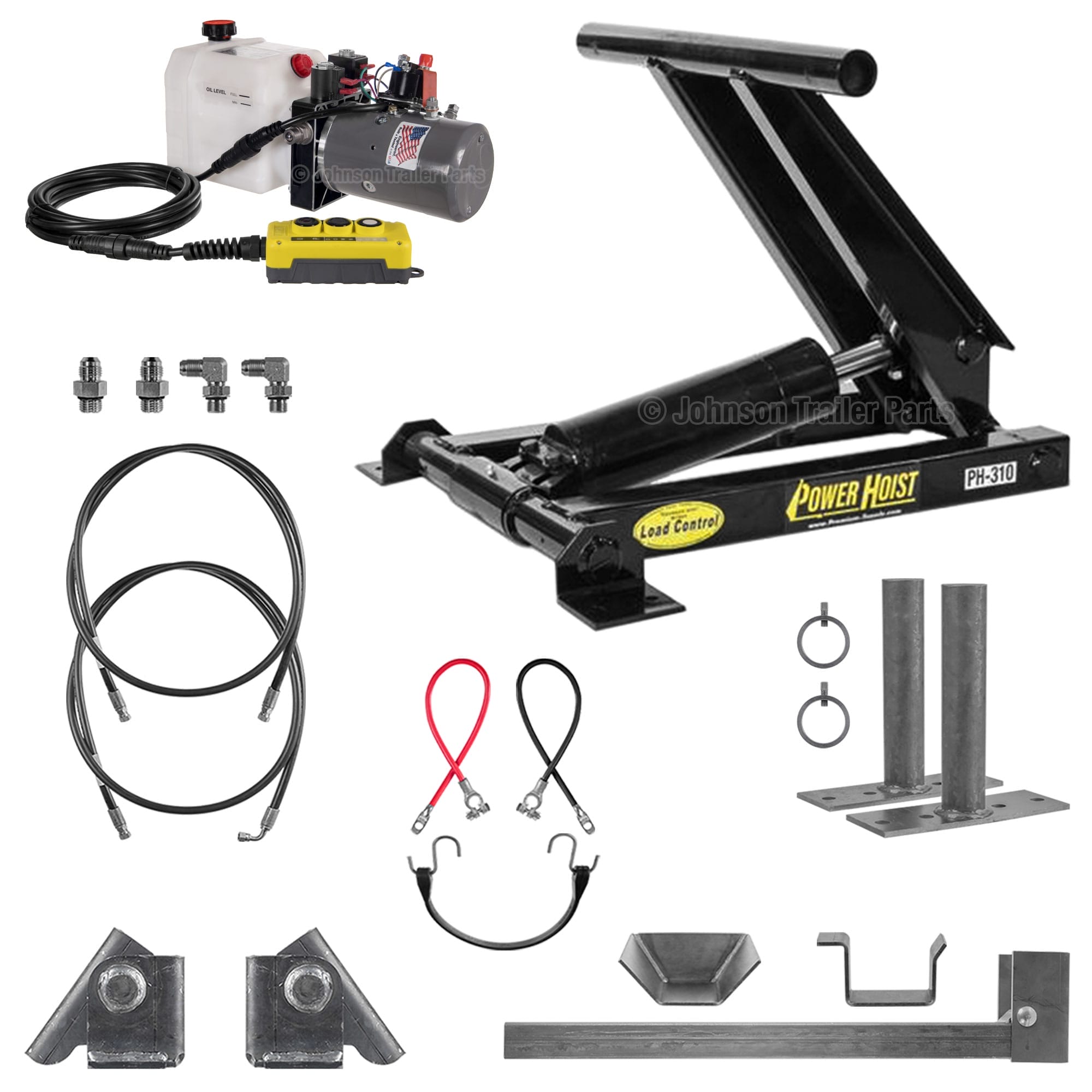

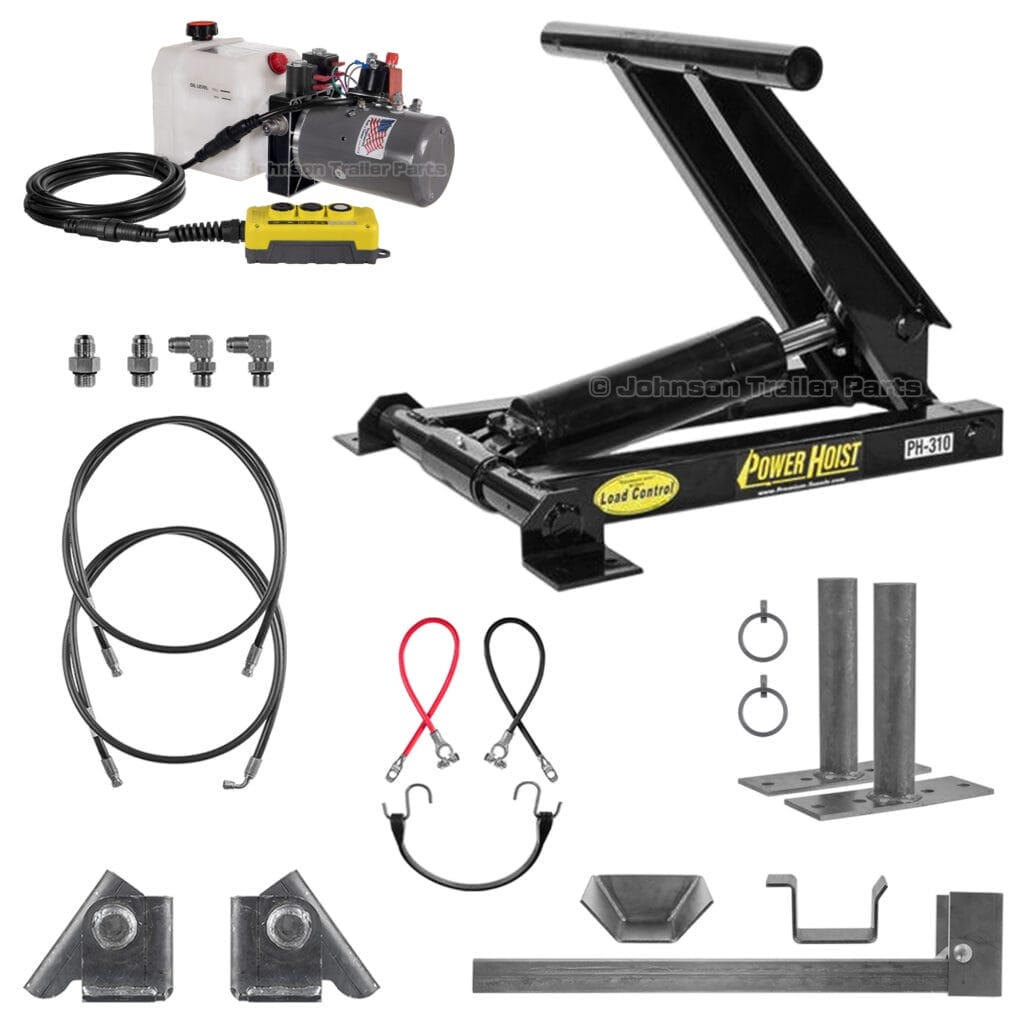

Standard Kit Includes:

• PH310 hoist assembly with steel frame, hydraulic cylinder, and mounting brackets
• KTI 12V DC electric hydraulic pump / hydraulic power unit with single / double-acting functionality for power-up, power-down, and gravity-down operation
• Hydraulic hoses, fittings, and Bridon load control
• Safety arm assembly, including safety arm, cup, and storage bracket
• Dump bed hinges
• Battery cables and rubber strap
• Manual and safety labels

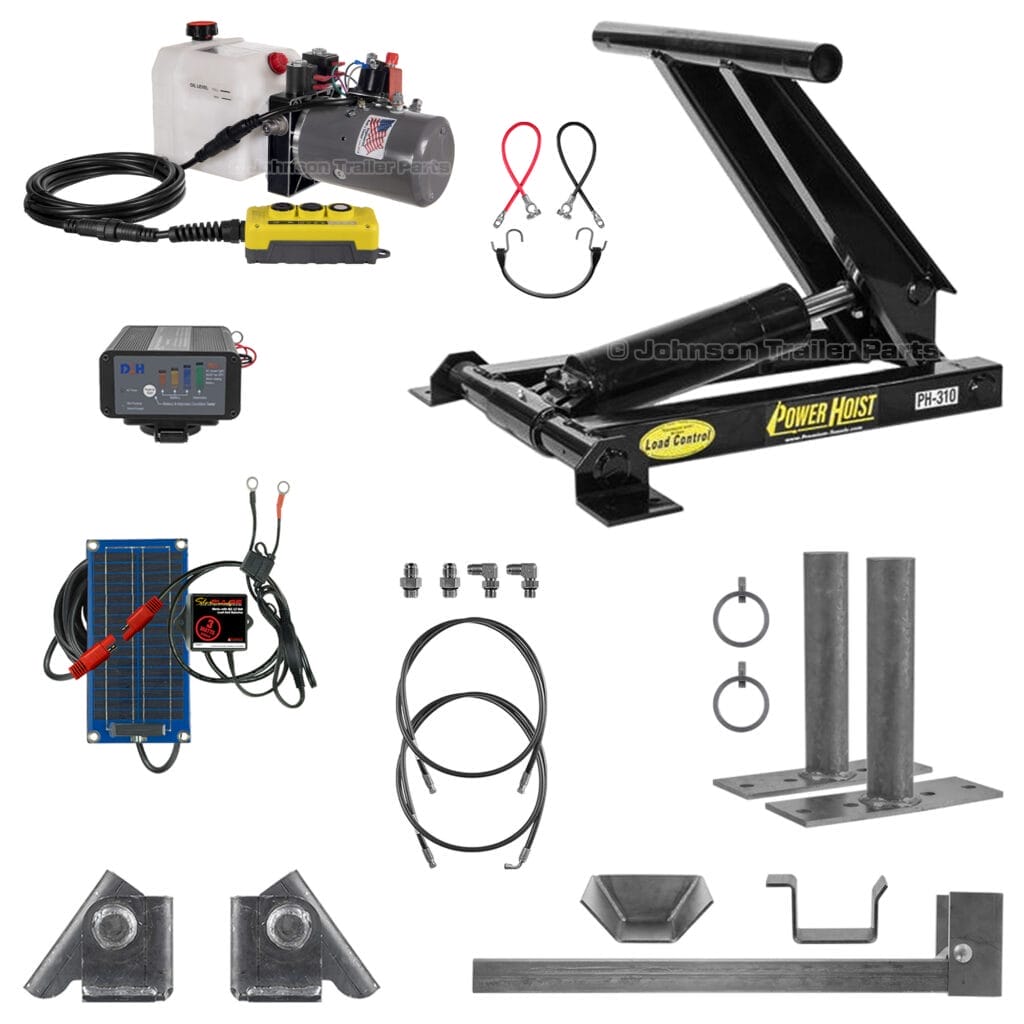

Deluxe Kit Includes:

• All parts listed in the Standard Kit
• 5 amp battery charger
• SP-3 – 3 watt SolarPulse panel

Premium Kit Includes:

• All parts listed in the Standard Kit
• Battery Optimizer Kit
  • 20 amp road charger with 7-way plug
  • 5 amp battery charger
  • SP-3 – 3 watt SolarPulse panel

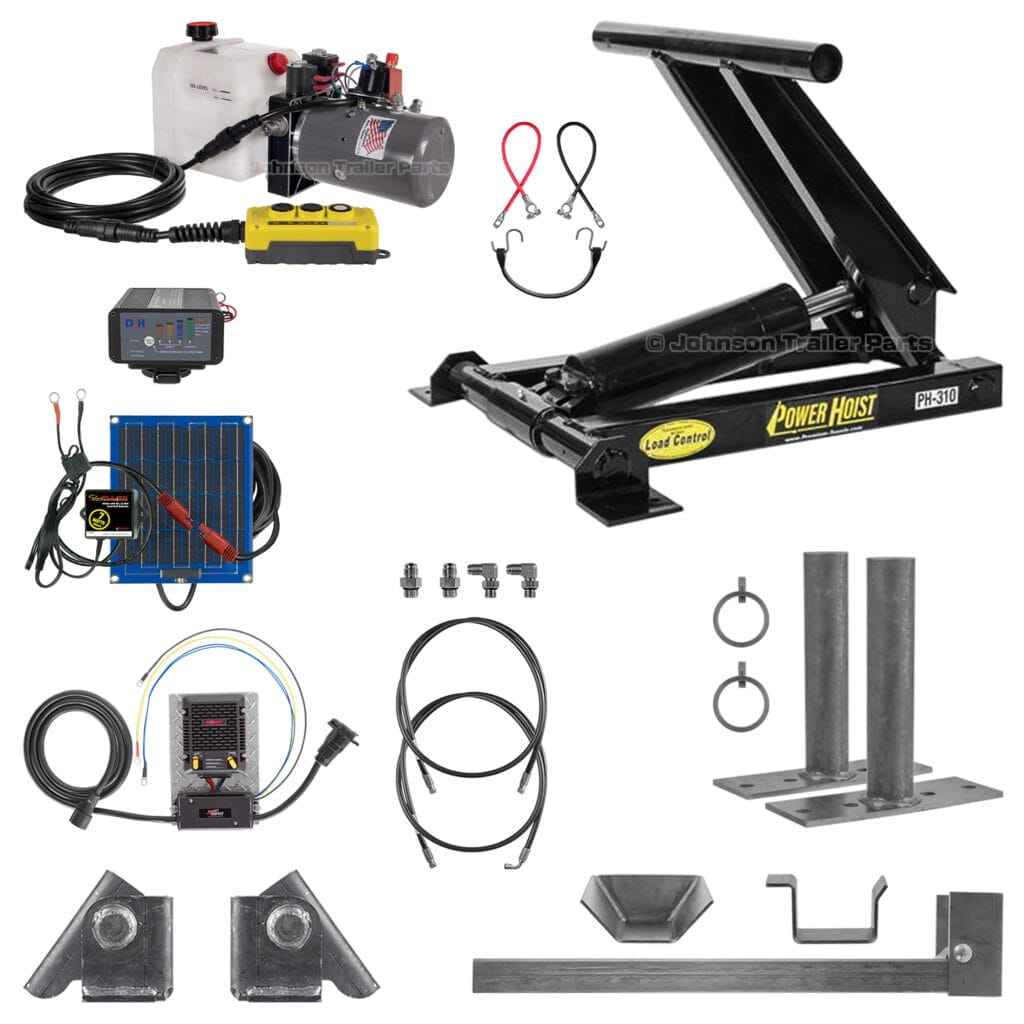

Premium HD Kit Includes:

• All parts listed in the Standard Kit
• HD Battery Optimizer Kit
  • 20 amp road charger with 7-way plug
  • 8 amp battery charger
  • SP-7 – 7 watt SolarPulse panel

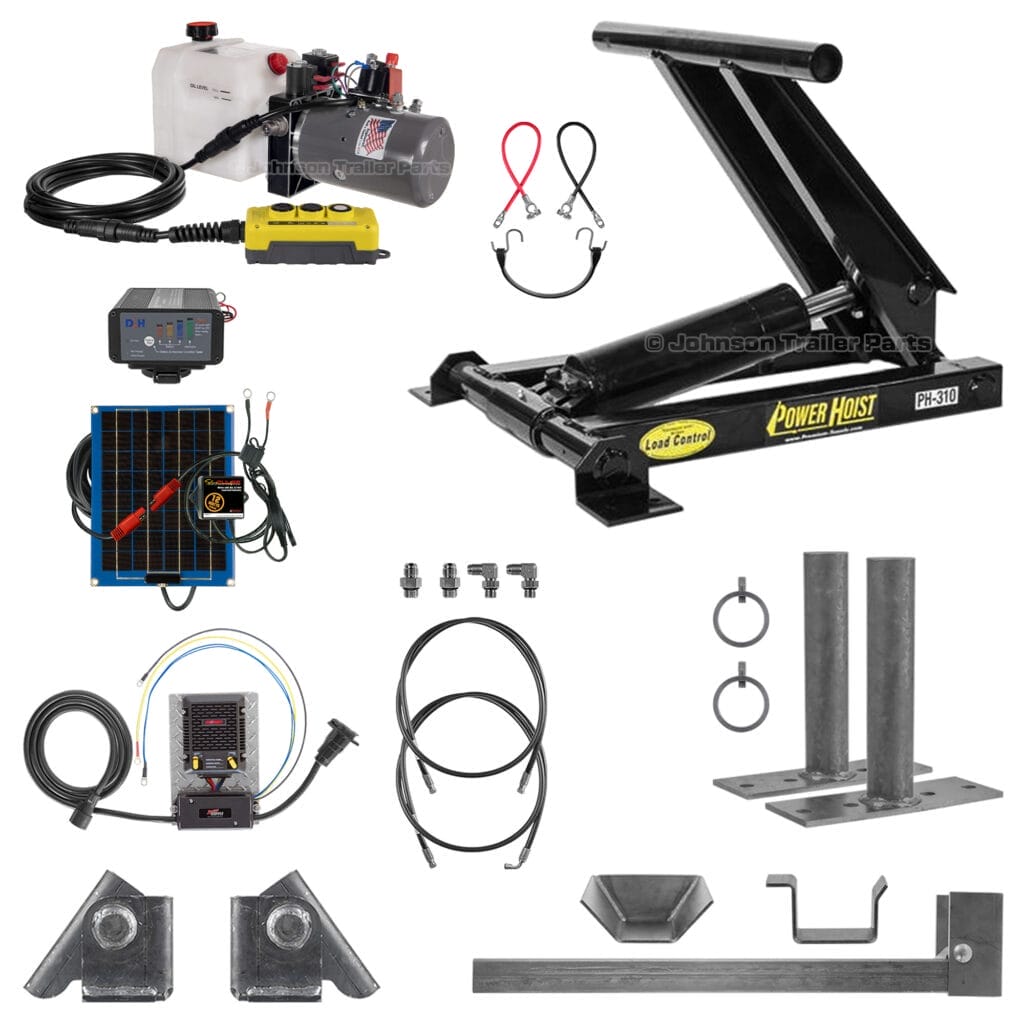

Premium HDX Kit Includes:

• All parts listed in the Standard Kit
• HDX Battery Optimizer Kit
  • 20 amp road charger with 7-way plug
  • 18 amp battery charger
  • SP-12 – 12 watt SolarPulse panel

Pro-Builder Tip: The Standard Kit is our most popular PH310 configuration because it includes the core hydraulic and safety components most small dump trailer builders need for a complete installation.

Need more charging support? The Premium HDX Kit is the most advanced charging package in the PH310 lineup, adding a 20 amp road charger with 7-way, 18 amp battery charger, and SP-12 SolarPulse panel for demanding-use applications.

---

Need a Hoist for a Larger Dump Bed?

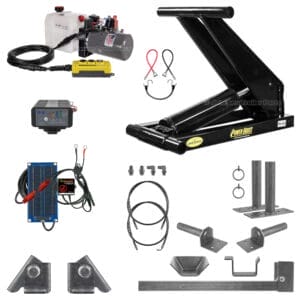

For larger 10’–14’ dump bed applications or higher-capacity trailer builds, consider the Dexter PH416 6 Ton Hydraulic Scissor Power Hoist Kit. For an 8 ton option in the same 10’–14’ dump bed range, you can also view the Dexter PH516 8 Ton Hydraulic Scissor Power Hoist Kit.

---

Shipping Information

Free shipping is available to commercial addresses or local freight terminals in the lower 48 states. Residential delivery and liftgate services are available for an additional fee. Please contact our team for details.

---

Additional Resources & Installation Guides

• ⇓ Download PH310 Installation Manual – Step-by-step setup and maintenance instructions.

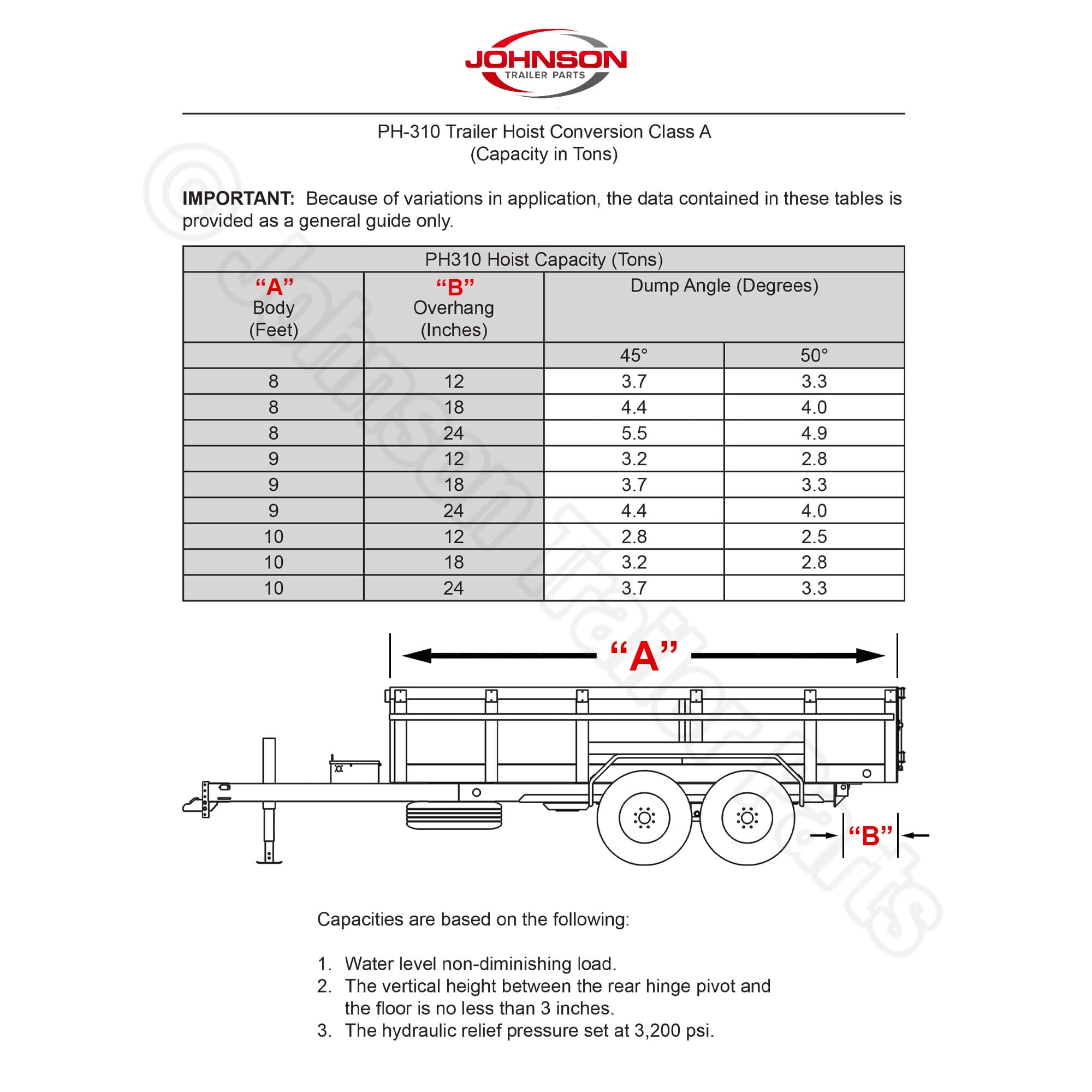

• ⇓ Download Power Hoist Capacity & Load Charts – Detailed lifting ratings by model and hoist style.

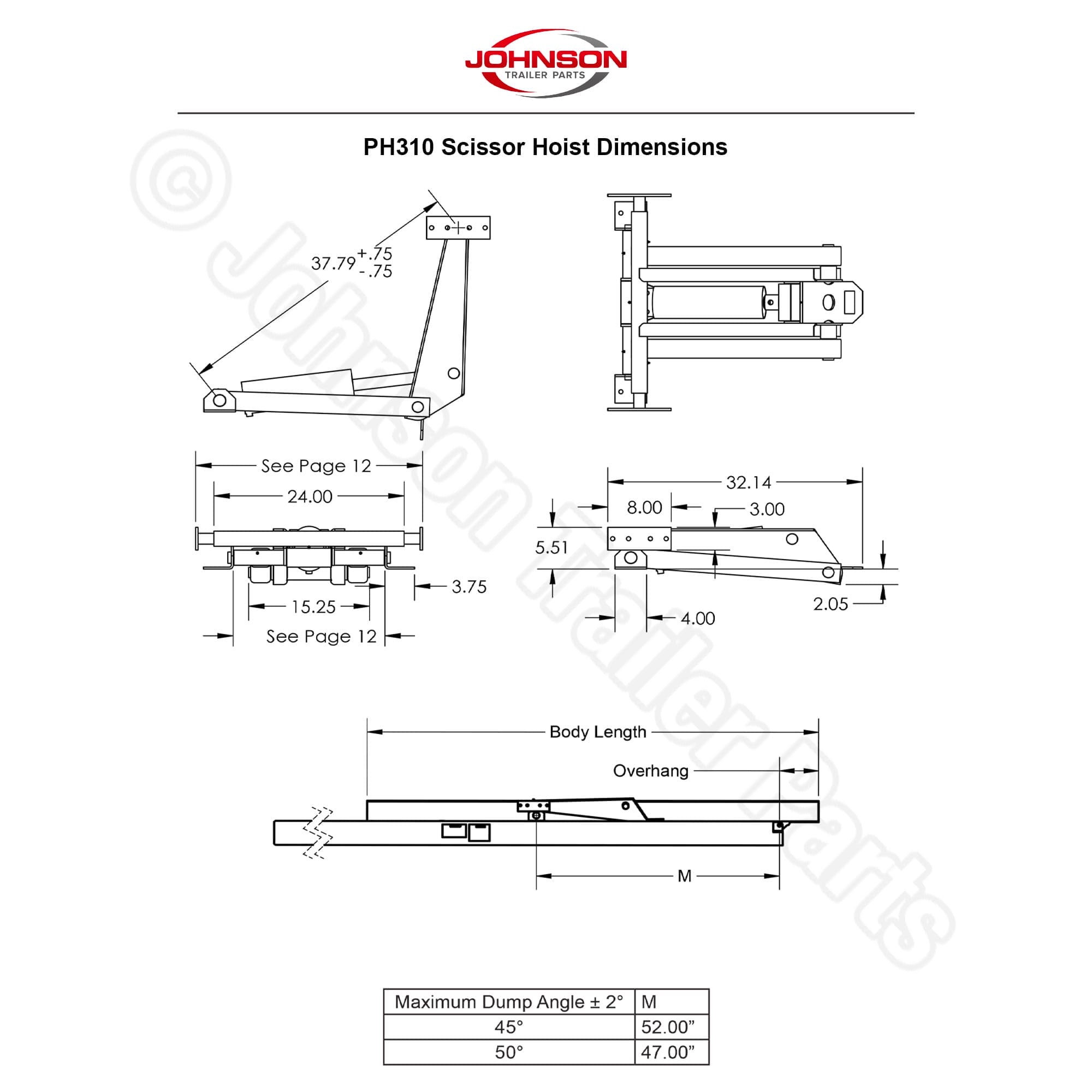

• ⇓ Download Power Hoist Dimensions – Precise measurements for trailer fitment.
• ⇓ Download KTI Single / Double Acting Pump Installation Manual – Hydraulic pump installation guide.
• Read Scissor Hoist Selection Guide – Learn how bed length, overhang, dump angle, and lifting capacity affect hoist selection.
• View Documents Page – Technical specs and support files.
• Watch Johnson Trailer Parts on YouTube – Installation and how-to videos.

---

Frequently Asked Questions

What size dump bed is the PH310 designed for?
The PH310 is designed for 8’ to 10’ dump beds when properly matched to trailer design, bed length, load placement, mounting position, overhang, and dump angle.

Does the PH310 include a dump trailer hydraulic pump?
Yes, applicable PH310 kit levels include a KTI 12V DC electric hydraulic pump / hydraulic power unit for dump trailer applications. The pump supports power-up, power-down, and gravity-down operation through the included wired remote on applicable kit levels. The Hoist Only version does not include the pump, remote, hoses, fittings, electrical components, or charging accessories found in the more complete kits.

What is a KTI single / double acting hydraulic pump?
A KTI single / double acting hydraulic pump is a 12V DC electric hydraulic power unit that can support both single-acting and double-acting hydraulic operation depending on the trailer setup. On applicable PH310 kit levels, it supports power-up, power-down, and gravity-down operation. Power-up raises the dump bed with hydraulic pressure, power-down lowers the bed with hydraulic pressure when needed, and gravity-down allows the bed to lower using the weight of the bed, which can help conserve battery power during normal dump trailer use.

What is the difference between the Standard, Deluxe, and Premium kits?
The Standard Kit includes the main hoist, hydraulic pump, hoses, fittings, control components, and safety components. Deluxe adds a 5 amp charger and SP-3 SolarPulse panel. Premium, Premium HD, and Premium HDX add progressively stronger trailer battery charging system packages.

Should I choose the PH310, PH416, or PH516?
The PH310 is rated for 3 tons (6,000 lbs) and is designed for 8’–10’ dump beds when properly applied. For larger 10’–14’ dump bed applications, consider the PH416 6 Ton Hydraulic Scissor Power Hoist Kit or the PH516 8 Ton Hydraulic Scissor Power Hoist Kit.

Can the PH310 be used as a hydraulic scissor lift system for dump trailers?
Yes. The PH310 is a compact hydraulic scissor lift hoist designed to raise compatible dump trailer beds, truck dump beds, and custom dump body builds when properly matched to the application.

How do I choose the right hydraulic scissor hoist?
Hoist selection depends on bed length, overhang, dump angle, load type, mounting position, load placement, and trailer design. For more help comparing models, review our Scissor Hoist Selection Guide or contact Johnson Trailer Parts for fitment support.

Is free shipping included?
Yes, free shipping is available to commercial addresses or local freight terminals in the lower 48 states. Residential and liftgate delivery are available for an additional fee.

---

Watch a Dexter Hydraulic Scissor Power Hoist in Action

Watch the video below to see a Dexter hydraulic scissor Power Hoist in operation and get a better look at lifting performance, fitment, and real-world dump trailer use. Video shown features the PH520 model, which is part of the same Dexter | Premium Supply Power Hoist lineup.

Need expert help? Call Johnson Trailer Parts at (602) 292-9690 for fitment support.
