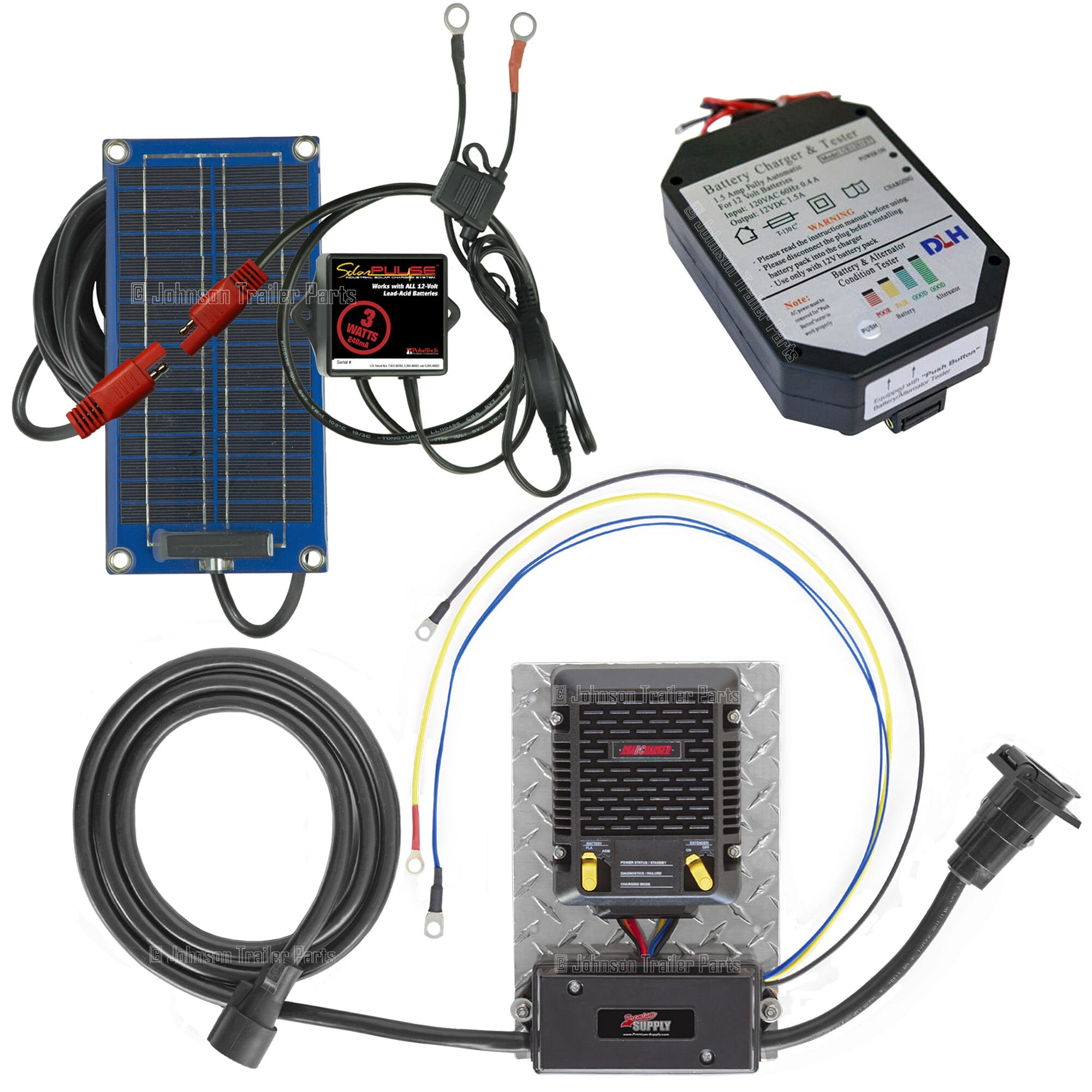

Battery Optimizer Kit – Trailer Battery Charging System
Products Included:

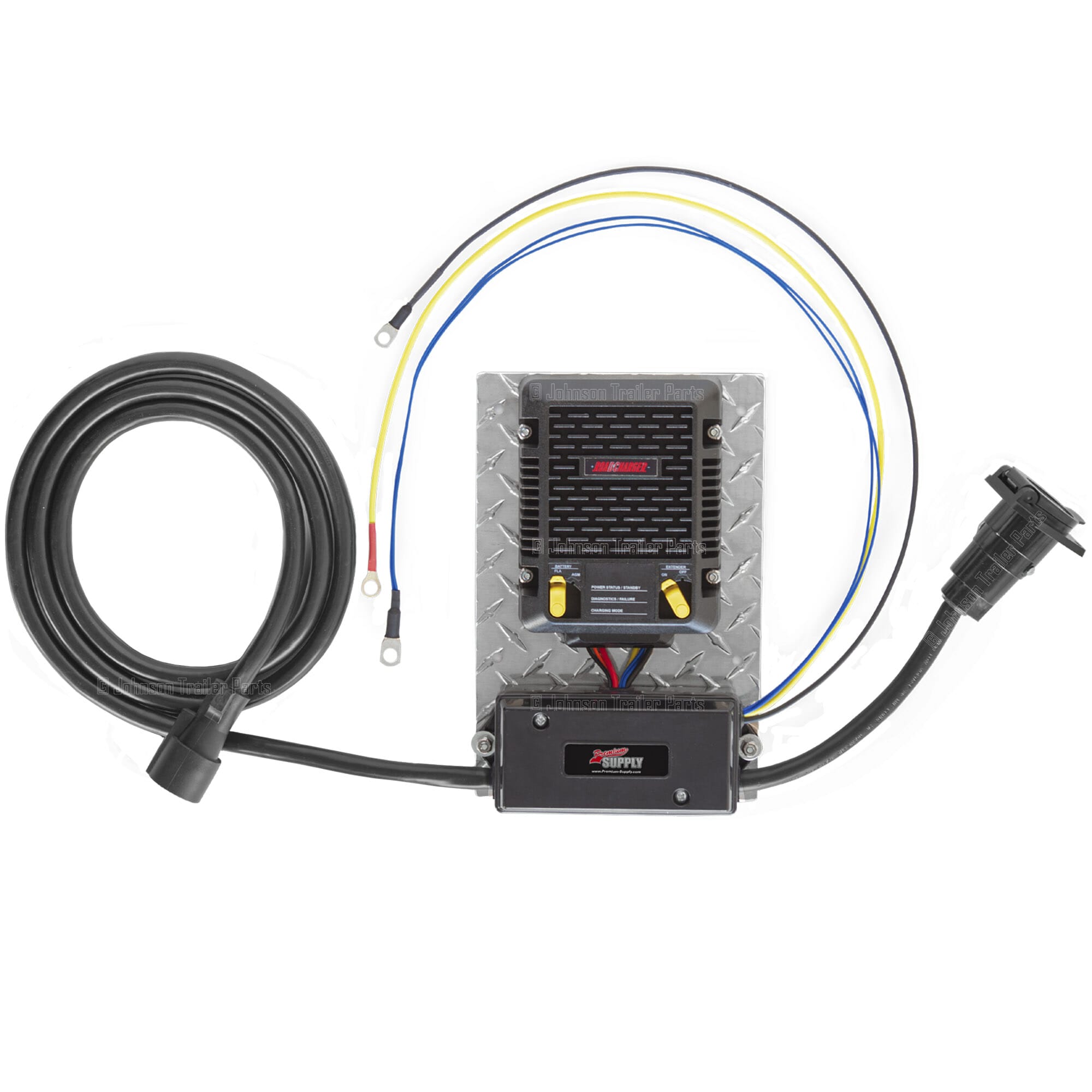

- 20 Amp RoadCharger With 7-Way
- The 20 Amp RoadCharger Battery Charger is designed to boost the voltage of the battery on the trailer when the trailer battery is mounted several feet away from the tow vehicles alternator. This charges the trailer mounted battery much faster while the trailer is being pulled down the road. It even works while the tow vehicle is turned off.
- 1.5 Amp Battery Charger
- The 1.5 amp AC charger is a panel mountable unit with a built-in battery tester.
- SP-3-Watt SolarPulse Panel
- The SolarPulse 3-Watt charger combines ReNew-IT Pulse Technology with an exceptional charging system. ReNew-It Technology safely prevents the main cause of battery problems and failure: sulfation buildup on lead-acid battery plates. Used extensively by the consumers and the U.S. Military worldwide for over ten years, this technology has been scientifically proven by two major universities to make batteries work harder and last longer than you ever thought possible.
- Battery Optimizer Brochure & Wire Circuit
- RoadCharger Wire Circuit
- RoadCharger Installation Manual

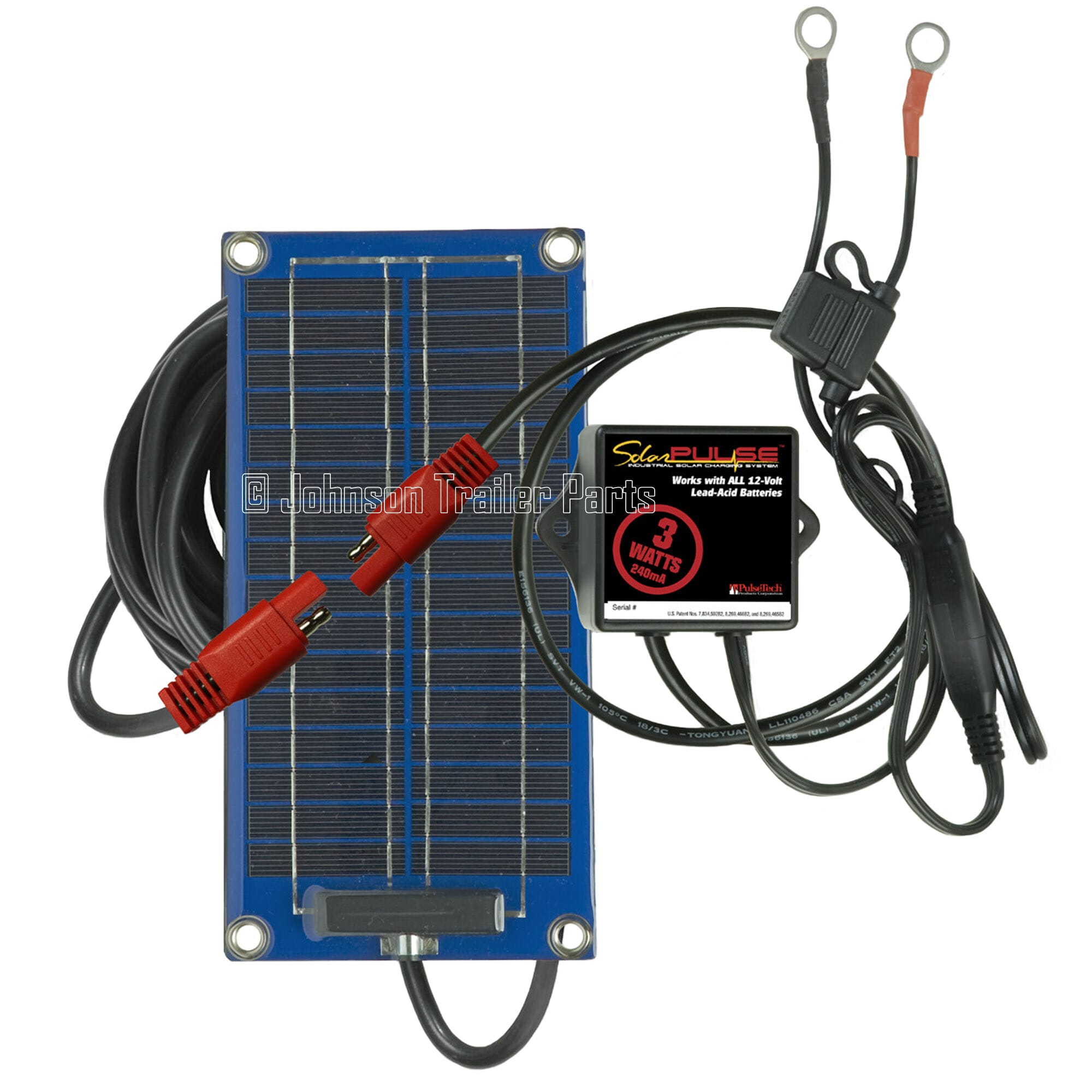

- SP-3 3-Watt 12V Solar Battery Charger Maintainer (735X453)
Battery Optimizer Kit – Trailer Battery Charging System
20 Amp RoadCharger
- Input Voltage Range: +9.5 to +16 Vdc
- Max Output Current: 20 A
- Storage Temperature Range: -55 C to +125 C
- Ambient Air Operating Temperature: -40 C to +85 C
- Dimensions: 143 x 192 x 60 mm
- Compliance: FMVSS 121; SAE J227; TMC RP141
- Ingress (IP) Rating: IP67 and IP69K
1.5 Amp Battery Charger
- Input: AC 120V, 60Hz, 0.4 Amp
- Output: DC 12V, 1.5 Amp
- Battery Cables: 24 In., 18 AWG
- Lead Wire: 3-Prong Plug
- Features: LED, Self-Resetting Circuit Breaker
SP-3-Watt SolarPulse Panel
- Max Charging DC Voltage: 16.5 VDC, 240 mA
- Reverse Polarity Protected: Yes
- Circuit Box Dimensions: 3.4″ X 2.25″ X 1.5″
- Solar Panel Dimensions: 4.7″ X 9.45″ X 0.25″
- Box to Lugs Wire Length: 3 feet
- Box to Panel Wire Length: 17 feet
- Termination: .375″ Lugs
