Gooseneck Trailer Parts Kit – 14k | Hydraulic Jacks


*Free Shipping to a Commercial/ Business Address or Freight Terminal Near You in the Lower 48 States. Residential and Lift gate Deliveries Will Require an Additional Fee. We will find the Freight Terminal for you. Contact us for more information, Thank you.

$5,150.00

Clear

Gooseneck Trailer Parts Kit – 14k | Hydraulic Jacks. Rockwell American Trailer Axles come with a 2 yr Manufacturers Warranty and a Superior Powder Coated Finish and Patented “Posi-Lube” system that Provide Continuous Bearing Protection.

Premium Supply is a Industry Leader for Hydraulic Trailer Jacks. Backed with a 36 month Standard Warranty

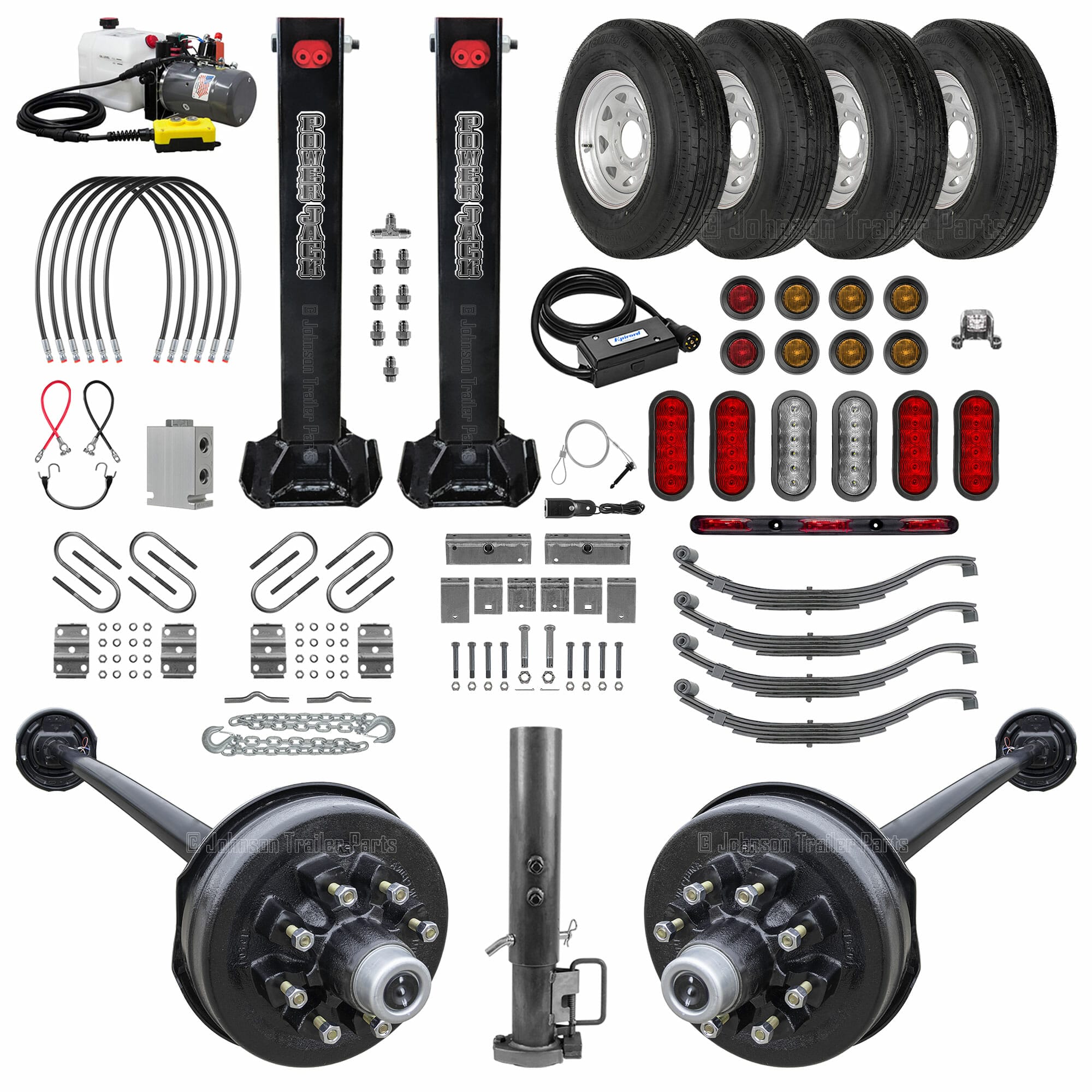

Included Components in the Gooseneck Trailer Parts Kit – 14k | Hydraulic Jacks

    • (2) 7,000 lb Rockwell American Trailer Axles with Electric Brakes, Bearings, Lugs & Nuts. (Cambered)
      • 865 Bolt Pattern
      • Bottom Mount Springs
    • (4) Slipper Springs –26-5/8″ Eye to End, 2″ Wide – 3.6k Capacity Ea , 5 Leaf, 3.5″ Arch, .5625″ Eye.
    • (2) U-Bolt Kit, Round 3″ x 7″ x .5625″-18 with U-Bolts, Plates, Washers & Nuts.
    • (1) Tandem Hanger Kit for Slipper Springs.
    • (1) Gooseneck Coupler for 2 5/16″ Ball
    • (2) Safety Chains – .375″  x 35″,  with Clevis Slip Latch Hook – 16.2k
    • (2) Weld-on Safety Chain Anchors – 1/2″
    • (1) TecNiq LED Light Kit Includes: (All Lights are Tecniq LED Lights)
      • (4) 6″ Oval LED Tail Lights – Grommet Mount
      • (2) 6″ Oval LED Reverse Lights – Grommet Mount
      • (6) 2″ Amber Sidemarkers – Grommet Mount
      • (2) 2″ Red Sidemarkers – Grommet Mount
      • (1) LED ID Bar  (for over 80″ trailers)
      • (1) LED License Plate Light
    • (1) Wiring Kit Includes:
      • (1) Breakway Switch
      • (1) 7 way Trailer Cord with Junction Box – 7 ft
    • (4) 16″ Trailer Wheels and Tires – Mounted
      • ST235/80R16
      • 10 Ply Radials
      • 865 Bolt Pattern
      • 3.52k Capacity Each
    • (1) Dual Hydraulic Trailer Jack Standard Kit
      • (1) Hydraulic Power Unit (HPU) Double Acting Pump (Power-Up / Power-Down)
        • 3,200 psi relief setting on the extend (raising) port
        • 1,500 psi relief setting on the retract (lowering) port
      • (2) 12,000 lb Trailer Jacks with 2″x 20″ Hydraulic Cylinder
      • (1) 15″ Rubber Strap
      • (4) 48″ Hydraulic Hose w/2 Straight #6 JIC Fittings
      • (2) 12″ Hydraulic Hose – Str X Str
      • (1) Tee Fitting, #6 JIC
      • (2) 90 Degree Fittings – #6 SAE male X #6 JIC male
      • (7) Straight Adapter Fittings – #6 SAE male X #6 JIC male
      • (1) Battery Cable, 4 gauge RED, 20″
      • (1) Battery Cable, 4 gauge BLACK 20″
      • (2) Jack Covers
      • (1) Flow Divider Combo 2.5 GPM
      • Maximum Hydraulic Flow Rate is 2 GPM
      • Maximum Distance between ground and bottom of trailer frame is 8″






Our Gooseneck Trailer Parts Kit – 14k | Hydraulic Jacks can be Modified to Better Suit Your Needs. Please contact us if you have any questions we can assist you with. (602) 292-9690 (602) 292-9690

Most Common Axles Sizes for this kit: Other Sizes Available, Contact us.

  • 89″ Hubface – 74″ Spring Center – This fits a 76″ Frame Width (6 ft 4 in)
  • 95″ Hubface – 80″ Spring Center – This fits a 82″ Frame Width (6 ft 10 in)

Need help with wiring a trailer? Check out our Trailer Wiring Diagrams.




Important Information:

Free delivery to shipping terminal or commercial/ business location near you. Trailer Parts Kits will be delivered on a shipping pallet. Residential (UPS,FedEx, Lift Gate) deliveries Will Require an additional fee. Please contact us for more details.





This Kit can be Modified to Better Suit Your Needs. Please contact us if you have any questions we can assist you with. (602) 292-9690 (602) 292-9690

See our Documents page for more information.

Need help with wiring a trailer? Check out our Trailer Wiring Diagrams.
