T1000 14,500 lb Severe Duty 12v Electric Winch – Synthetic Rope

The T1000 14,500 lb 12v Electric Winch with synthetic rope is a military-grade, IP68-sealed recovery winch with hardened planetary gears and a heavy-duty wireless remote for extreme reliability.

SKU: T114A12-CAD

$1,699.99

$1,879.98 for 2 item(s)

T1000 14,500 lb Severe Duty 12v Electric Winch – Synthetic Rope | Military-Grade Power for Extreme Recovery

SKU: T114A12-CAD

When power, protection, and performance are non-negotiable, the T1000 14,500 lb 12v Electric Winch with Synthetic Rope delivers. Developed as a military-grade prototype, this severe duty winch is engineered to thrive in the harshest environments—from war zones to industrial recovery fields. Featuring IP68 waterproofing, hardened planetary gears, and an advanced external brake system, this winch is ready for anything. Now available for general use with premium Armortek Extreme synthetic rope.

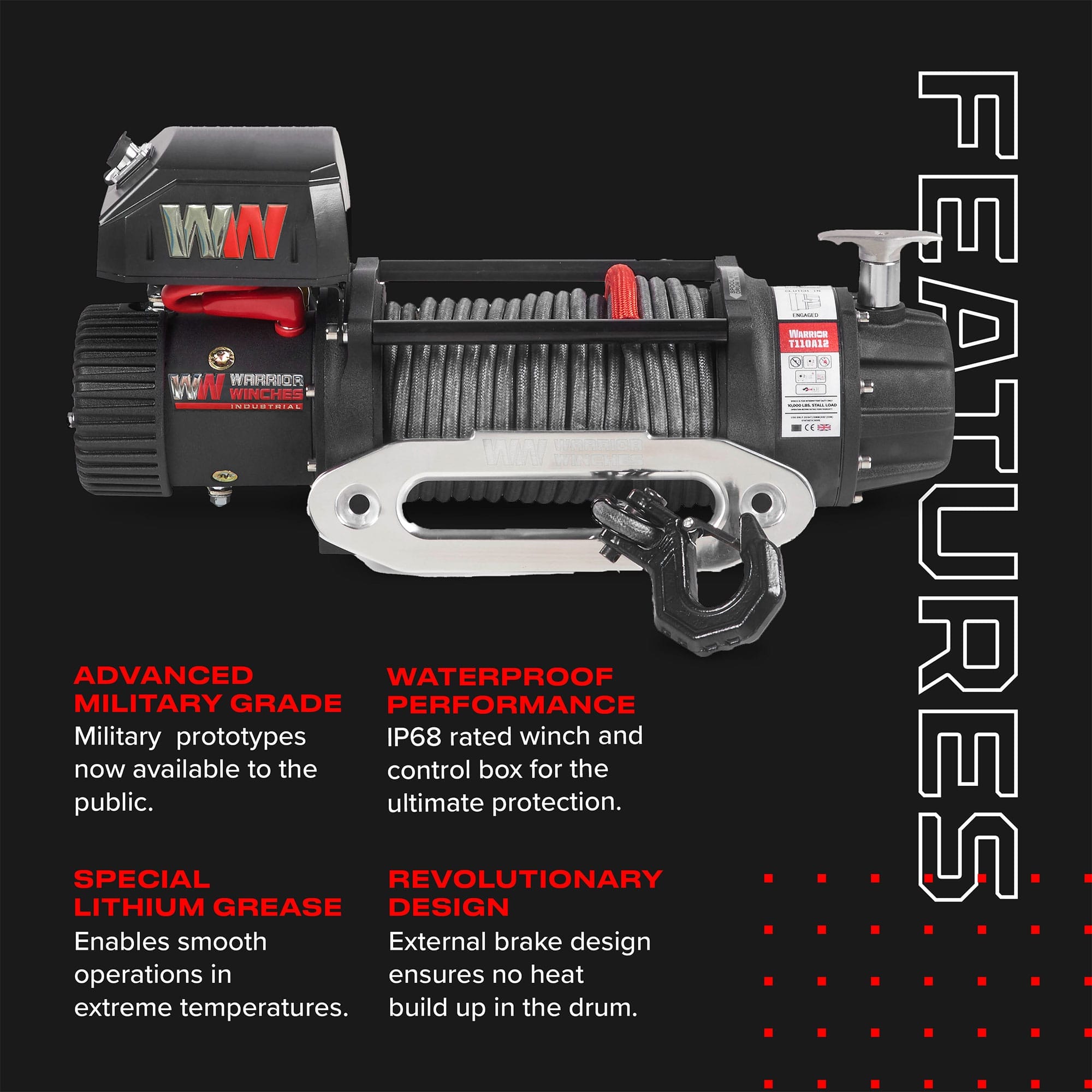

Key Features & Benefits

✅ Advanced External Brake System
Mounted outside the drum to prevent heat build-up under load, enabling safe, controlled winching during demanding tasks.

✅ IP68 Military-Grade Sealing
Complete protection against water, mud, and fine dust—ensures performance in desert, snow, or storm conditions.

✅ Armortek Extreme Synthetic Rope
Ultra-durable rope with a 24-strand abrasion-resistant sheath—lighter, safer, and easier to handle than steel cable.

✅ Heavy-Duty Wireless Remote Control
Includes a long-range remote for maximum safety and flexibility during recovery operations.

✅ Lithium Grease Lubrication
High-performance grease improves gear protection in extreme heat or sub-zero cold.

✅ Hardened 3-Stage Planetary Gears
Delivers maximum torque and mechanical efficiency, with quiet and reliable performance under pressure.

Specifications:

  • Rated Line Pull: 14,500 lbs (6,577 kg)

  • Voltage: 12V DC

  • Rope Type: Armortek Extreme Synthetic Rope

  • Motor Type: High-Torque Sealed Motor

  • Brake System: Advanced External Load-Holding

  • Gear Train: Hardened 3-Stage Planetary

  • Lubrication: Lithium Grease (Extreme Temp)

  • Sealing Rating: IP68 (Military-Grade Dust & Water Protection)

  • Remote Control: Heavy-Duty Wireless Remote Included

  • Control Box: Sealed for Waterproof Protection

  • Applications: Off-road recovery, industrial towing, utility services, military support vehicles

  • Mounting: Standard heavy-duty bolt pattern

  • Warranty: Manufacturer Limited Warranty

Ideal For:

  • Military-grade vehicle recovery

  • Heavy off-road rigs

  • Utility fleet and construction trucks

  • Industrial winching operations

  • Rescue and emergency service teams

A Severe Duty Winch Built for the Elite

The T1000 14,500 lb synthetic winch combines field-tested strength, military-grade reliability, and cutting-edge engineering in a battle-ready package. Perfect for serious recovery applications where failure is not an option.

Need Help with Fitment or Load Specs?

Speak with one of our winch specialists at (602) 292-9690 for personalized guidance and support.

Additional Resources:

SKU: T114A12-CAD Category: Tags: , , , , , , , , , , , , , Brand:
RATED LINE PULL 14500 LBS
MOTOR TYPE 12V:INPUT: 5.4KW / 7.2HP; OUTPUT: 2.7KW / 3.6HP
RATED VOLT 12V
CLUTCH MANUAL
GEARING 228:1
GEARING SYSTEM PLANETARY
BRAKING ACTION EXTERNAL BRAKE
DRUM SIZE (DIAMETER X LENGTH) 2.48 X 8.54 IN
CONTROLS WIRED REMOTE
WIRELESS REMOTE
CABLE MATERIAL SYNTHETIC
CABLE SIZE (DIAMETER X LENGTH) 0.43 IN X 82 FT
FAIRLEAD HAWSE
MOUNTING PATTERN 10 X 4.5 IN (4-M10)

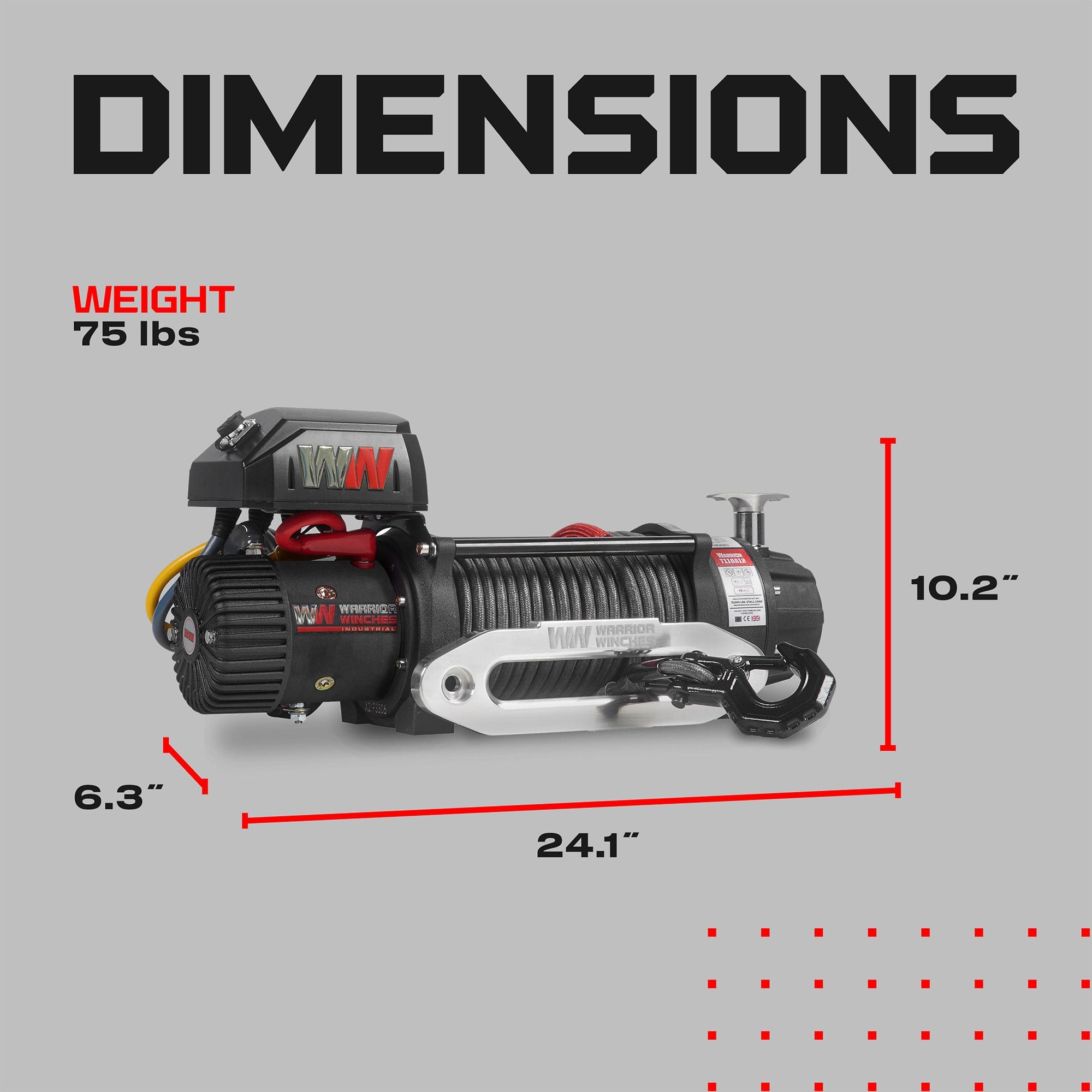

DIMENSIONS (LWH) 24.09 X 6.30 X 10.20 IN
WEIGHT 75 LBS
WARRANTY 5 YEAR
WATERPROOF RATING (IP) 68
CERTIFICATION CE



LAYER OF ROPE/CABLE LINE PULL: LBS(KGS) ROPE ON DRUM FT(M)
1 14500 (6577) 14.4 (4.4)
2 11177 (5070) 33.1 (10.1)
3 9093 (4124) 56.1 (17.1)
4 7664 (3476) 75.4 (23.0)
LINE PULL
LBS (KGS)		 LINE SPEED 12V
FT/MIN (M/MIN)		 LINE SPEED 24V
FT/MIN (M/MIN)		 AMP DRAW
12V		 AMP DRAW
24V
0 29.5 (9.0) 31.1 (9.5) 65 40
5000 (2268) 11.8 (3.6) 13.8 (4.2) 210 115
10000 (4536) 5.9 (1.8) 7.5 (2.3) 300 190
14500 (6577) 3.9 (1.2) 5.2 (1.6) 405 260
