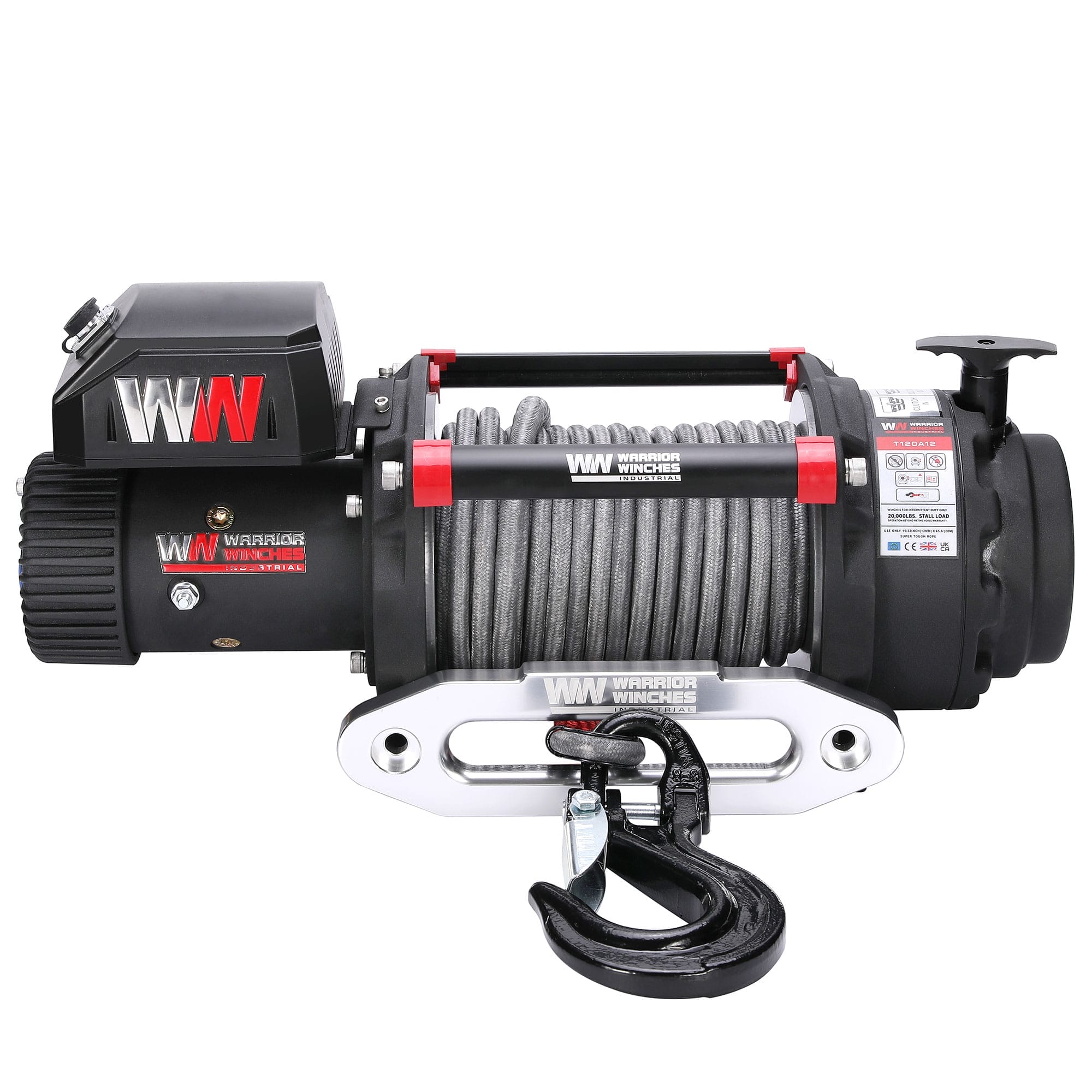

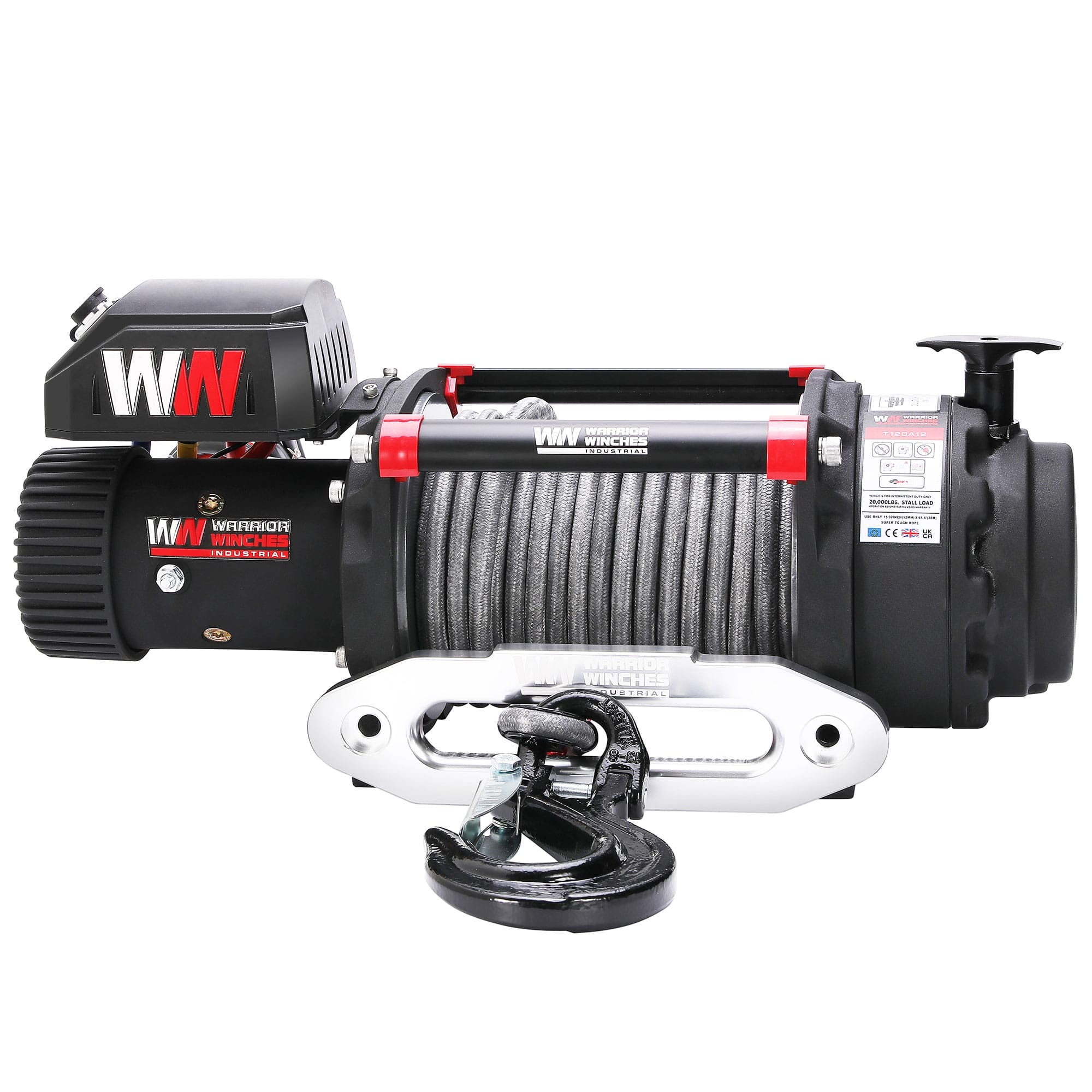

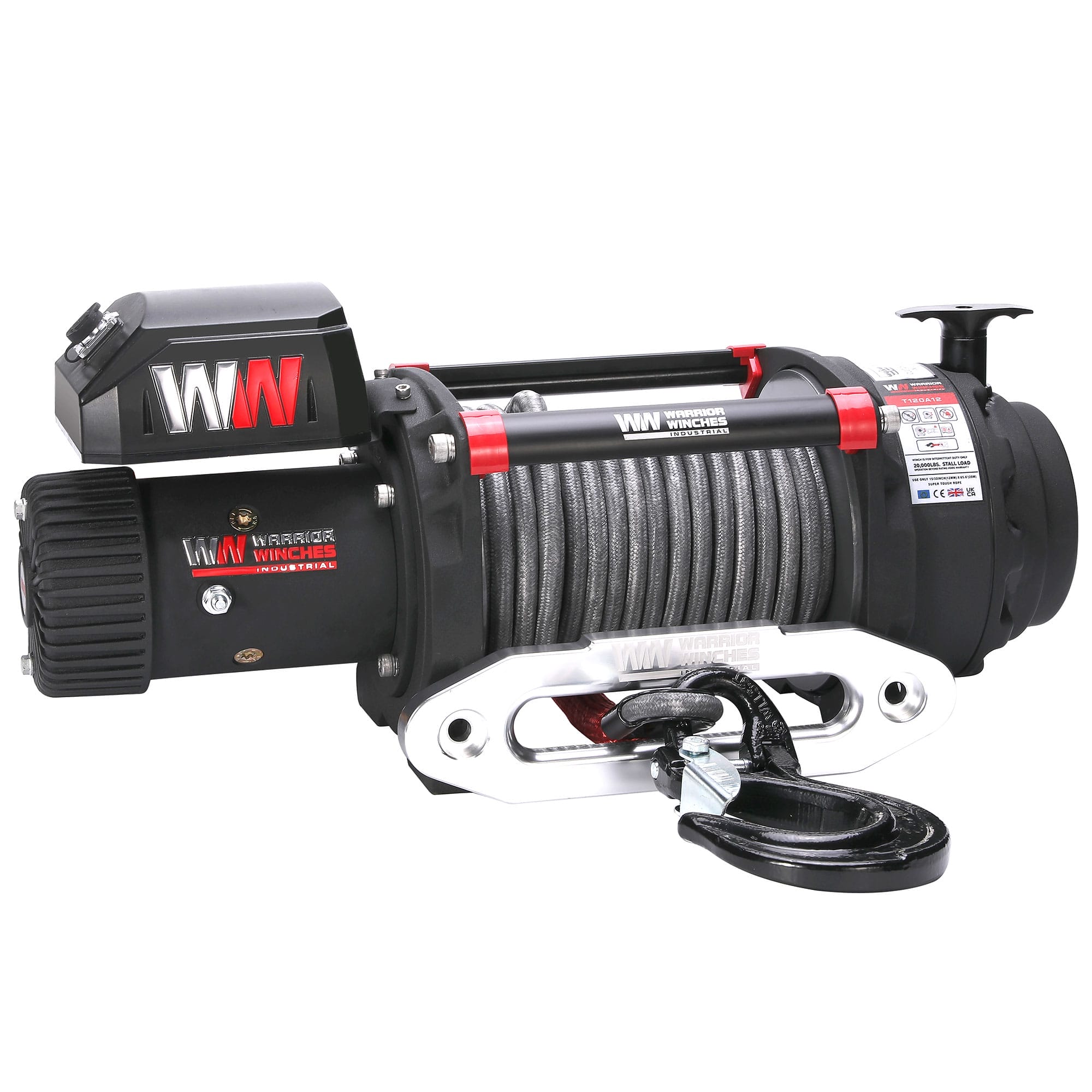

T1000 20,000 lb Severe Duty 12v Electric Winch – Synthetic Rope

T1000 20,000 lb Severe Duty 12v Electric Winch with Synthetic Rope – Built for Warzones, Ready for Your Rig

Model: T120A12-CAD

When only battle-ready winching performance will do, the T1000 20,000 lb 12v Electric Winch with Armortek synthetic rope delivers unmatched power, durability, and reliability. Designed for military, industrial, and severe-duty recovery, this unit features an all-brass series wound motor, IP68 military-grade sealing, and sealed planetary gearing—making it one of the most rugged winches available today.

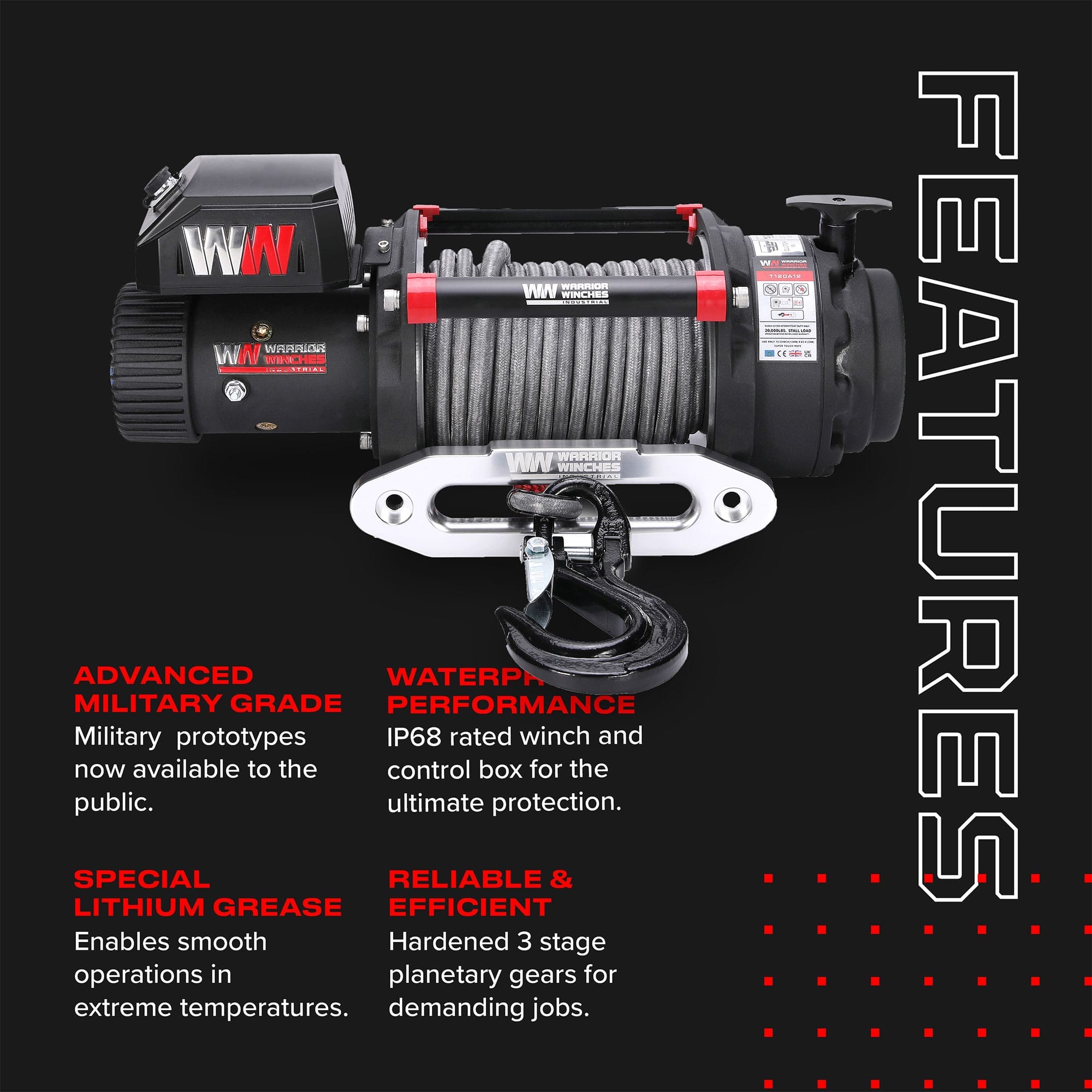

Key Features & Benefits

✅ 20,000 lb Pulling Capacity
Delivers serious power for recovery, towing, and heavy-equipment handling across extreme environments.

✅ All Brass Series Wound Motor
Resists corrosion for long-lasting, reliable operation even in marine, wet, or salt-rich conditions.

✅ Double-Sealed Motor & Waterproof Contactor
Internal components stay clean and dry for consistent performance in rain, mud, or snow.

✅ Sealed 3-Stage Planetary Gearbox
Produces high torque with smooth, quiet operation, sealed to resist dust and environmental wear.

✅ Special Lithium Grease Formula
Maintains lubrication and minimizes wear in both high-heat and sub-zero conditions.

✅ IP68 Military-Grade Protection
Winch and control box are fully waterproof and dustproof, certified to survive extreme field conditions.

✅ Armortek Extreme Synthetic Rope
Advanced rope construction with abrasion-resistant 24-strand guard—lightweight, safe, and extremely strong.

✅ Contactor Cover Included
Adds a second layer of protection to the control system, improving longevity and electrical stability.

Specifications:

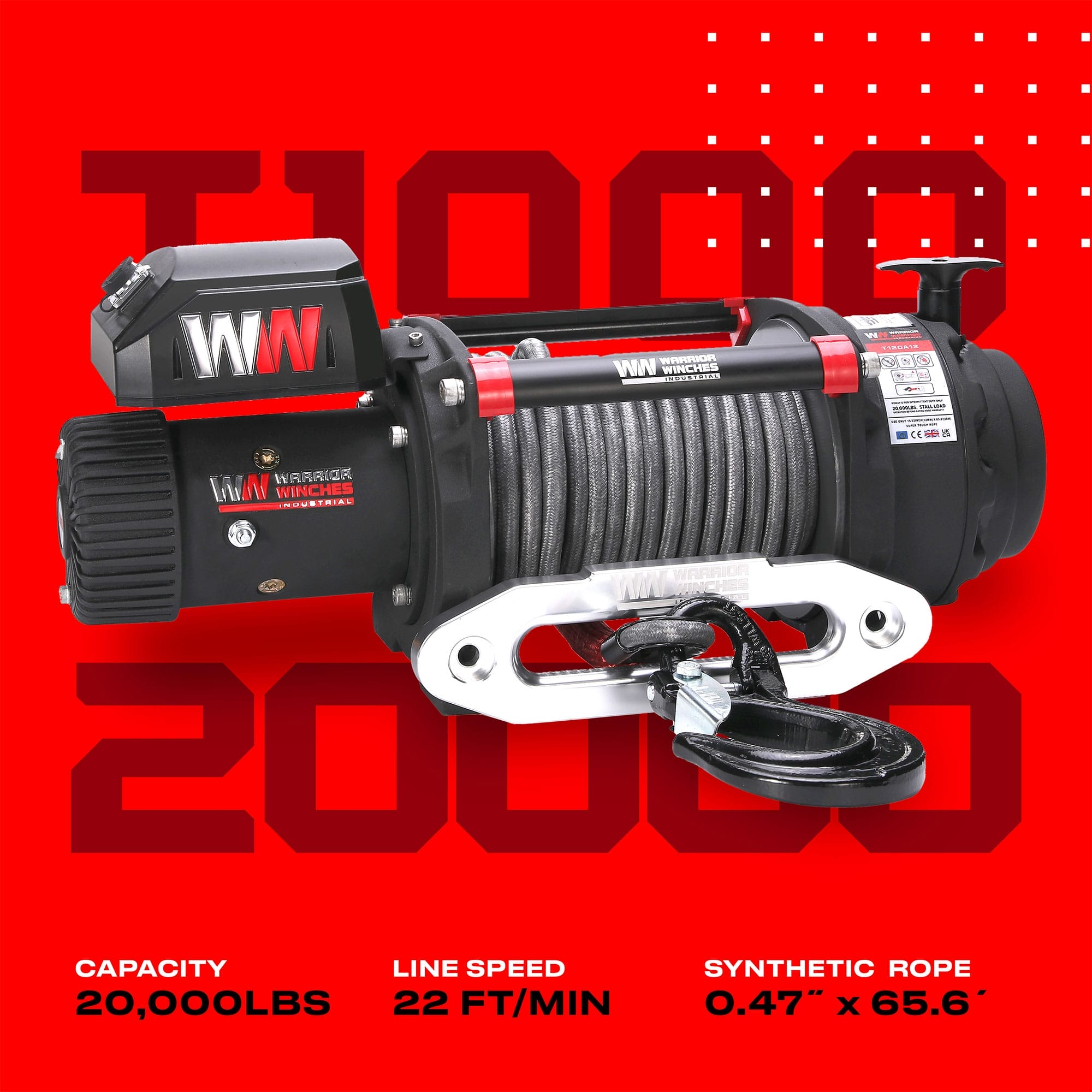

• Rated Line Pull: 20,000 lbs (9,072 kg)

• Voltage: 12V DC

• Motor Type: All Brass Series Wound Motor

• Rope Type: Armortek Extreme Synthetic Rope

• Gear Train: Sealed 3-Stage Planetary

• Lubrication: Extreme-Temperature Lithium Grease

• Brake Type: External Load-Holding

• Sealing Rating: IP68 Military-Grade (winch & control box)

• Control: Heavy-Duty Wireless Remote Included

• Contactor Protection: Sealed Waterproof Housing + External Cover

• Fairlead: Hawse Fairlead (included)

• Mounting Bolt Pattern: Industry-standard pattern for heavy-duty applications

• Applications: Military, industrial, off-road, commercial, and utility recovery

• Warranty: Manufacturer Limited Warranty

Ideal For:

• Industrial winch bumpers

• Tactical and military vehicles

• Utility fleet trucks

• Heavy off-road rigs

• Recovery and towing companies

• Harsh-weather installations

Trusted in Combat. Built for the Job Site.

The T1000 20,000 lb synthetic rope winch is a true severe-duty solution—engineered for when failure is not an option. With full IP68 sealing, a corrosion-resistant brass motor, and extreme-duty components, this winch sets a new benchmark for strength and survivability.

Questions? Speak to a Winch Expert

Contact our technical team at (602) 292-9690 for compatibility checks or install recommendations.

Additional Resources:

• Owners Manual

• Range Sheet

• Specification Sheet

• Parts List
• Durability Test
