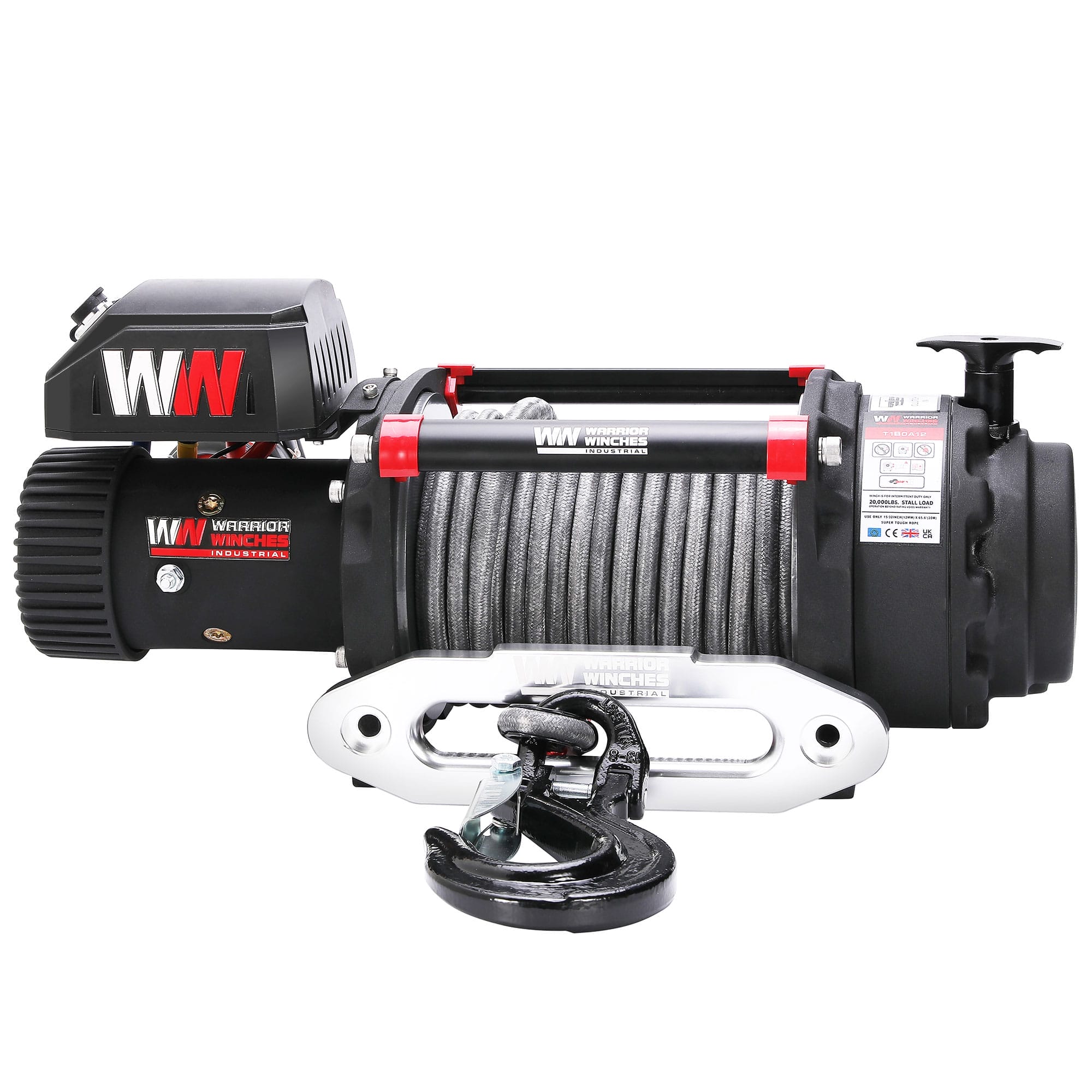

T1000 18,000 lb Severe Duty 12v Electric Winch – Synthetic Rope

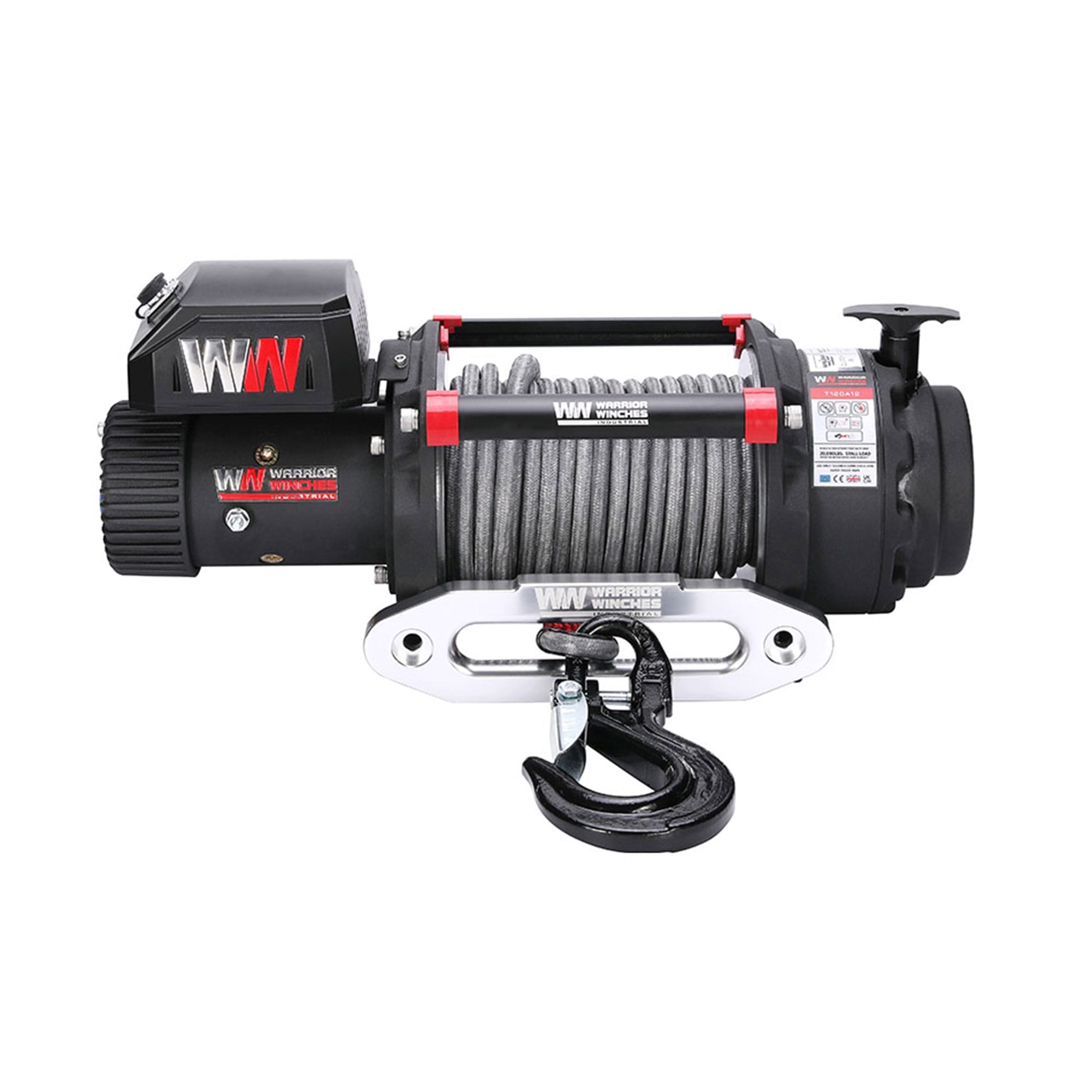

T1000 18,000 lb Severe Duty 12v Electric Winch – Synthetic Rope - Image 2
T1000 18,000 lb Severe Duty 12v Electric Winch – Synthetic Rope - Image 3
T1000 18,000 lb Severe Duty 12v Electric Winch – Synthetic Rope - Image 4
T1000 18,000 lb Severe Duty 12v Electric Winch – Synthetic Rope - Image 5

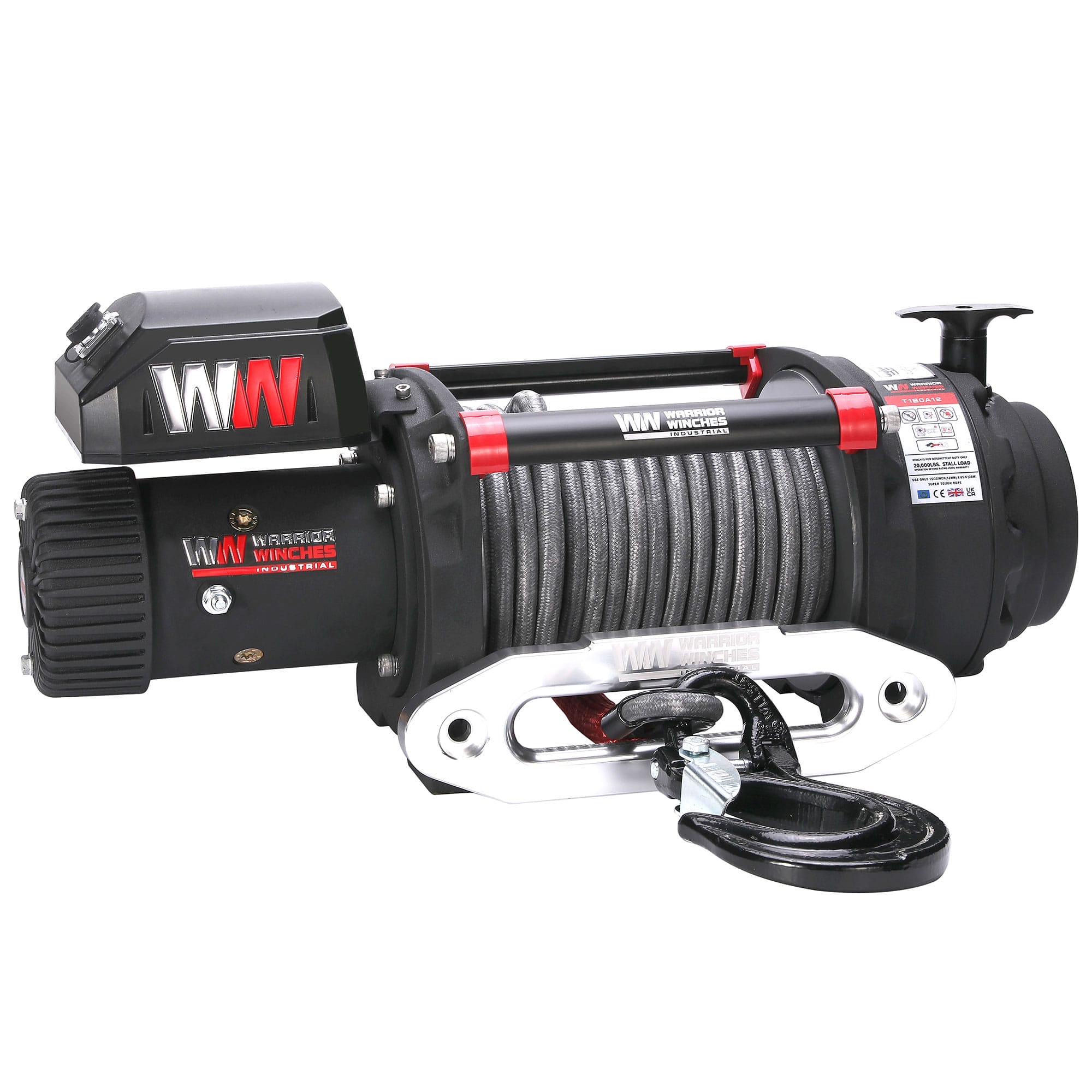

T1000 18,000 lb Severe Duty 12v Electric Winch – Synthetic Rope - Image 6

T1000 18,000 lb Severe Duty 12v Electric Winch – Synthetic Rope

The T1000 18,000 lb 12v winch with synthetic rope is a military-grade, severe-duty solution with IP68 protection, sealed planetary gears, and an all-brass motor for extreme performance.

SKU: T180A12-CAD

$1,969.99

$2,149.98 for 2 item(s)

T1000 18,000 lb Severe Duty 12v Electric Winch – Synthetic Rope | Military-Grade Power for Commercial & Off-Road Recovery

SKU: T180A12-CAD

Engineered for the most extreme environments on Earth, the T1000 18,000 lb 12v Electric Winch with Synthetic Ropeis built for those who demand uncompromising strength, durability, and performance. Originally developed as a military prototype, this severe duty winch delivers elite-level power with corrosion-resistant components, fully sealed protection, and a premium Armortek Extreme synthetic rope—designed to thrive in the harshest climates and toughest jobs.

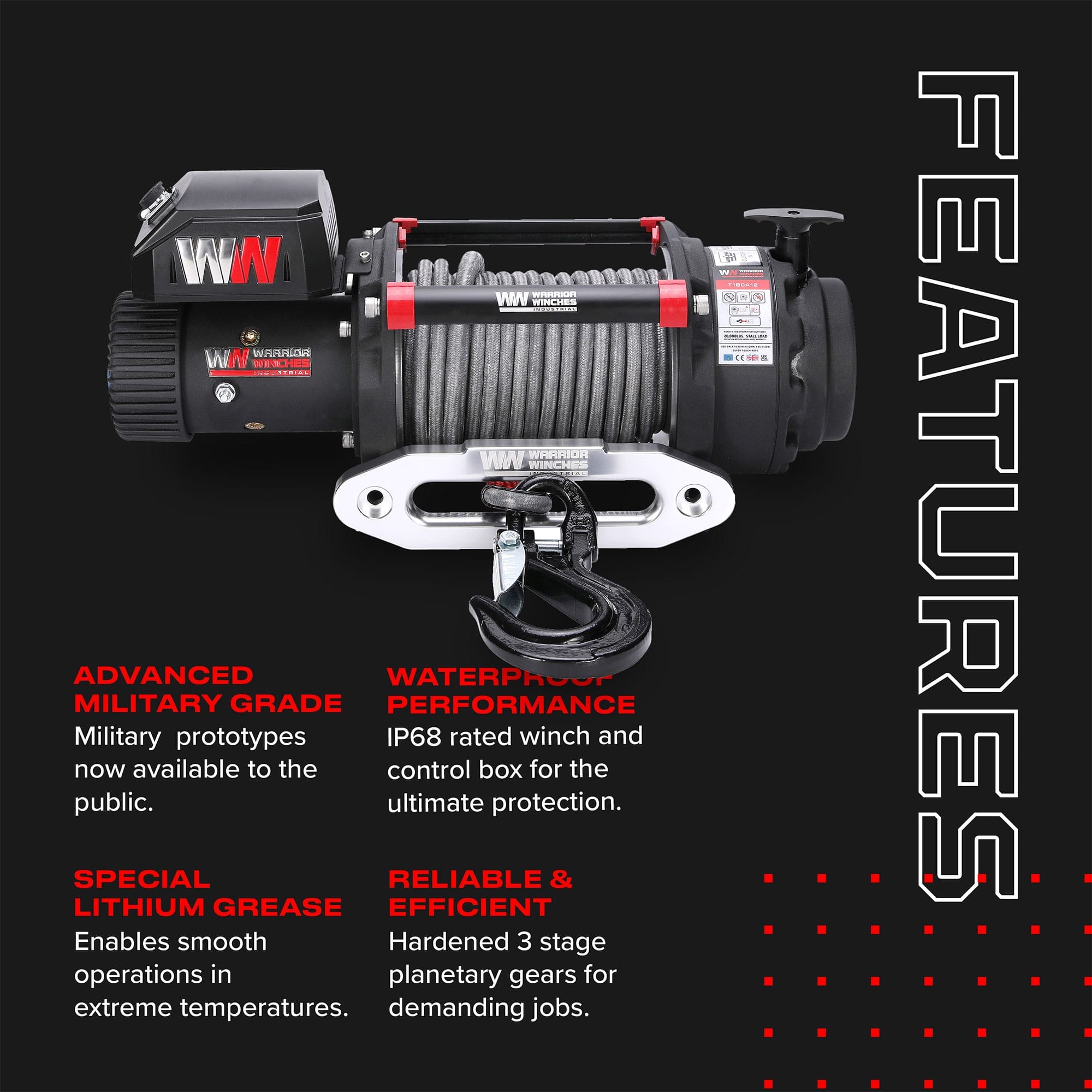

Key Features & Benefits

✅ All-Brass Series Wound Motor
Prevents corrosion and ensures long-term durability and peak torque, even in salty or wet environments.

✅ Double-Sealed Motor & Waterproof Contactor
Built to operate reliably through mud, snow, rain, or dust storms—with long-life performance in all conditions.

✅ Sealed 3-Stage Planetary Gear System
Delivers smooth, controlled winching with maximum torque transfer and hardened internal components.

✅ Lithium Grease Lubrication
Formulated for extreme high and low temperatures, reducing gear wear and increasing service intervals.

✅ IP68 Military-Grade Sealing
Both the winch and contactor box are fully dustproof and waterproof, making this unit ideal for military, industrial, or emergency use.

✅ Armortek Extreme Synthetic Rope
Premium-grade synthetic rope with abrasion-resistant 24-strand sheath provides strength and safety under tension.

✅ Built for Severe Duty Use
Suitable for recovery fleets, off-road trucks, oilfield support, utility trailers, and military operations.

Specifications:

  • Rated Line Pull: 18,000 lbs (8,165 kg)

  • Voltage: 12V DC

  • Motor: All-Brass Series Wound

  • Gear Type: 3-Stage Planetary (Sealed)

  • Rope Type: Armortek Extreme Synthetic Rope

  • Rope Protection: 24-strand abrasion-resistant outer layer

  • Contactor: Waterproof with Sealed Cover

  • Sealing Rating: IP68 (Waterproof & Dustproof)

  • Brake System: Load-Holding, Automatic

  • Lubrication: Extreme-Temp Lithium Grease

  • Mounting Pattern: Industry Standard for Heavy-Duty Applications

  • Remote Type: Heavy-Duty Wired Remote (Wireless optional)

  • Applications: Industrial recovery, military vehicles, off-road trucks, fleet operations, utility services

  • Warranty: Manufacturer Limited Warranty

Ideal For:

  • Military transport vehicles

  • Heavy-duty off-road rigs

  • Commercial recovery trucks

  • Oil & gas operations

  • Utility and emergency service fleets

Military-Grade Engineering, Now Available to You

With its battle-proven design, IP68 protection, and 18,000 lb pulling strength, the T1000 Severe Duty 12v Winchredefines what’s possible in extreme recovery operations. Go beyond limits—this is winching without compromise.

Need Fitment or Load Matching Help?

Speak with a winch expert now at (602) 292-9690 for personalized guidance on pairing this unit with your vehicle or fleet.

Additional Resources:

SKU: T180A12-CAD Category: Tags: , , , , , , , , , , , , , , Brand:

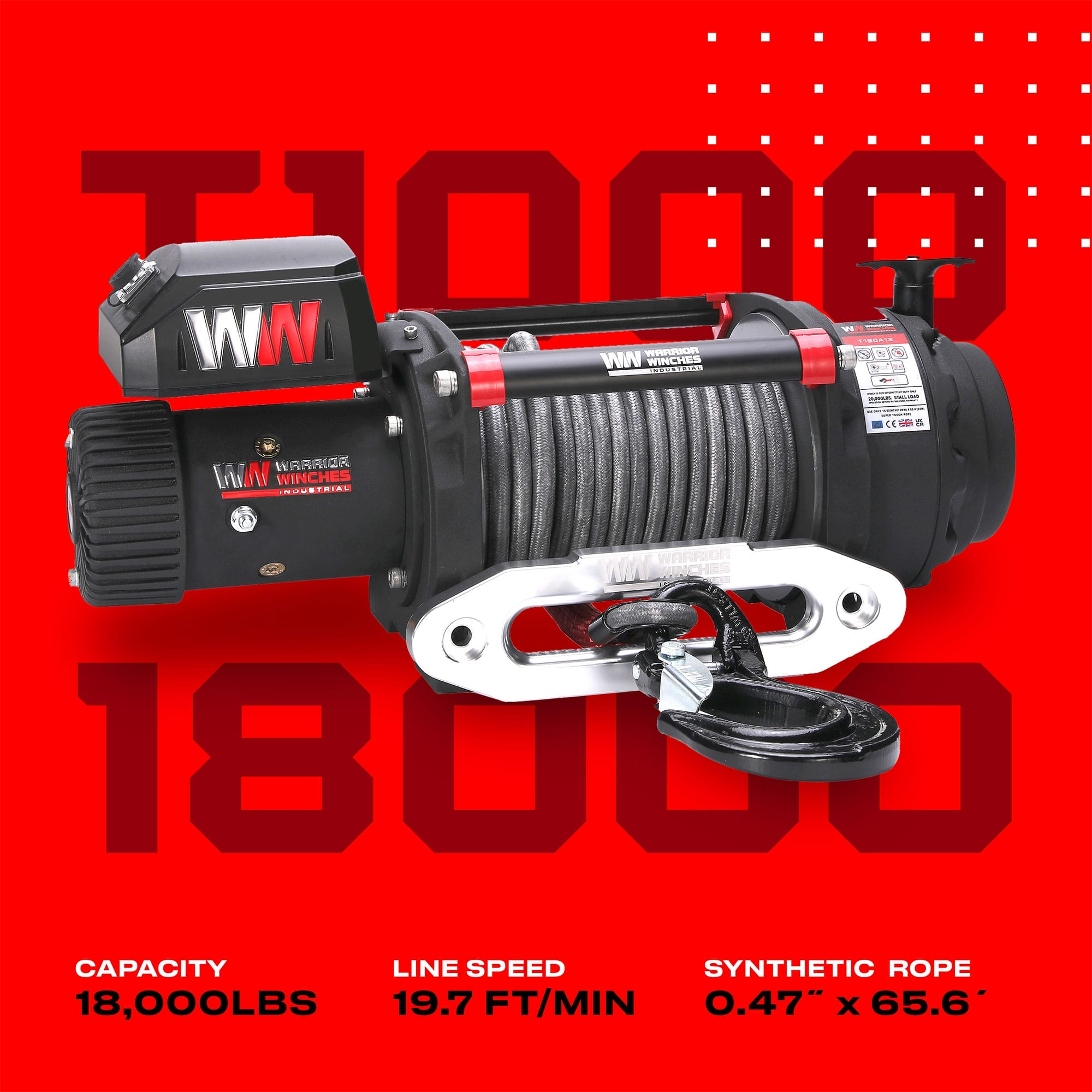

RATED LINE PULL 18000 LBS
MOTOR TYPE 12V:INPUT: 5.4KW / 7.2HP;OUTPUT: 2.9 KW /3.9HP
RATED VOLT 12V
CLUTCH MANUAL
GEARING 430:1
GEARING SYSTEM PLANETARY
BRAKING ACTION AUTOMATIC SCREW CONE
DRUM SIZE (DIAMETER X LENGTH) 3.50 X 8.62 IN
CONTROLS WIRED REMOTE
WIRELESS REMOTE
CABLE MATERIAL SYNTHETIC
CABLE SIZE (DIAMETER X LENGTH) 0.47 IN X 66 FT
FAIRLEAD HAWSE
MOUNTING PATTERN 10 × 4.5 IN / 10 × 6.5 IN (8-M12)

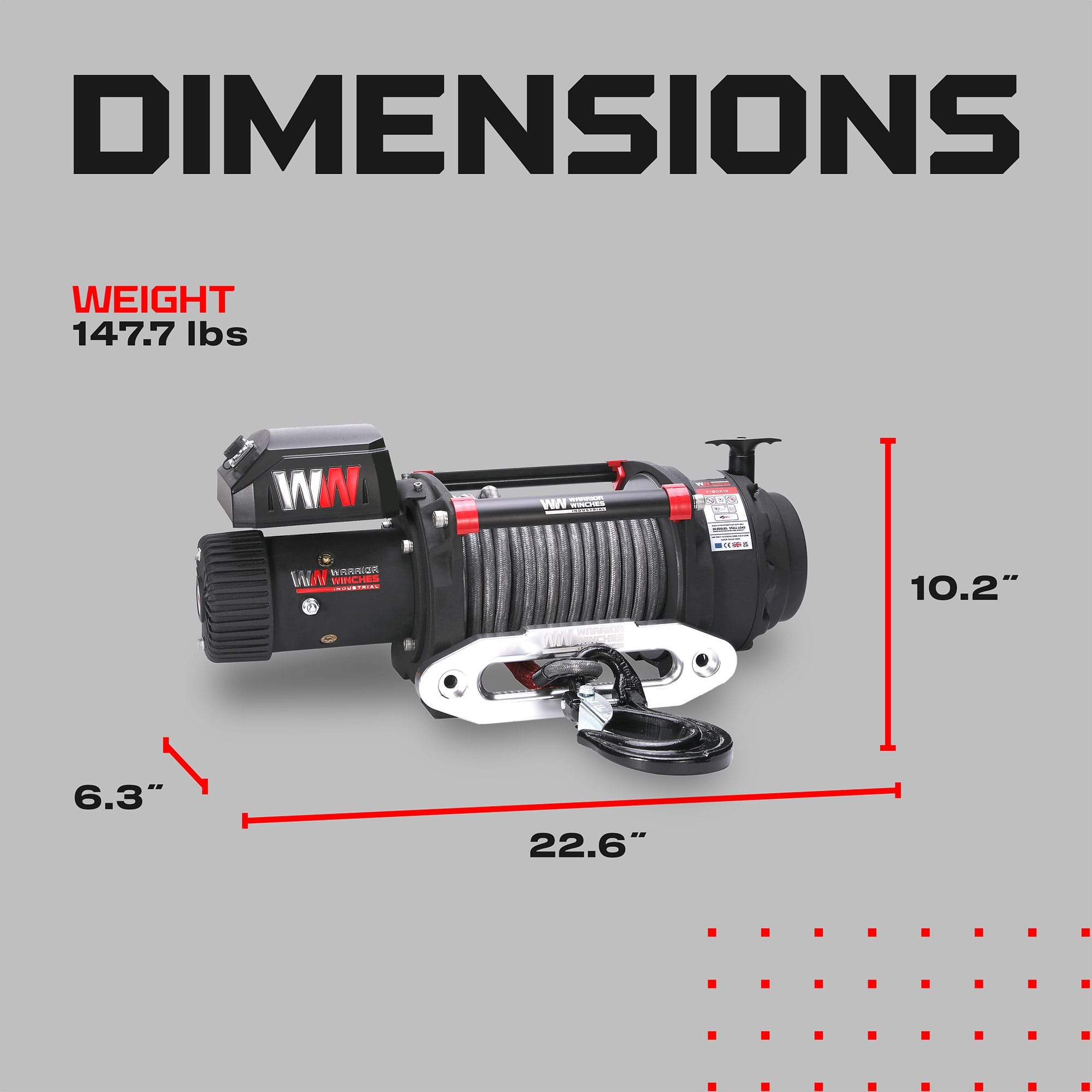

DIMENSIONS (LWH) 24.41 X 8.43 X 11.38 IN
WEIGHT 135 LBS
WARRANTY 5 YEAR
WATERPROOF RATING (IP) 67
CERTIFICATION CE



LAYER OF ROPE/CABLE LINE PULL: LBS(KGS) ROPE ON DRUM FT(M)
1 18000 (8165) 18.0 (6.0)
2 14544 (6597) 40.7 (13.0)
3 12200 (5534) 65.6 (20.0)



LINE PULL
LBS (KGS)		 LINE SPEED 12V
FT/MIN (M/MIN)		 AMP DRAW
12V
0 19.7 (6.0) 100
6000 (2722) 7.2 (2.2) 220
10000 (4536) 5.6 (1.7) 320
12500 (5670) 4.9 (1.5) 350
14000 (6350) 4.6 (1.4) 380
18000 (8165) 3.0 (0.9) 460
