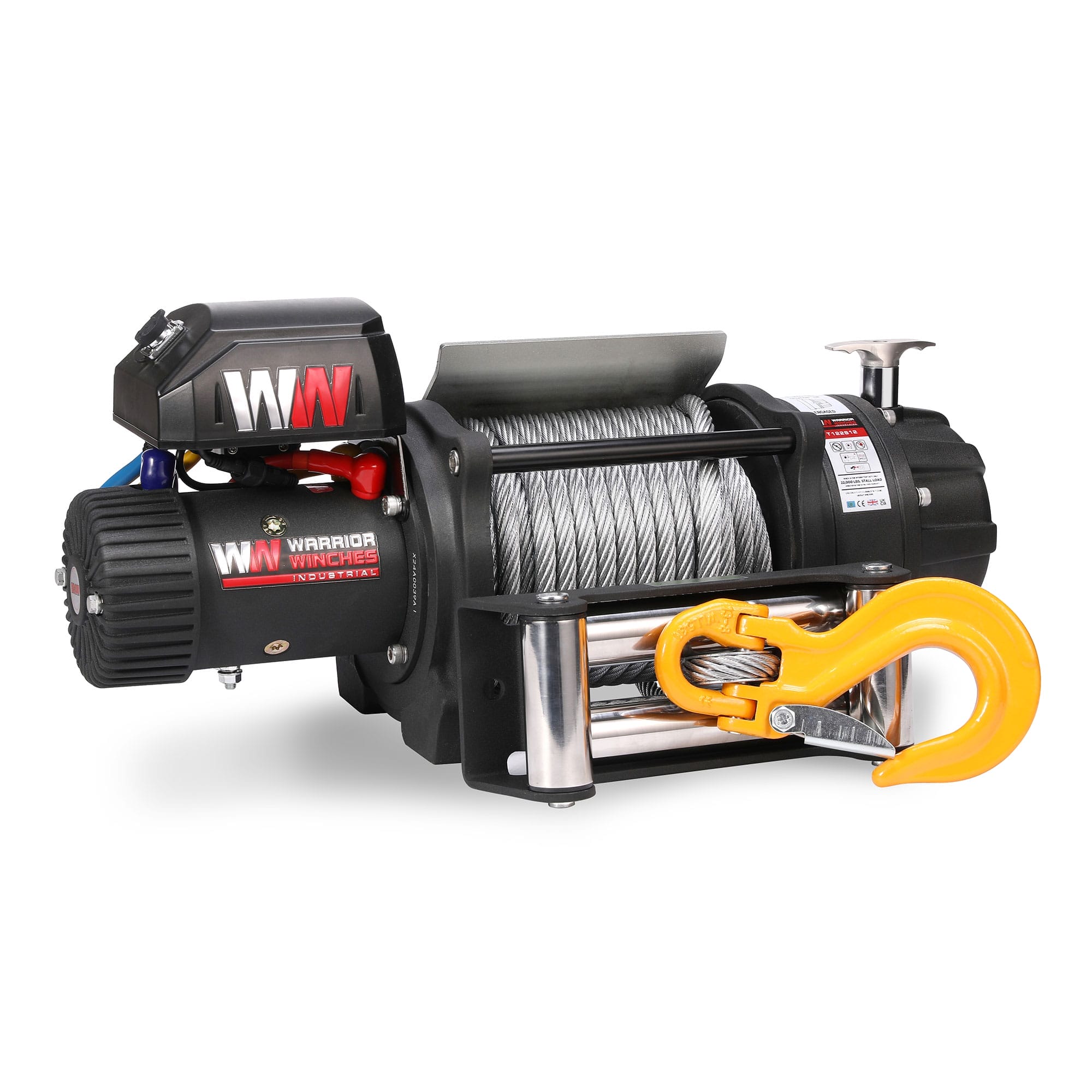

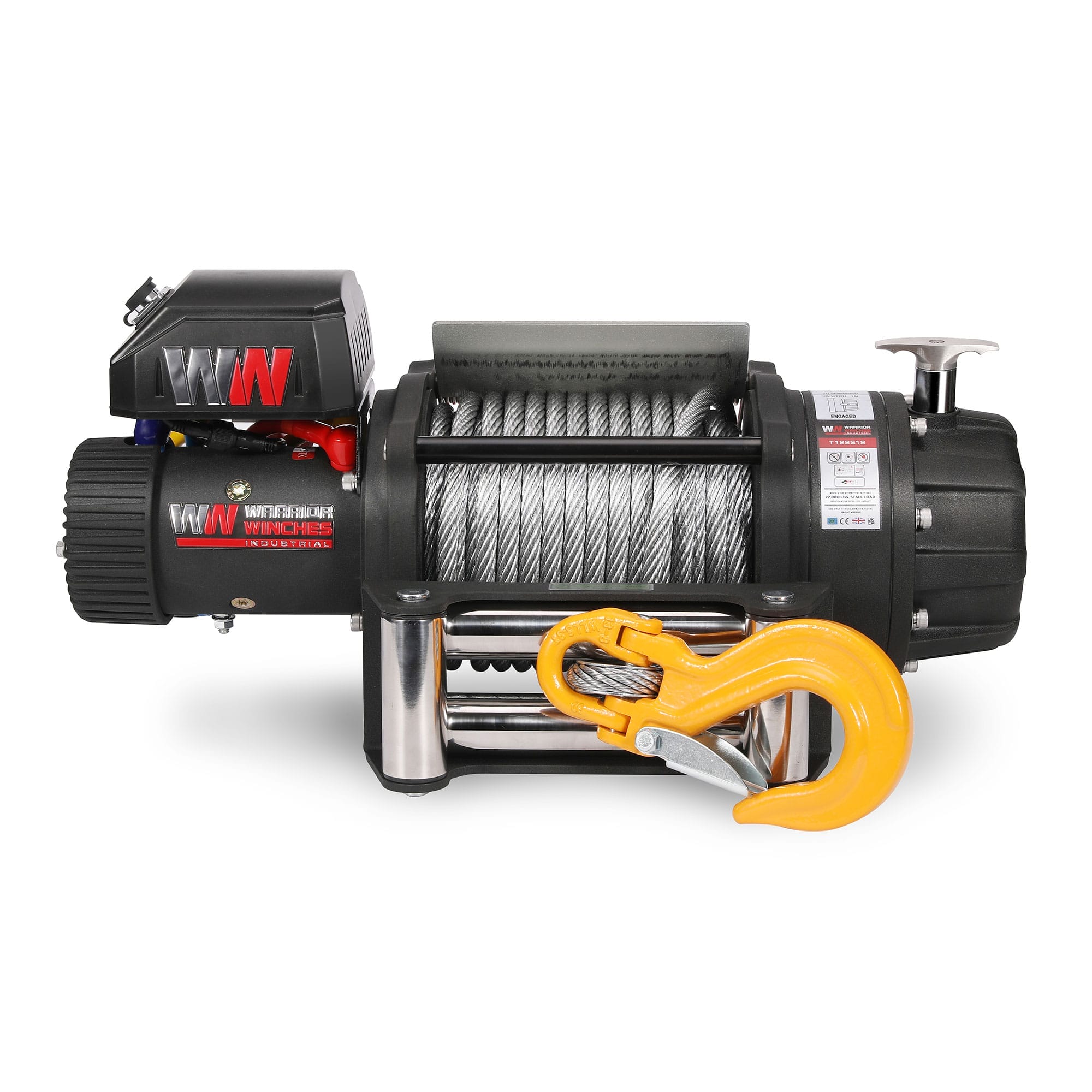

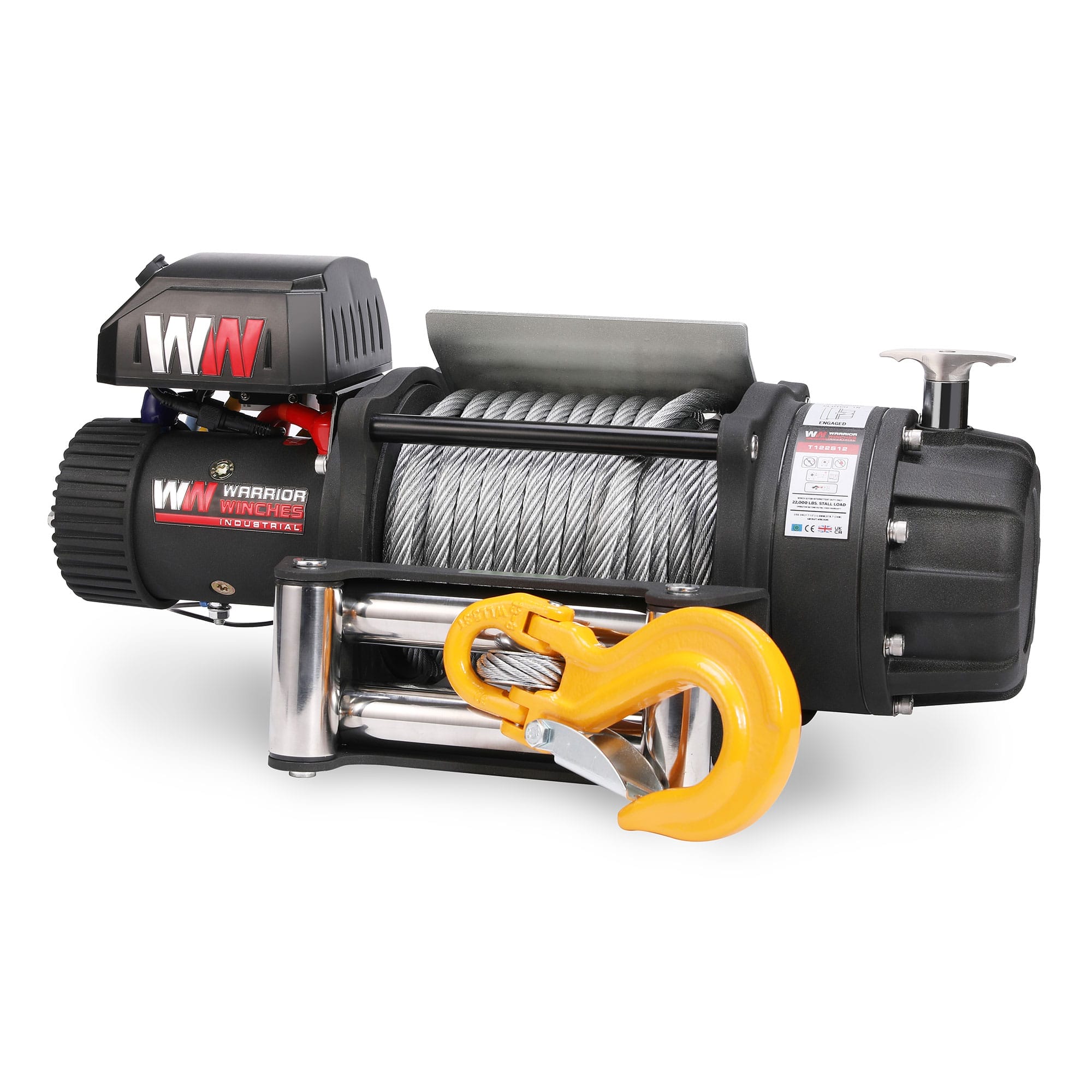

T1000 22,000 lb Severe Duty 12V Electric Winch – Steel Cable
Conquer extreme recovery jobs with the T1000 22,000 lb Severe Duty 12V Electric Winch. Built for military and industrial use, this winch features a steel cable, IP68 waterproofing, and an external brake system for unmatched performance in the harshest environments.
SKU: T122S12-CAD
$2,739.99
T1000 22,000 lb Severe Duty 12V Electric Winch – Steel Cable | Military-Grade Power for Extreme Recovery
SKU: T122S12-CAD
Crush the impossible. The T1000 22,000 lb Severe Duty Electric Winch (Model: T122S12-CAD) delivers elite-level performance for the harshest recovery jobs—military, industrial, or extreme off-road. Built with a hardened steel planetary gearbox, advanced external braking system, and IP68-rated waterproof housing, this 12V winch powers through mud, rock, snow, and sand without compromise.
From battlefield deployment to commercial haulers, this winch is engineered for severe-duty applications where failure is not an option.

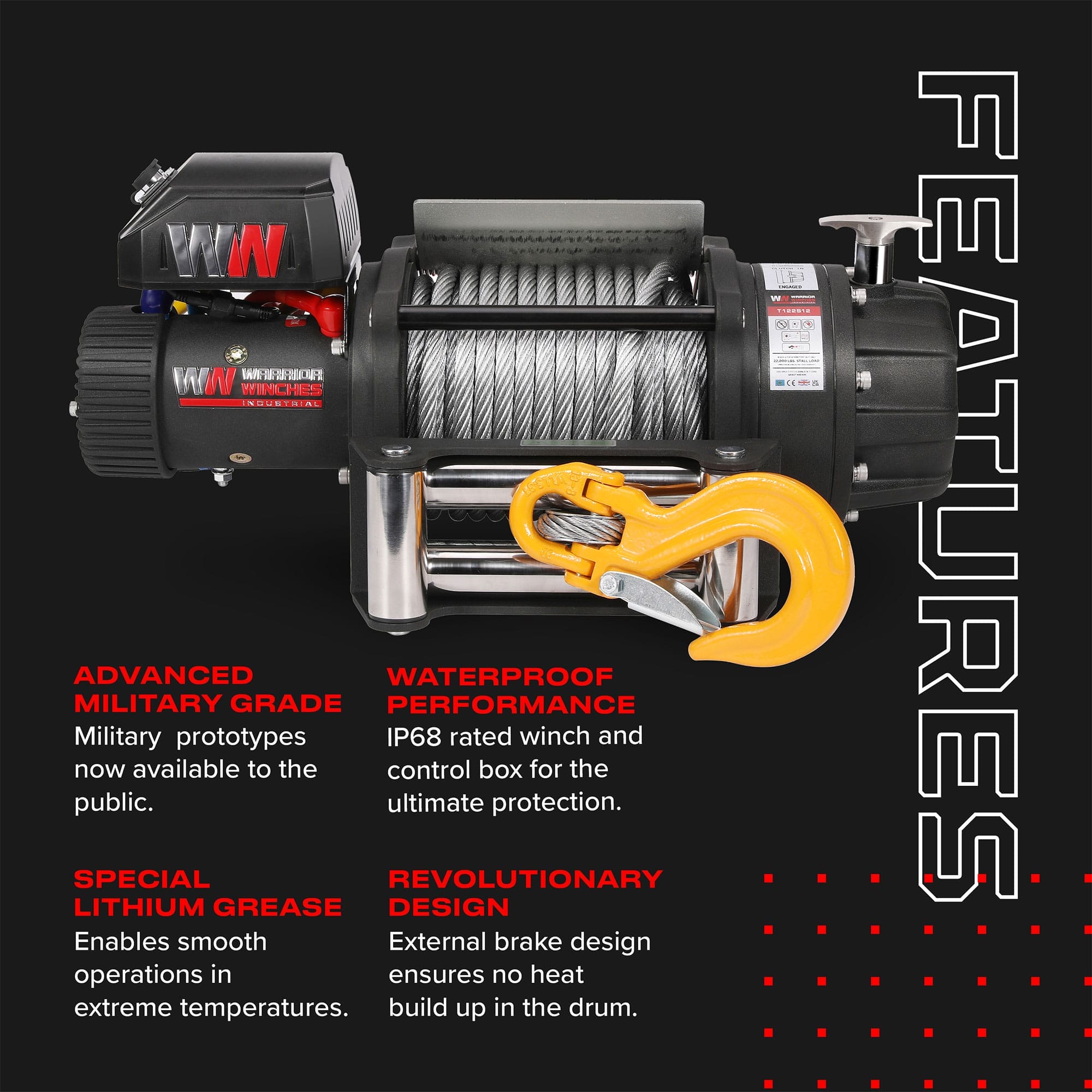

Why Choose the T1000 Severe Duty 12V Winch?
✅ 22,000 lb Rated Line Pull
Unrivaled strength to recover armored trucks, loaded trailers, heavy equipment, and tactical vehicles.
✅ External Mechanical Brake System
Heat-free performance and superior load control thanks to an externally mounted brake that keeps critical components cool under pressure.
✅ IP68 Waterproof & Dustproof Protection
Battle-tested military-grade sealing for confident operation in rain, snow, mud, or desert storms.
✅ Built-In Resettable Overload Protection (OLP)
Stops operation during overload to prevent damage, then resets easily—ensuring safe, continuous use in demanding situations.
✅ Steel Cable Durability
Heavy-duty wire rope provides high tensile strength with maximum abrasion resistance.
✅ Lithium-Based Grease Lubrication
Ensures consistent performance in extreme cold or blistering heat, reducing wear and extending gear life.
✅ 3-Stage Planetary Gear Train
Delivers torque and smooth winching under heavy load with minimal backlash or strain.
Specifications:
| Feature | Detail |
|---|---|

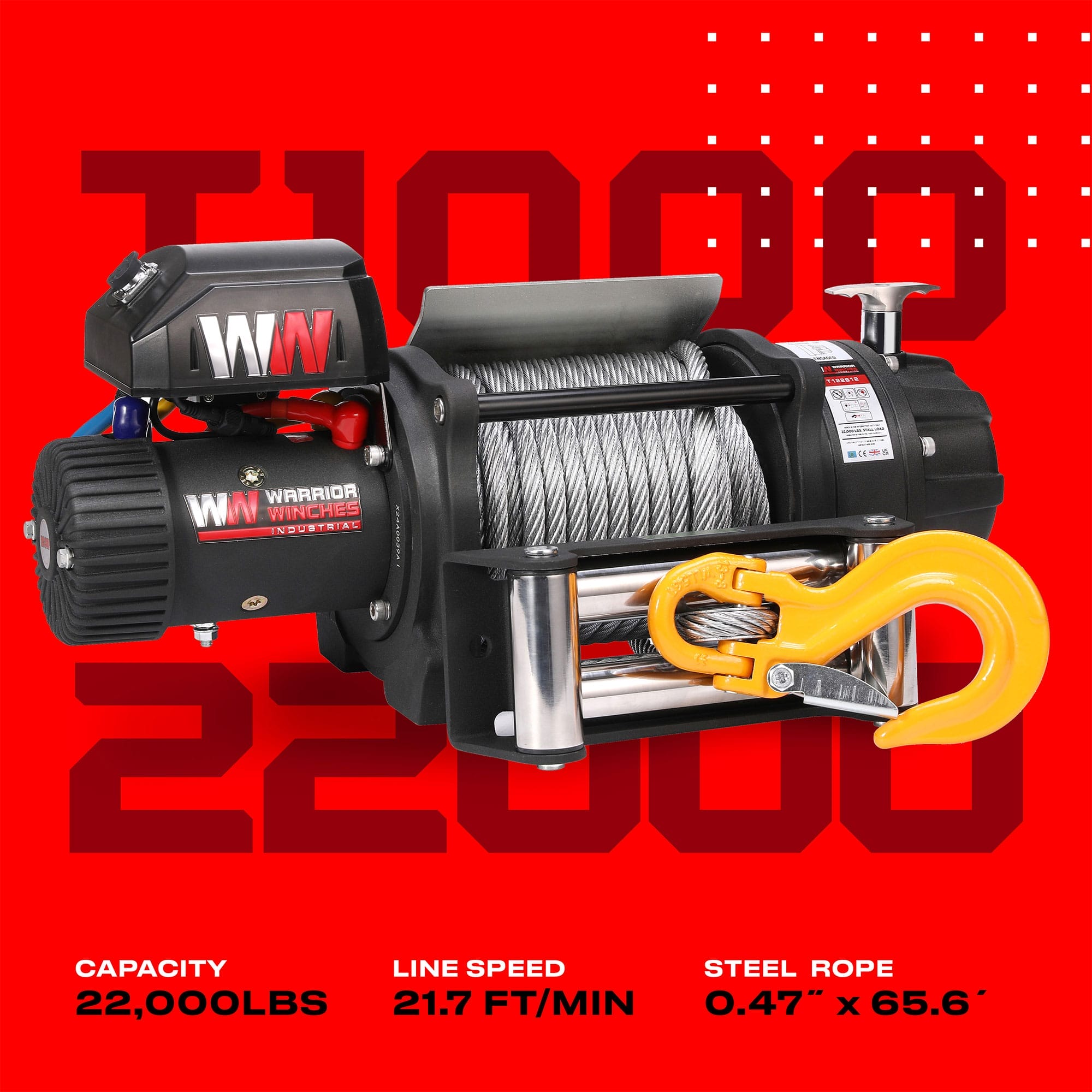

| Rated Line Pull | 22,000 lbs (9,979 kg) |
| Voltage | 12V DC |
| Rope Type | Steel Cable |
| Gear Train | 3-Stage Hardened Steel Planetary Gears |
| Brake Type | External Mechanical Brake |
| Motor Protection | Built-in Resettable Overload Protection |
| Waterproof Rating | IP68 Military-Grade |
| Lubrication | Lithium-Based Grease |
| Application | Military, Industrial, Recovery, Off-Road |
| Model Number | T122S12-CAD |
Perfect For:
-
Military & Tactical Vehicles
-
Industrial Recovery Fleets
-
Severe Off-Roading Rigs
-
Utility, Logging & Mining Equipment
-
Commercial Tow & Recovery Trucks
Born for Combat. Built for You.
The T1000 Series was designed for battlefield reliability, debuting at the Defence and Security Equipment International (DSEI) Expo to rave reviews. Now available to the public, this winch brings military-tested engineeringto your toughest commercial or off-road applications.
Whether you’re upfitting a heavy-duty recovery rig or prepping for overland extremes, the T122S12-CAD is ready to dominate.
Have Questions or Need Install Help?
Call or text our expert support team at (602) 292-9690. We’ll help you select the right winch for your application, ensure compatibility, and assist with installation tips.
Additional Resources:
| RATED LINE PULL | 22000 LBS |
| MOTOR TYPE | 12V:INPUT: 5.5KW / 7.4HP; OUTPUT: 2.9KW / 3.9HP |
| RATED VOLT | 12V |
| CLUTCH | MANUAL |
| GEARING | 450:1 |
| GEARING SYSTEM | PLANETARY |
| BRAKING ACTION | EXTERNAL BRAKE |
| DRUM SIZE (DIAMETER X LENGTH) | 3.46 X 8.39 IN |
| CONTROLS | WIRED REMOTE WIRELESS REMOTE |
| CABLE MATERIAL | STEEL |
| CABLE SIZE (DIAMETER X LENGTH) | 0.54 IN X 66 FT |
| FAIRLEAD | HAWSE |
| MOUNTING PATTERN | 10 X 4.5 IN |

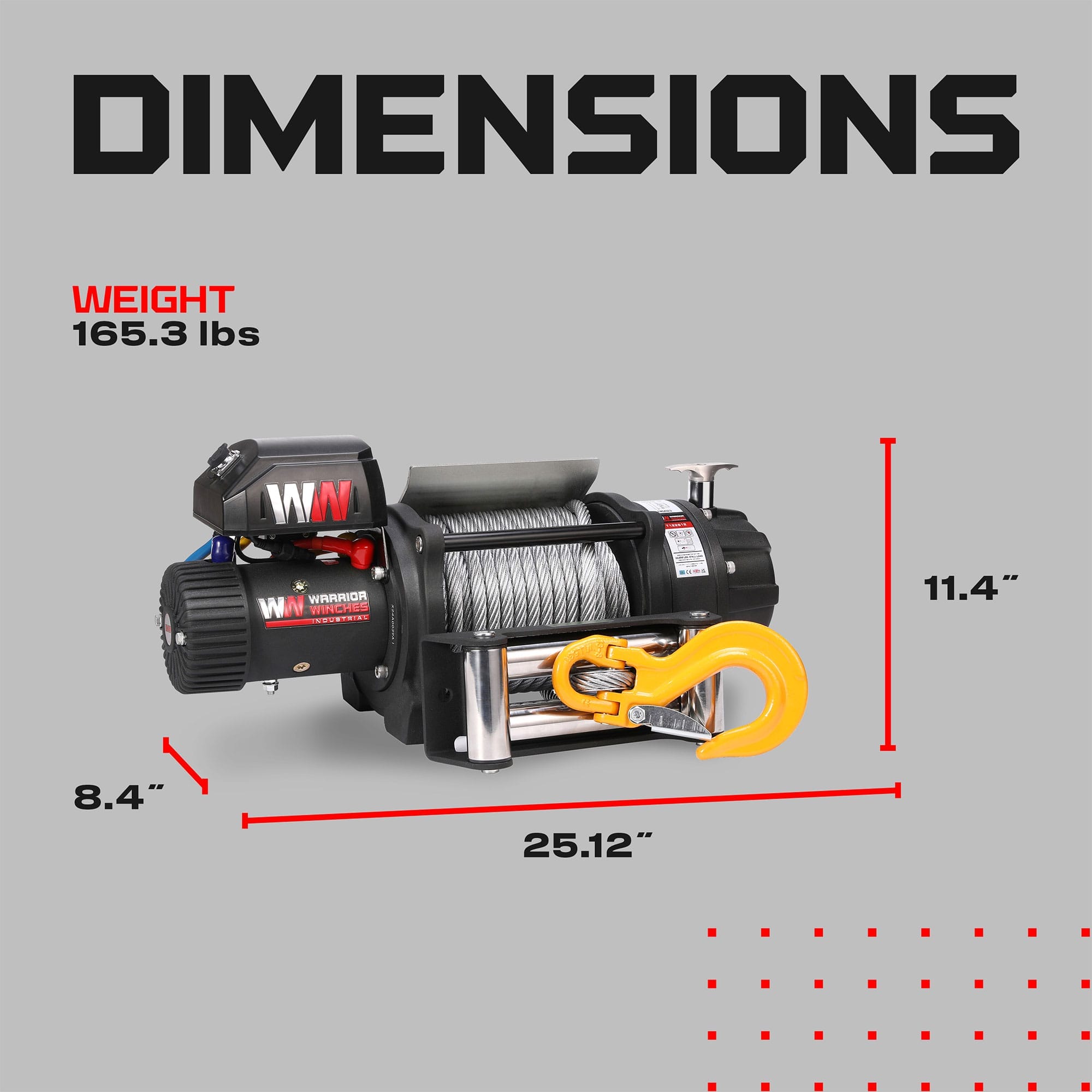

| DIMENSIONS (LWH) | 25.12 X 8.43 X 11.38 IN |
| WEIGHT | 165 LBS |
| WARRANTY | 5 YEAR |
| WATERPROOF RATING (IP) | 68 |
| CERTIFICATION | CE |
| LAYER OF ROPE/CABLE | LINE PULL: LBS(KGS) | ROPE ON DRUM FT(M) |
|---|---|---|
| 1 | 22000 (9979) | 14.1 (4.3) |
| 2 | 17300 (7847) | 32.8 (10.0) |
| 3 | 14260 (6468) | 55.1 (16.8) |
| 4 | 12130 (5502) | 65.6 (20.0) |
| LINE PULL LBS (KGS) |
LINE SPEED 12V FT/MIN (M/MIN) |
LINE SPEED 24V FT/MIN (M/MIN) |
AMP DRAW 12V |
AMP DRAW 24V |
|---|---|---|---|---|
| 0 | 21.7 (6.6) | 23.0 (7.0) | 65 | 40 |
| 5000 (2268) | 9.8 (3.0) | 10.2 (3.1) | 175 | 100 |
| 10000 (4536) | 6.6 (2.0) | 7.2 (2.2) | 270 | 150 |
| 15000 (6804) | 4.9 (1.5) | 5.2 (1.6) | 350 | 200 |
| 22000(9979) | 3.0 (0.9) | 3.3 (1.0) | 460 | 270 |
