T86 Submersible LED Tail Lights
6″ box tail lights
6″ box tail lights
6″ box tail lights
T86 Submersible LED Tail Lights
, , , ,

T86 | Submersible LED Tail Light Kit – 6″ Box

* Free Shipping on All TecNiq LED Lights Within the Contiguous U.S. *

$35.49

The T86 Submersible LED Tail Light is able to meet all requirements for stop, turn, tail, side marker, clearance marker, rear reflector, side reflector and license plate light in a revolutionary, cost-effective design. With a sonic-welded case and potted electronics, this light will survive the harshest environment. Unlike the competition, this lamp is actually submersible!

Although every manufacturer claims that their box light is waterproof, leakage is still the main complaint. We solved this problem by designing the light engine to be less than 0.6″ thick. This allows us to guarantee a perfect, waterproof seal every time. And despite the T86’s unique design, it still fits in the industry-standard spacing, and uses standard hardware. If you ever manage to break the lens and the light fills with water, rest assured that the potted circuitry guarantees it will still continue to work for years! Backed by TecNiq’s life time warranty.

T86 | Submersible LED Tail Light Kit – 6″ Box

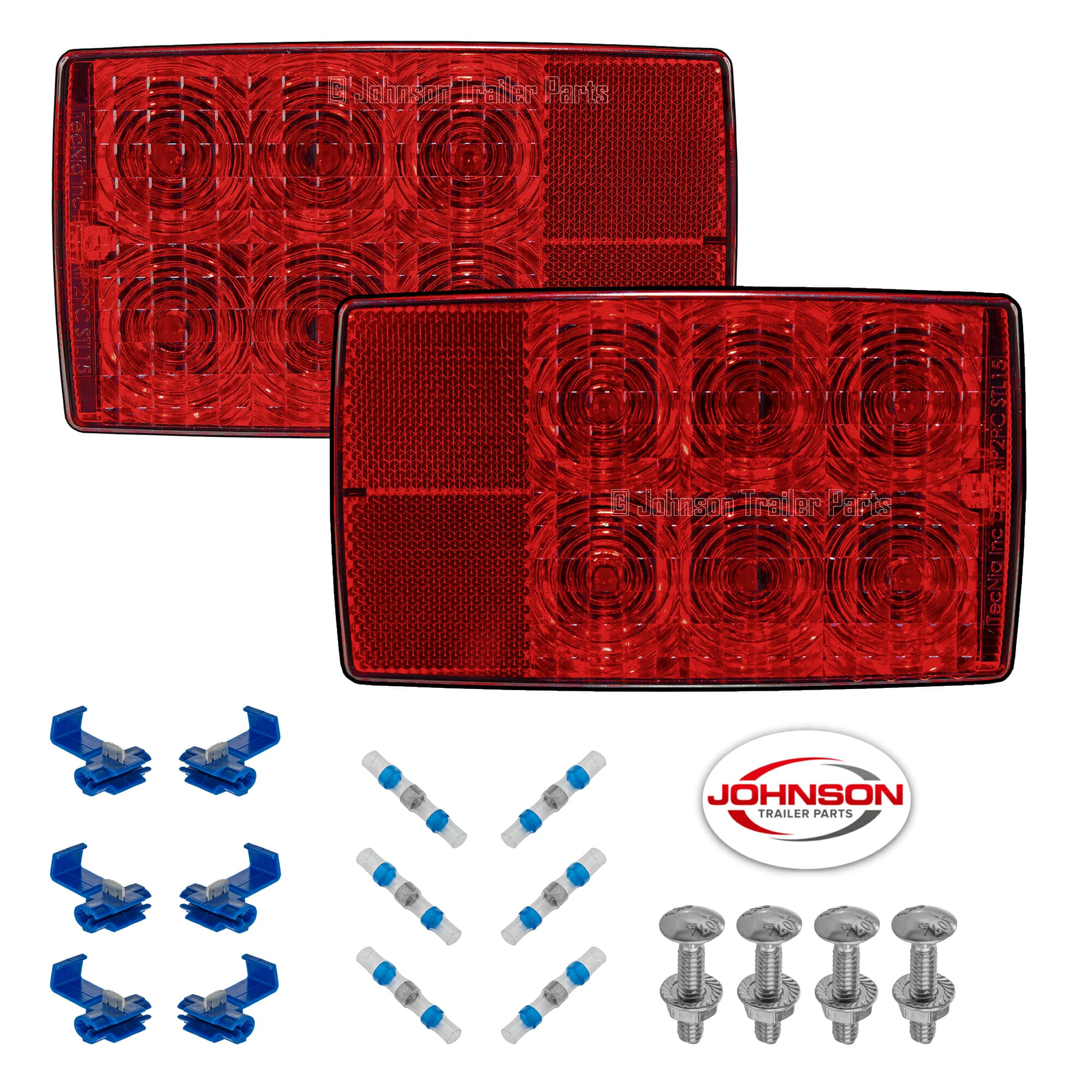

  • Whats Included with this T86 Submersible LED Tail Light Kit – 6″ Box
    • (1) Left Tail Light (Drivers Side Includes License Plate Light) T86-RRLG-1
    • (1) Right Tail Light ( Passenger Side) T86-RRRG-1
    • (4) 1/4″ x  1-1/4″ Carriage Bolts with Flange Nuts
    • (6) Blue Heat Shrink Solder Melt Butt Connectors
    • (6) Blue Quick Splice Connectors
    • (1) Johnson Trailer Parts Sticker



Features:

  • Multi-Function 6″ box tail lights
  • TecSeal Urethane Potting – Guaranteed Circuit Board Protection
  • IP68 Rated – Dust and water proof with hermetic seal
  • Durable impact resistant lens
  • Meets all FMVSS 108 requirements for narrow and wide vehicles
  • Reliable performance over 100,000 hours
  • Fits standard mounting as a direct replacement
  • Functions include:
    • Stop • Turn • Tail • Clearance • Side marker • Side Reflector •
      Rear Reflector • License Plate Light (Left)
  • TecNiq T86 Specification Sheet

Check out all of our TecNiq LED Trailer Lights Here.

About TecNiq, Inc.

Changing the Shape of Light ™
“Our goal as an OEM supplier is to surpass your product quality expectations, and ensure your customers are completely satisfied with our LED products. We are so passionate about our total commitment to quality, that we back every one of our LED lights with a lifetime guarantee.

From fleet and emergency response vehicles, construction trailers, boats or heavy and light duty trailers – consistent performance is key. Expect more from your LED provider, get more from TecNiq.”

Save

SKU: T86 | Submersible Tail Light Kit Categories: , , , , Tags: , , , , , , , , , ,

T86 | Submersible LED Tail Light Kit – 6″ Box

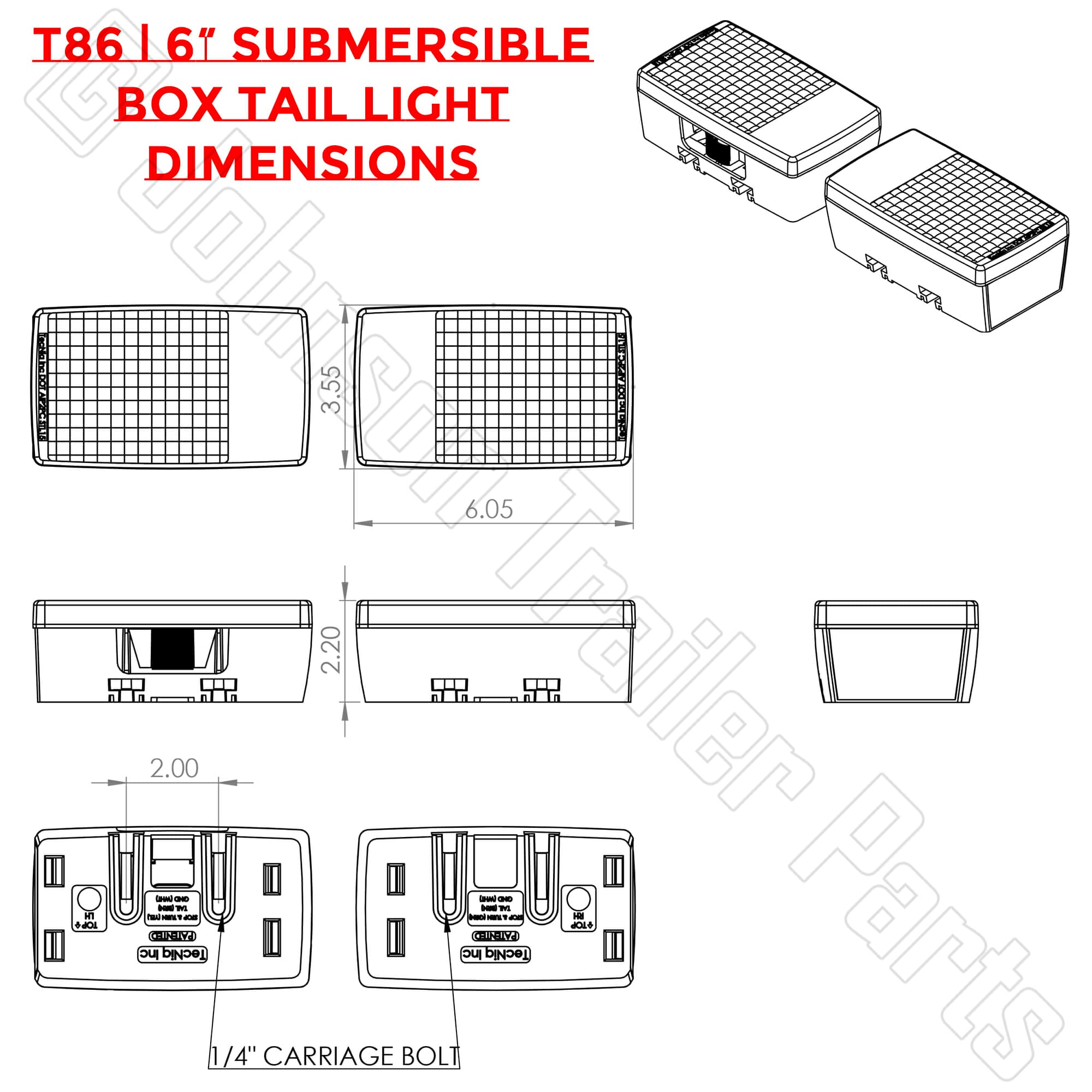

  • Dimensions: 6″ x 3.55″ x 2.2″
  • LEDs: 6 + 1 white license plate light on left side
  • Voltage: 9 – 14V DC
  • Current:
    • Left: 0.14A-0.17A
    • Right: 0.06A-0.08A
    • Brake: + 0.9A-0.15A
  • Connector: 9″ Pigtail w/ ground ring
  • Mounting: Uses (4) ¼-20 carriage bolts (Included)

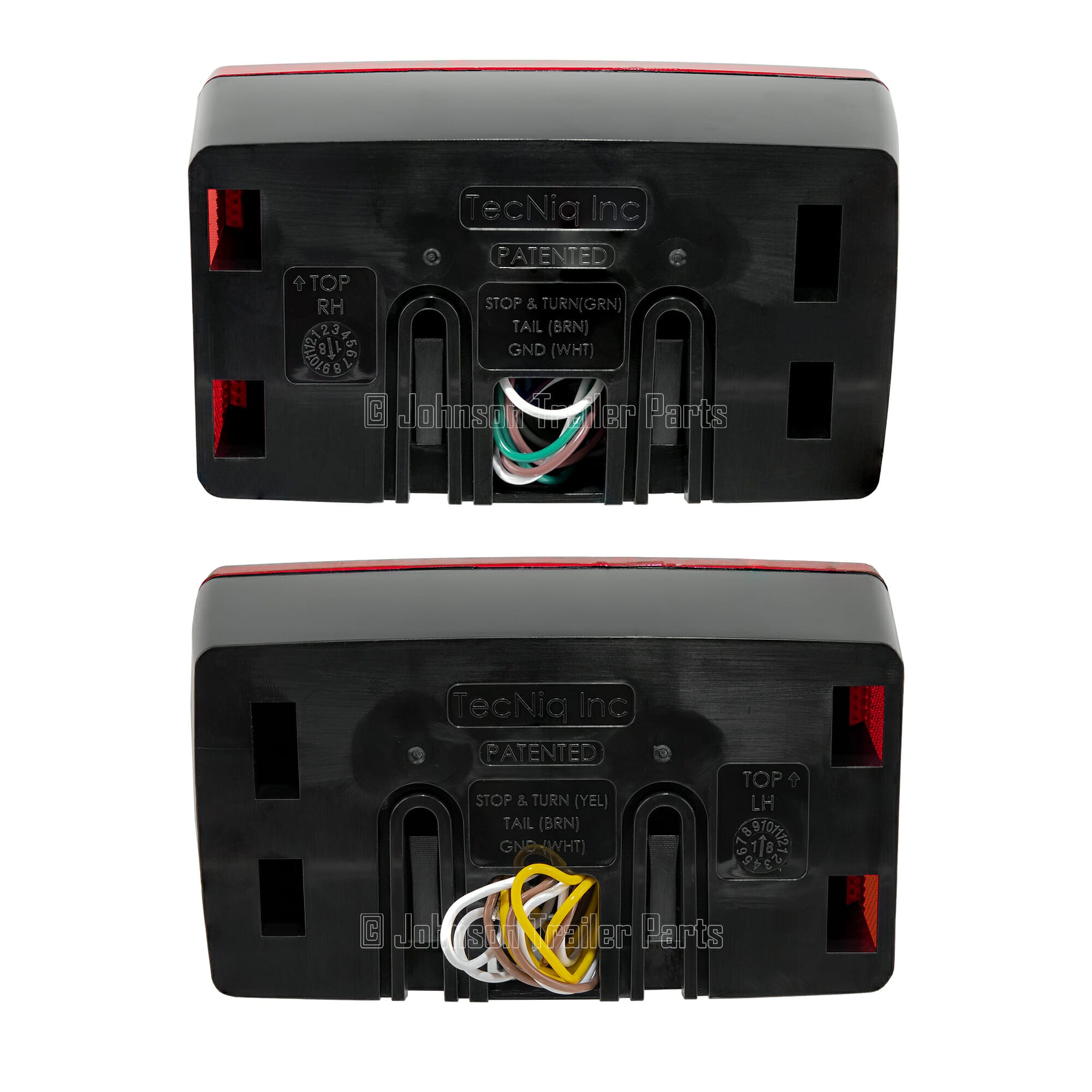

  • Wire Colors:
    • White: Ground
    • Brown: Running Lights
    • Green: Right Turn / Brake
    • Yellow: Left Turn / Brake
