6’10” x 20′ Car Hauler / Equipment Trailer Plans – 14k-16k


Build your perfect 6’10” x 20′ Car Hauler / Equipment Trailer with 14,000 lbs  or 16,000 lbs capacity using our detailed, versatile trailer plans.

$46.99$56.99

Build your ultimate heavy-duty equipment hauling trailer with our 6’10” x 20′ Car Hauler / Equipment Trailer Plans, engineered by Synthesis Engineering. Designed for strength and versatility, this trailer can be customized to meet your specific needs with a choice between 14,000 lbs or 16,000 lbs capacity. The plans include detailed instructions and multiple configuration options to ensure a perfect build.

A trailer parts kit for this 6’10” x 20′ Car Hauler / Equipment Trailer Plans will be available soon on our website. If you need the kit sooner, please contact us.

Specifications:

  • Model: 7×20-140ds-cctrailer (Mu720DS14C)
  • Bed Size: 6’10” x 20′ nominal (see specs tab for more information)
  • Axle Type: Tandem axles with leaf springs (double eye or slipper style)
  • Load Capacity: 14,000 lbs or 16,000 lbs total
  • Frame Material: Welded steel with I-Beam and C-Channel construction
  • Width at Fenders: 102″
  • Trailer Weight: Varies based on design options

Design Features:

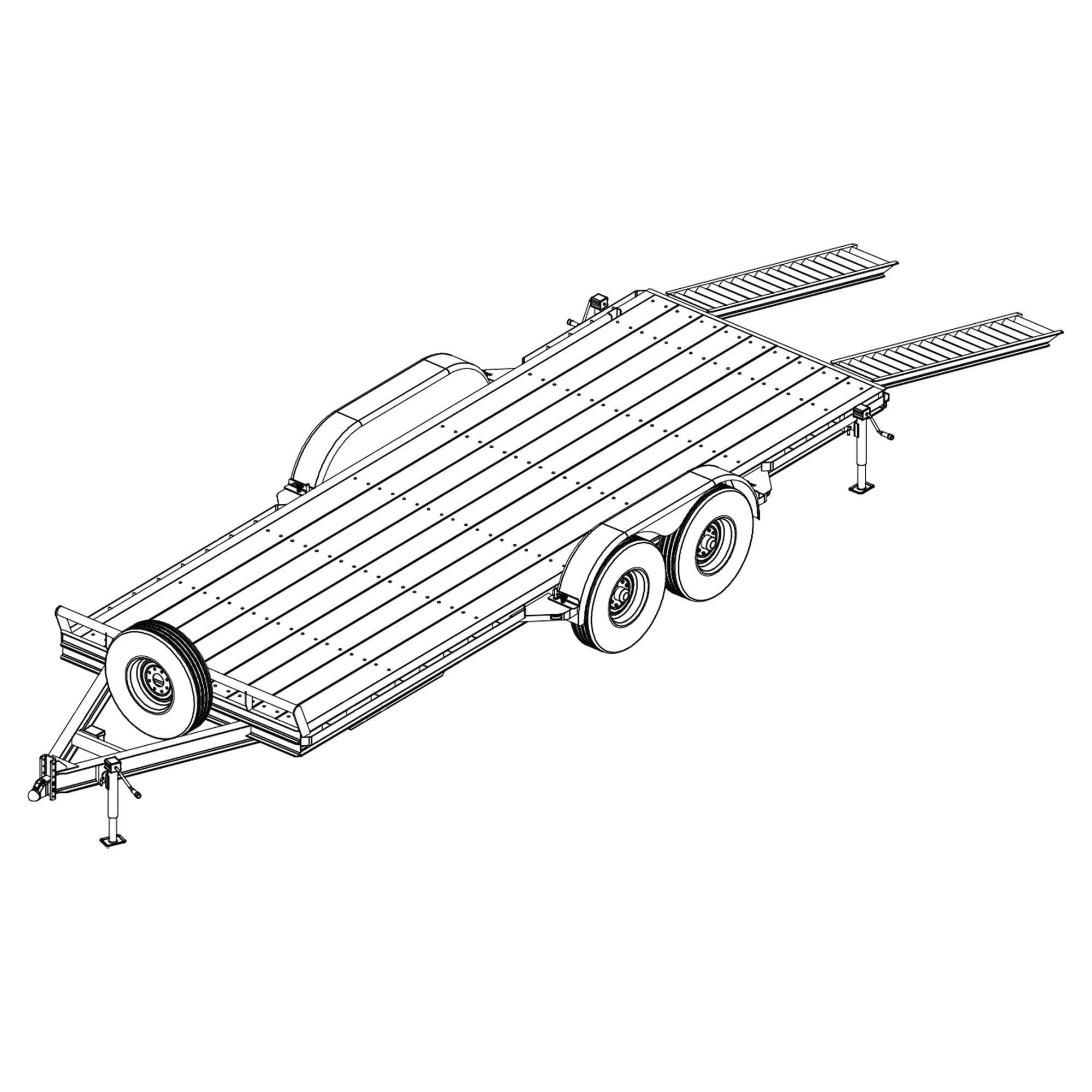

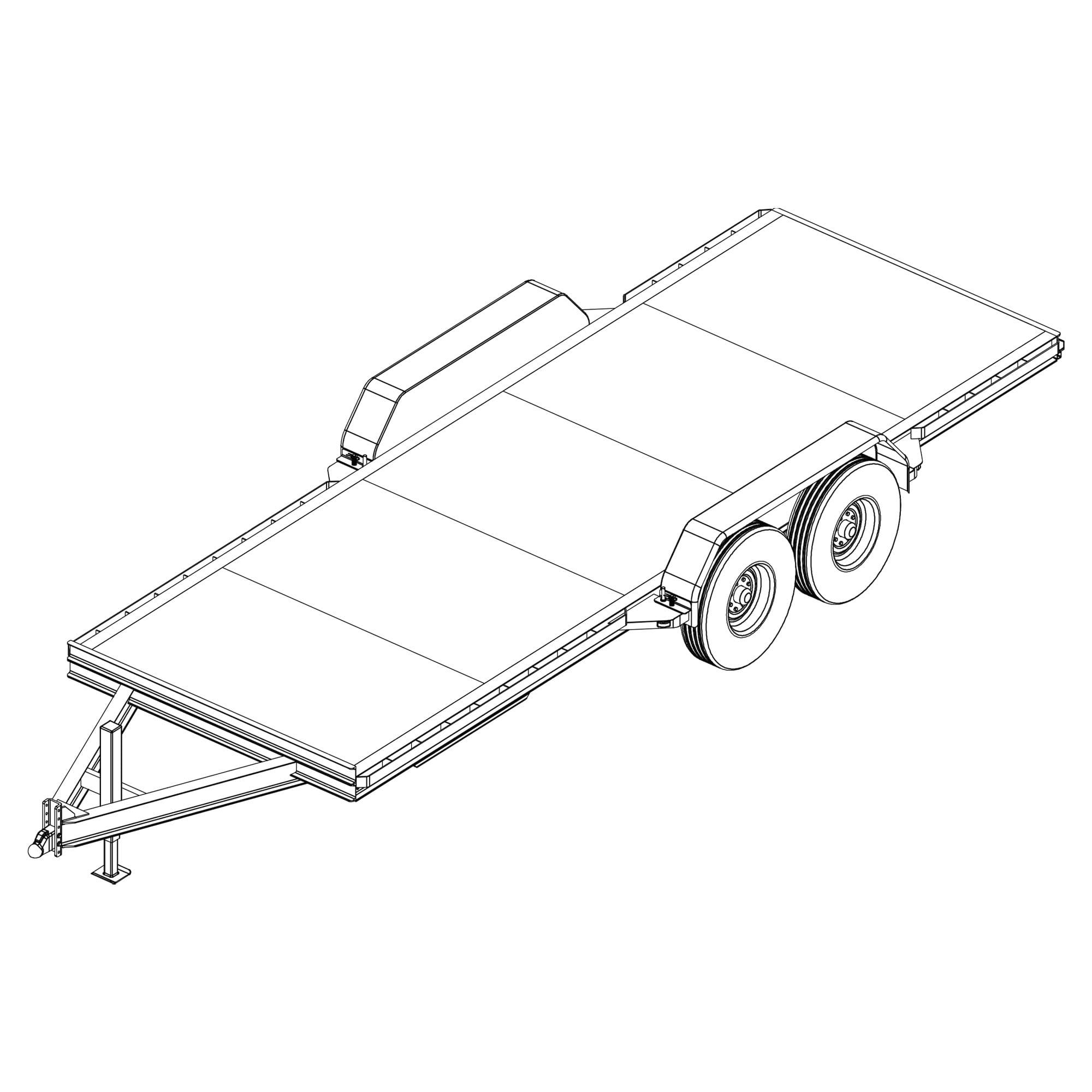

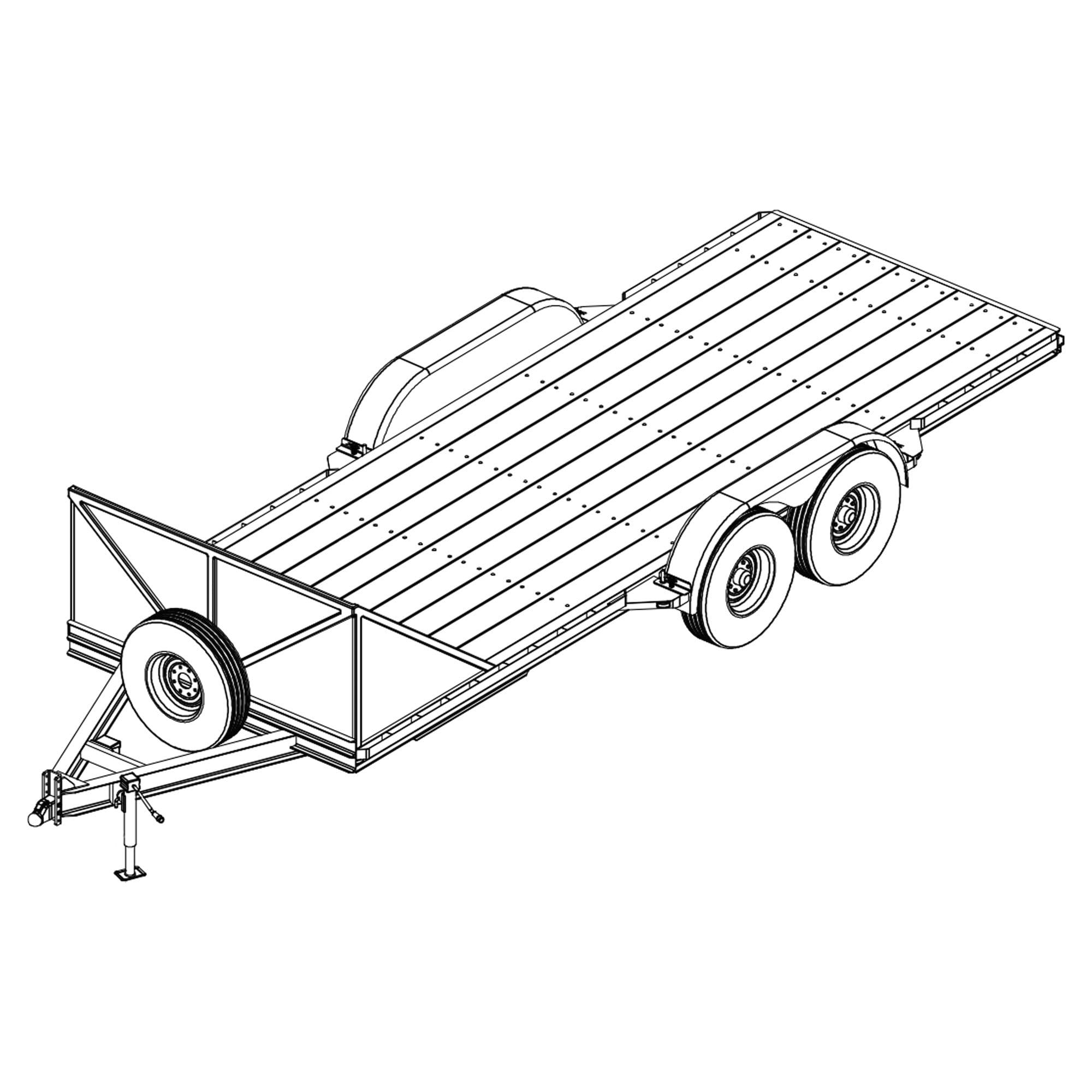

  • Deck Options: Choose from Plywood, Planks, Split Deck, or Metal decks
  • Removable Fenders: Option to weld or bolt down solid
  • Ramp Choices: Detailed ramp designs with storage options under the deck, and customizable length, width, capacity, and material
  • Tie-Down Points: Multiple options for tie-down anchors, allowing flexible placement
  • Winch Options: Mount a winch either as a removable or solid mount

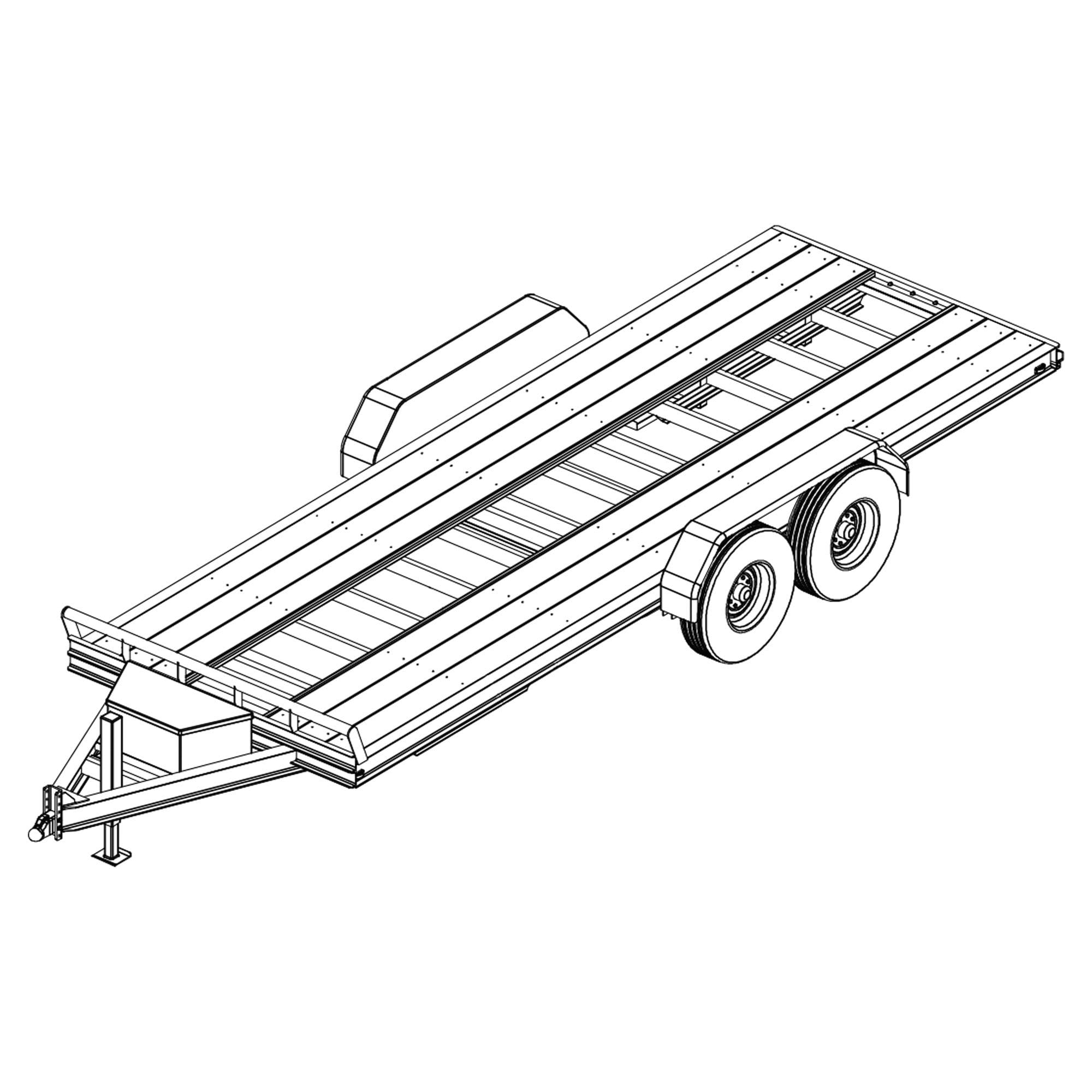

  • Toolbox and Jack Options: Include a tongue-mounted toolbox and optional tongue jack and rear supports
  • Comprehensive Plans: Full set of drawings with illustrated step-by-step instructions
  • Customizable Design: Modify the trailer to fit your unique hauling needs

Strength:

Our equipment trailer plans prioritize strength and durability with I-Beam and C-Channel welded steel construction. The robust design ensures the trailer can handle heavy loads and withstand rigorous use, making it perfect for demanding transport needs. These plans were engineered by Synthesis Engineering, ensuring top-notch quality and performance.

Customization:

Customize the trailer to your specific requirements. Our plans provide guidance on adjusting the bed size, selecting deck materials, and adding features like fenders, ramps, and tie-down points. The flexibility in design allows you to create a trailer that perfectly suits your needs. For more information, check out this article.

Delivery:

  • PDF Download: Instantly download the 6’10” x 20′ Car Hauler / Equipment Trailer Plans  in PDF format, printable in various sizes, or viewable on your device. Orders can be downloaded immediately after purchase from our website or confirmation email.
    • For convenient download, the Trailer Plans are provided in a .ZIP file. If needed, you can get a free PDF reader from Adobe.com and a free ZIP utility from WinZip.com.
  • Paper Copy: Receive the drawings printed on 11″ x 17″ paper and the construction instructions on 8.5″ x 11″ paper, all with free shipping.

Support:

If you accidentally delete your file, contact us for assistance. Our team is available to help you safely modify your trailer and provide guidance to ensure your build is successful.

6’10” x 20′ Car Hauler / Equipment Trailer Plans – 14k-16k
  • Trailer Deck Size: Trailers built from these tandem axle trailer plans have an actual bed width of 6′ 10″ and a bed length of 20′ 3.5″.
  • Overall Length: Including the tongue, the overall length is just over 25′ 5″, though this will vary with the options chosen.
  • Deck Height: Actual trailer bed height will depend on design options chosen, typically ranging from 22″ up (bed height shown is ~23″ using drop axles).
  • Load Capacity: Maximum trailer capacity is 14,000 lbs or 16,000 lbs (combined axle rating), which includes the trailer and its load.
  • Trailer Weight: Trailer weight will vary depending on design options. The 14K base trailer is approximately 2200+ lbs. Additional features such as tie-down options, decking choices, toolbox, winch, battery, ramps, and jack styles will add to the weight, likely bringing the total to around 3000 lbs.

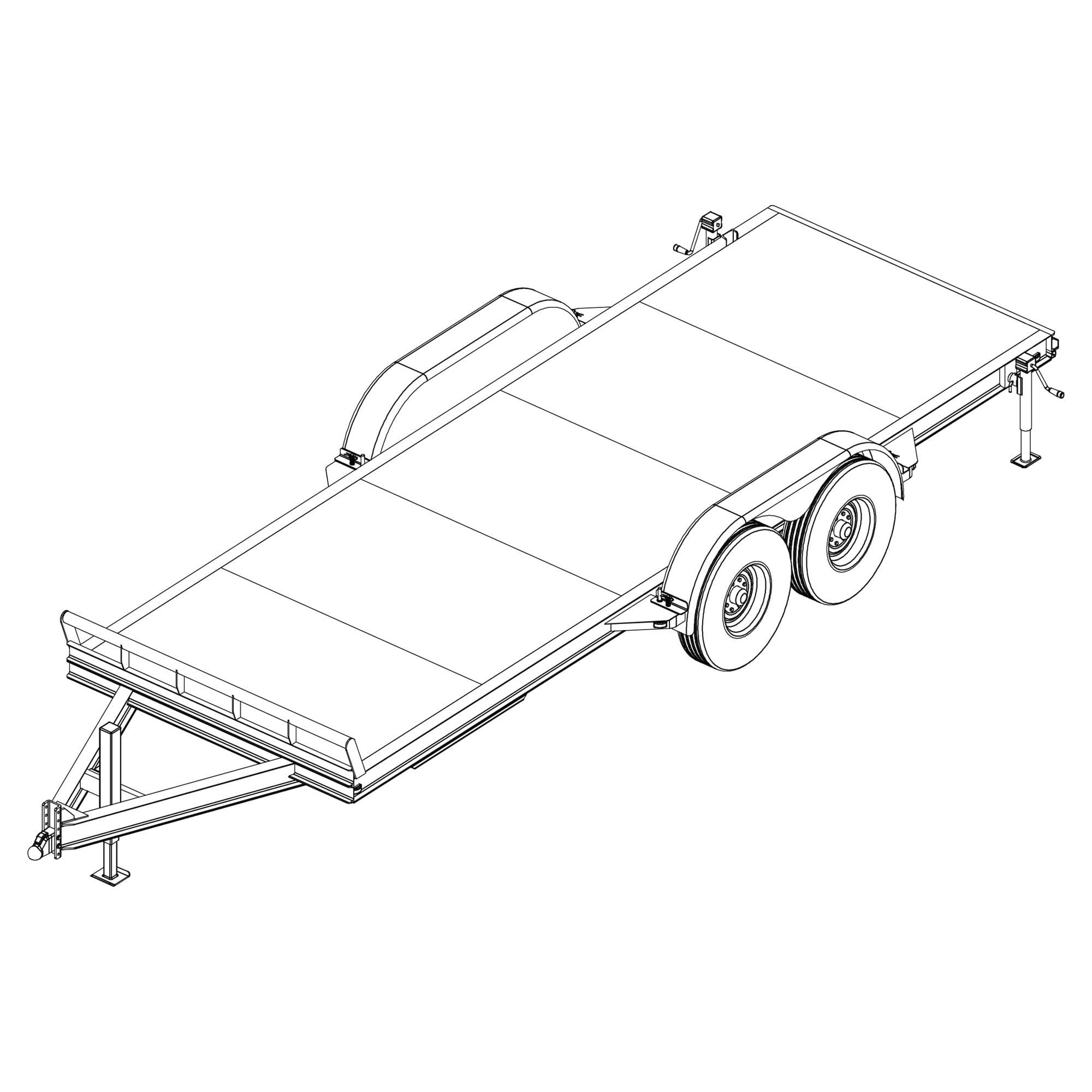

  • Options: Numerous options are included in the plans. Features like decking choices, tie-down points, ramps (with options for length and strength), a mounted toolbox, a winch, jacks, removable fenders, and a front rail are available for optional functionality. Some options are mutually exclusive, and not all options are shown in the pictures here.
