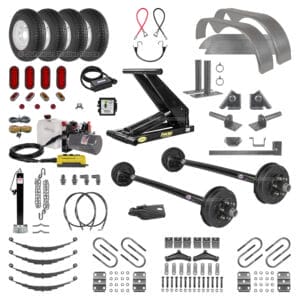

Hydraulic Tilt Trailer Parts Kit – 10.4k

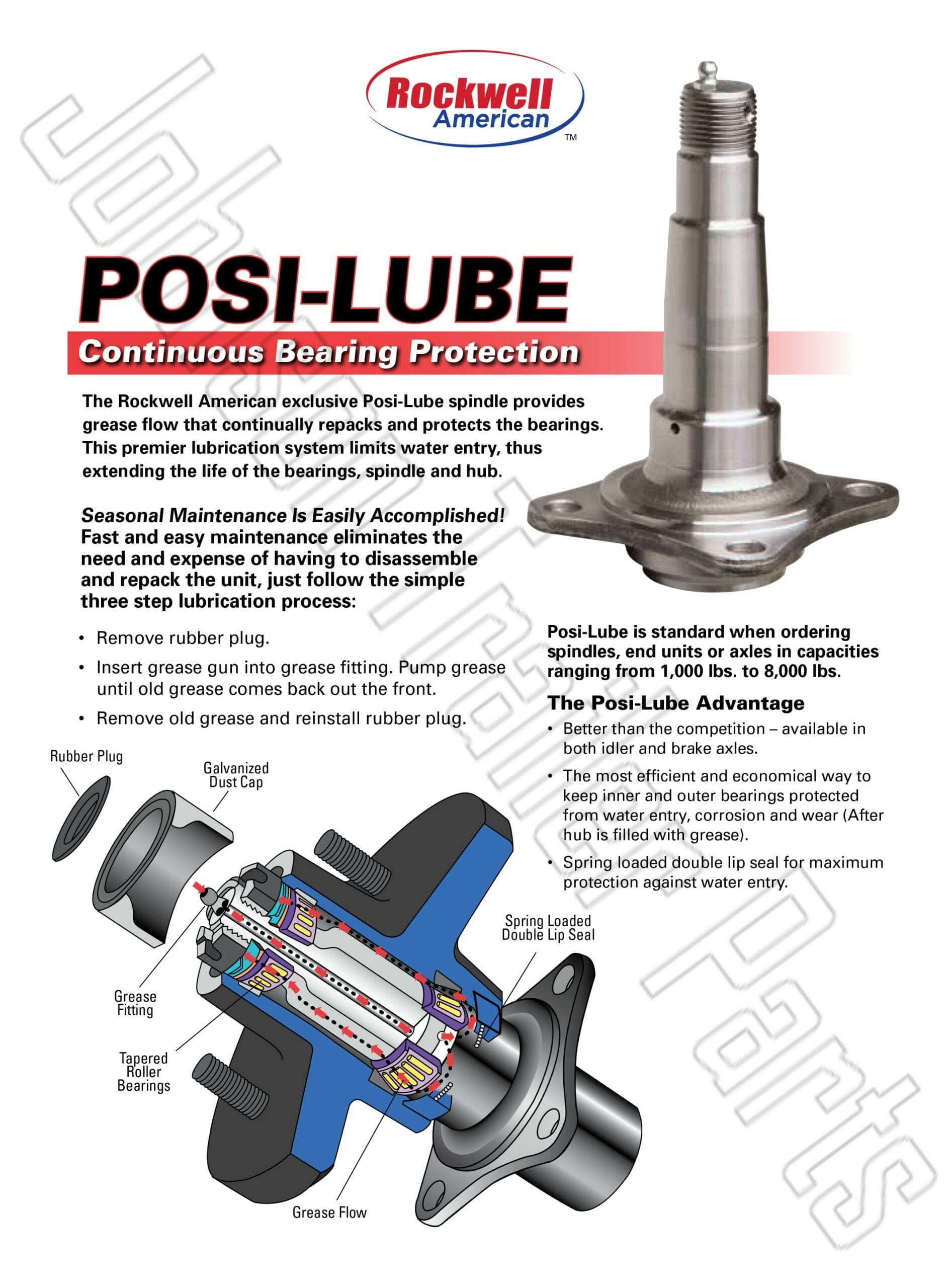

Hydraulic Tilt Trailer Parts Kit – 10.4k | Rockwell American Trailer Axles come with a 2 yr Manufacturers Warranty and a Superior Powder Coated Finish and Patented “Posi-Lube” system that Provide Continuous Bearing Protection.

Premium Supply is a Industry Leader for Tilt Trailer Hydraulics. Backed with a 36 month Standard Warranty

Included Components in the Hydraulic Tilt Trailer Parts Kit – 10.4k

• • (2) 5,200 lb Rockwell American Trailer Axles with Electric Brakes, Bearings, Lugs & Nuts. (Cambered)
    • 655 Bolt Pattern
    • Bottom Mount Springs
  • (4) Double Eye Leaf Springs – 25.25″ Eye to Eye, 1.75″ Wide – 2,900 lb Capacity Ea , 5 Leaf, 3″ Arch, .5625″ Eye
  • (2) U-Bolt Kit, Round 3″ x 7″ x .5625″-18 with U-Bolts, Plates, Washers & Nuts.
  • (1) Tandem Hanger Kit for Double Eye Springs.
  • (2) Tandem Fenders 9″ x 72″
  • (2) Tandem Fender Backs – Pre-cut
  • (1) A-frame Slide Latch Coupler for 2 5/16″ Ball – 12.5k Capacity
  • (1) Drop Leg Jack, 7K, Weldon
  • (2) Safety Chains – 5/16″  x 30″,  with S Hook and Safety Latch – 7.6k
  • (2) Weld-on Safety Chain Anchors 7/16″
  • (1) TecNiq LED Light Kit Includes: (All Lights are Tecniq LED Lights)
    • (2) 6″ Oval Grommet Mount Lights
    • (2) 2.5″ Amber Grommet Mount Sidemarkers
    • (5) 2.5″ Red Grommet Mount Sidemarkers
    • (1) License Plate Light
  • (1) Wiring Kit Includes:
    • (1) 4-Way Wire Harness – 25 ft
    • (1) 15′ Jacketed Brake wire (14g-2, black and white)
    • (1) Breakway Kit
    • (1) 7 way Trailer Cord with Junction Box – 7 ft
  • (4) 15″ Bias Ply Trailer Wheels and Tires – Mounted
    • ST225
    • Bias 8 Ply
    • 655 Bolt Pattern
    • 2.54k Capacity Each
  • (1) Hydraulic Tilt Deck Kit – Welded | 310 W
    • Hydraulic Power Unit (HPU) Double Acting
    • Two Toggle Clamps
    • Rubber Battery Strap
    • 3 x 10 Cylinder Assembly
    • Hydraulic Fittings
    • Hydraulic Hoses Between HPU and Cylinder One 3/8 x 110 long One 3/8 x 120 long
    • Two Battery Cables 2GA. X 16
    • Two cylinder supports
    • Safety Signs
    • Two Hinges

Our Hydraulic Tilt Trailer Parts Kit – 10.4k can be Modified to Better Suit Your Needs. Please contact us if you have any questions we can assist you with.  (602) 292-9690  (602) 292-9690

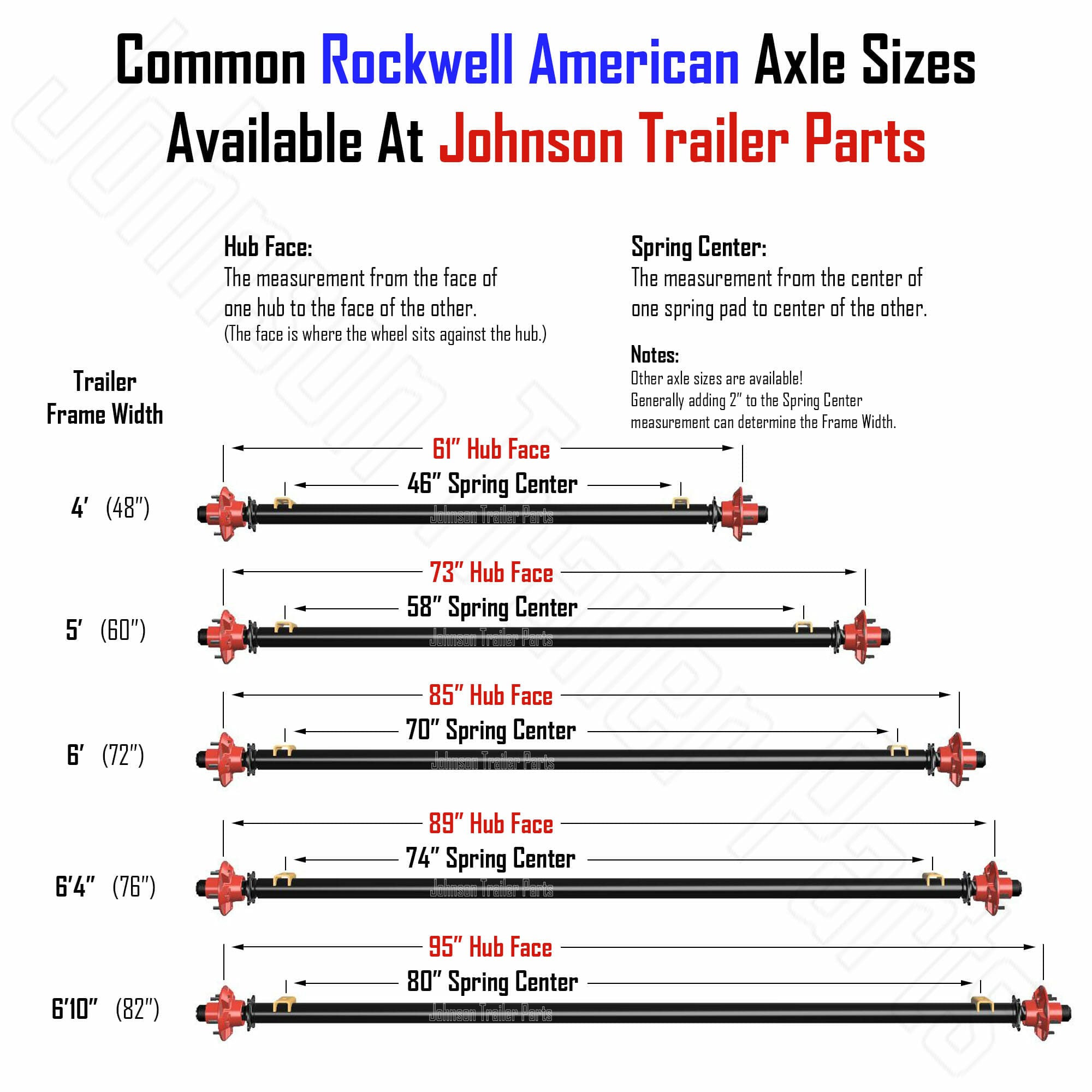

Most Common Axle Size for this kit: Other Sizes Available, Contact us.

• 95″ Hubface – 80″ Spring Center – This fits a 82″ Frame Width (6 ft 10 in)

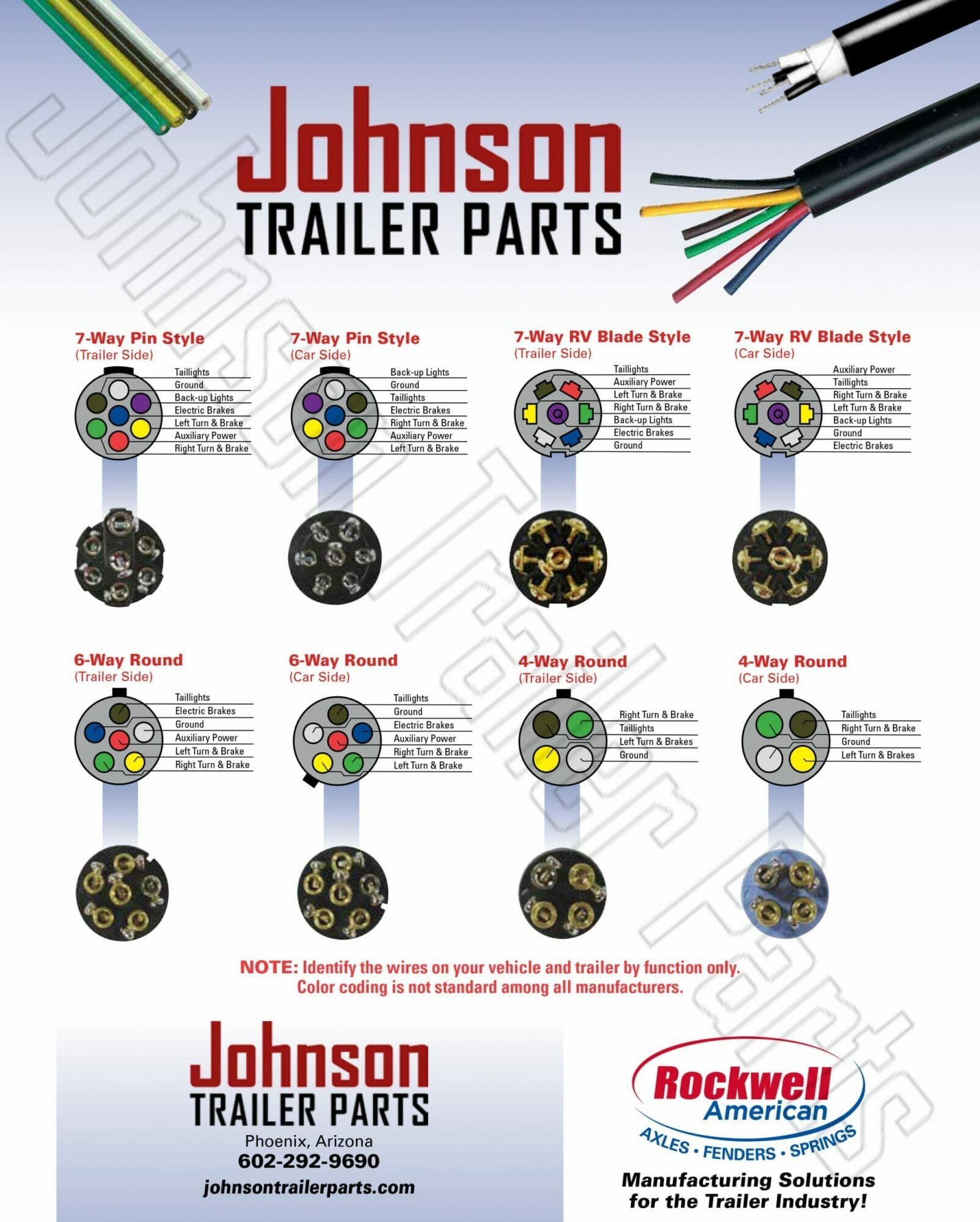

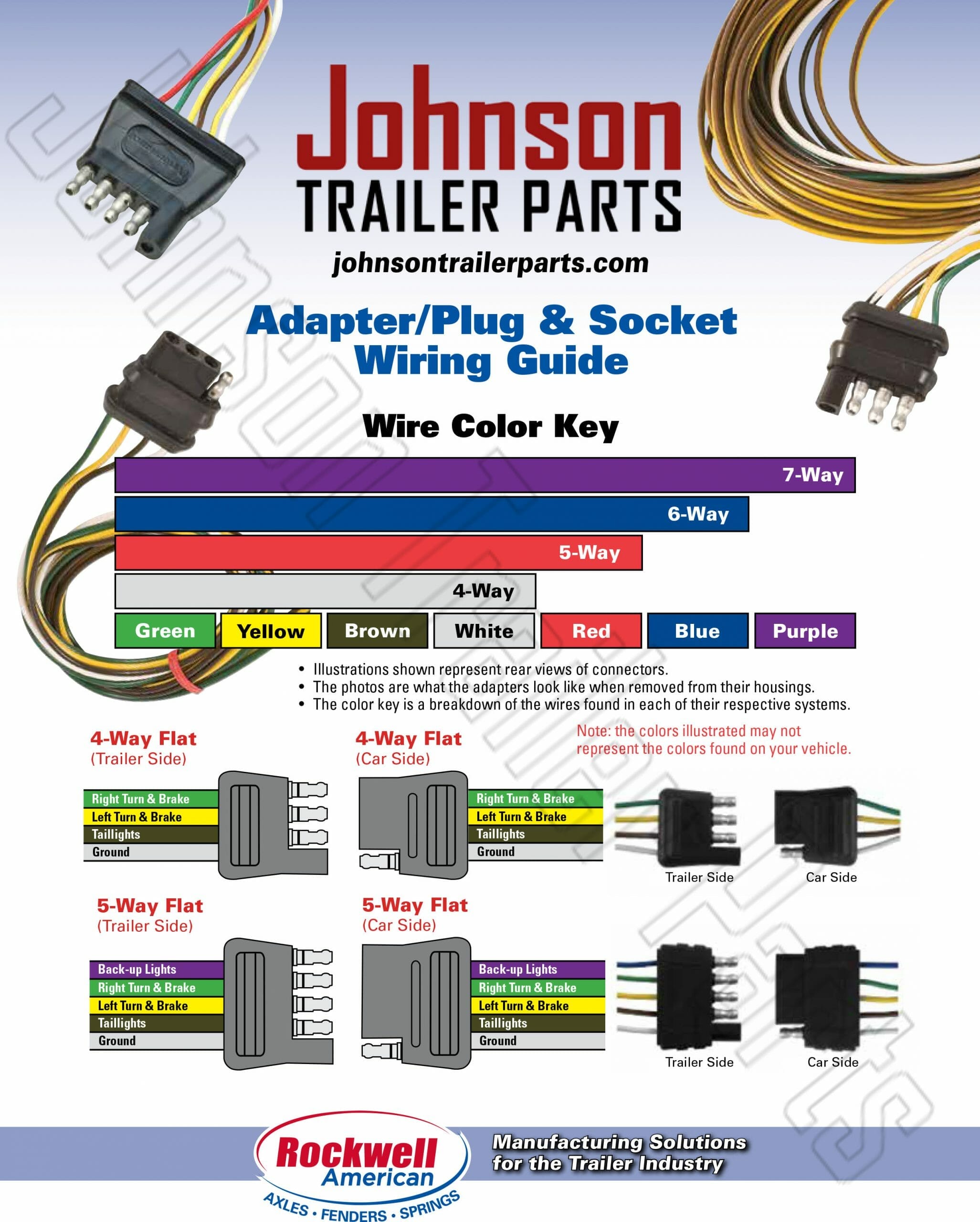

Need help with wiring a trailer? Check out our Trailer Wiring Diagrams.

• • Operation Service Manual for Rockwell American Trailer Axles
  • Trailer Suspension Diagram | Hanger Kit Spacing
  • Check out our YouTube Channel for more “How To” videos.

Important Information:

Free delivery to shipping terminal or commercial/ business location near you. Trailer Parts Kits will be delivered on a shipping pallet. Residential (UPS,FedEx, Lift Gate) deliveries Will Require an additional fee. Please contact us for more details.
