Double Hydraulic Trailer Jack Kit

*Free Shipping in the Lower 48 States – Remote Locations may Require an Addition Fee*

Lift your heavy duty trailer at the push of a button with the Double Hydraulic Trailer Jack Kit . If you need to build a trailer or replace existing jacks, these jacks are perfect for most applications. Whether you are using these jacks for livestock, horse, car, cargo, dump or even flatbed gooseneck trailers, adding these hydraulic jacks is an easy set up and easy to use.

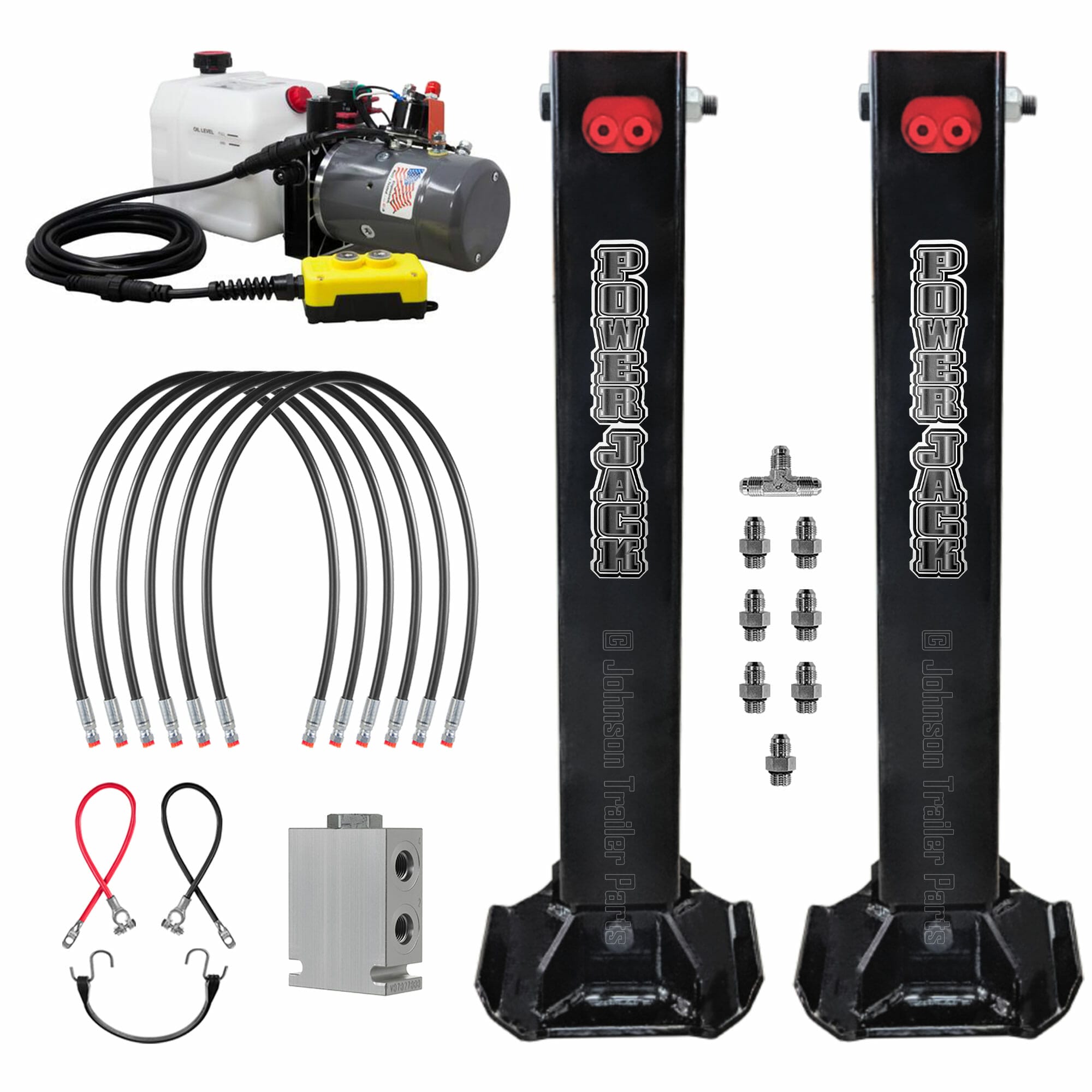

Standard Double Hydraulic Trailer Jack Kit includes:

• Hydraulic Power Unit (HPU) Double Acting Pump (Power-Up / Power-Down)
  • 3,200 psi relief setting on the extend (raising) port
  • 1,500 psi relief setting on the retract (lowering) port
• (2) 12,000 lb Trailer Jacks with 2″x 20″ Hydraulic Cylinder
• Rubber Strap
• Hydraulic Hose (to go between HPU and Jack)
• Hydraulic Fittings
• Battery Cables
• Flow Divider
• Maximum Hydraulic Flow Rate is 2 GPM
• Maximum Distance between ground and bottom of trailer frame is 8″
• Premium Kit Includes:
  • 3 Watt Solar Charger
  • Panel Mount AC Charger

Hydraulic Trailer Jack Manual

Installation Instructions: For 12 VDC, Hydraulic Power Units, Double-Acting (Power UP / Power DOWN)

Please contact us if you have any questions we can assist you with. (602) 292-9690

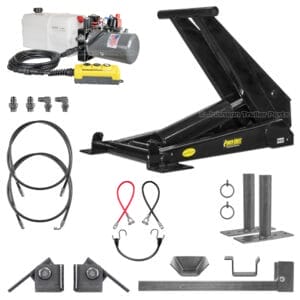

Dump Trailer With Premium Supply Hydraulic Scissor Hoist and Hydraulic Jack
